Parkside Ppks 35 B2 Circle Cutter Instruction Manual (+ PDF)

CIRCLE CUTTER
PPKS 35 B2
Operation and Safety Notes
Translation of the original instructions

Table of pictograms used
	Read the instruction manual of this product attentively and with care before use.
	Dispose of packaging properly. Do not dispose of the appliance in household waste!
	Made from recycling material.
	Important note!

Circle cutter PPKS 35 B2

Contents hide

5 Technical specifications

6 Safety instructions

7 Handling the circle cutter

8 Cleaning

9 Storage

10 Information about recycling and disposal

11 Service

12 Documents / Resources

12.1 References

13 Related Posts

Introduction

Congratulations! You have purchased one of our high-quality products. The operating instructions form part of this product. They contain important information on safety, usage, and disposal. Please familiarise yourself with all operating and safety instructions before using the product. Use the product only as described and only for the specific applications as stated. Please retain the operating instructions properly and ensure that you hand over all documentation when passing the product onto someone else.
This product must be set up or used only by people who have been trained to do so.
Any use that differs from the intended use as stated above is prohibited and potentially dangerous.
Damage or injury caused by misuse or disregarding the above warning is not covered by the warranty or any liability on the part of the manufacturer. The device is not intended for commercial use. Commercial use will void the guarantee.

KEEP OUT OF THE REACH OF CHILDREN!

Intended use

The circle cutters PPKS 35 B2 are designed for use with the PPS 40 A1 and PPS 40 B2 plasma cutters from Parkside. You can use the circle cutter to make circular cuts, the diameter of these cuts can be continuously adjusted over a range of approx. 15 cm to 60 cm. Centering can be carried out either using a magnet or metal pin (during preparation for each center punch). Please refer to the operating instructions of the plasma cutter you are using for information about material thicknesses which can be cut.

Package contents

1 circle cutter PPKS 35 B2
1 set of operating instructions
1 metal pin
1 fixing screw
1 instruction manual

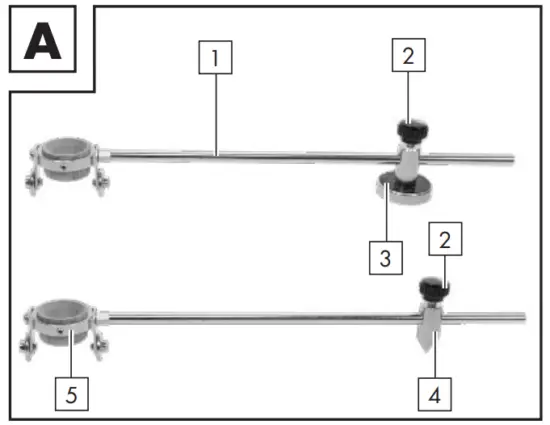

Parts description

PLEASE NOTE!
▶ After unpacking the product, please check that all of the package contents are present and that the accessory is in perfect condition. Do not use the accessory if it is defective.

1 Circle cutter
2 Centering device
3 Magnetic holder
4 Metal pin
5 Torch holder with Bakelite inner ring
6 Spacer
7 Adjusting screws

Technical specifications

Length:	35.3 cm
Width:	4.2 cm
Height:	5.4 cm
Weight:	approx. 310 g
Cut diameter:	approx. 15-60 cm

Safety instructions

KEEP OUT OF THE REACH OF CHILDREN!
Never attach the magnets to the plasma cutter itself or its housing. Before using, please read the operating instructions for the circle cutter PPKS 35 B2 and the operating instructions for the plasma cutter you are using in full.
It is essential that you observe the safety instructions of your plasma cutter!
Check the circle cutter before fitting it to the plasma cutter. Damaged components must not be used.

Handling the circle cutter

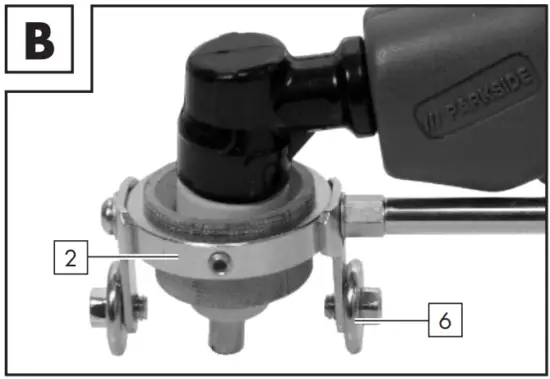

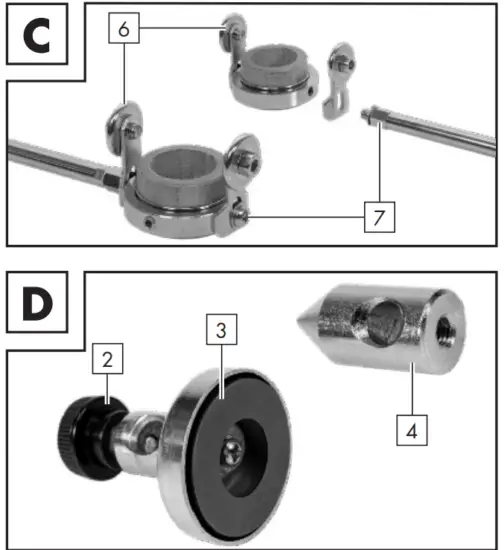

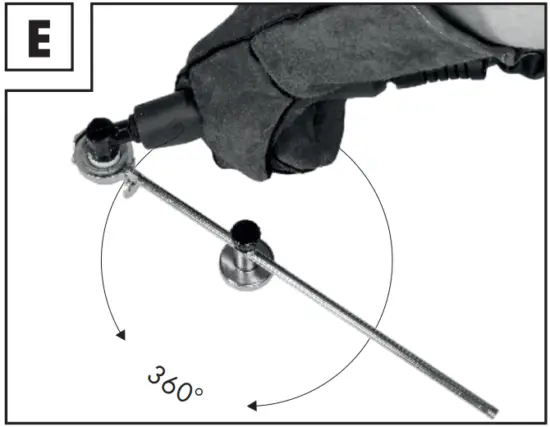

Attach the circle cutter 1 using the magnetic holder 3 or metal pin 4 (during preparation for each center punch) on to the metal surface to be processed. The plasma torch can now be positioned in the torch holder with Bakelite inner ring, as in Figure B 5. Using the adjusting screws 7 of the spacer 6 you can now set the precise gap from the plasma torch to the workpiece (Fig. C) so that the plasma torch is lying flat. Using the centering device 2 of the circle cutter 1 you can continuously adjust the radius. When setting a small radius make sure that when the plasma torch is being used, it will not be affected 2 by the centering device (Fig. E). Never attach the magnetic foot 3 to the plasma cutter itself or other electrical devices. Make sure that you do not touch the hot plasma torch by accident.
RISK OF BURNS!

Cleaning

Clean the product with a soft moistened cloth.
Do not use any aggressive or abrasive detergents.

Storage

Keep the device in a dry location and out of the reach of children.

Information about recycling and disposal

Please return this device, accessories, and packaging to your local recycling depot.

Service

Note: You can download this handbook and many more, as well as product videos and software at www.lidl-service.com.
With this QR code, you can gain immediate access to the Lidl Service page (www.lidl-service.com) and you can open your Operating Instructions by entering the article number (IAN) 356278.
