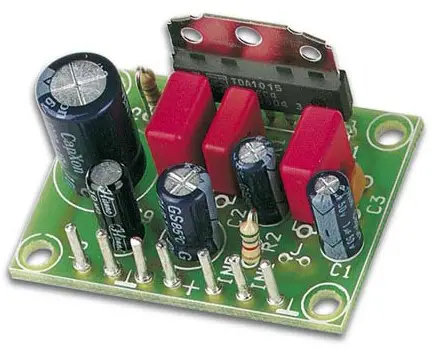

velleman K2637 Super Mini 2.5W Audio Power Amplifier
Specifications
- Max. output power : 2.5W (4Ω /12V)
- Frequency response : 60Hz – 15KHz
- Input sensitivity : 20-150mV selectable þ Thermal and short circuit protection
- Power supply : 4.5 – 15VDC /400mA
- Quiescent current : 12mA
- Dimensions : 42x32mm (1.65”x1.25”)
modifications reserved
Applications
- mall but powerful multi-purpose amplifier
- For use with portable audio equipment
- Power amplifier for audio projects
- In-car use
- Your own unique application

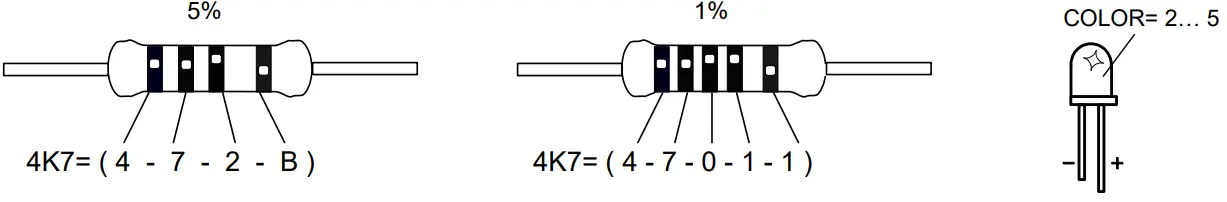

COLOUR CODE
| I | P | E | SF | S | DK | N | D | GB | F | NL | ||
| C O D E
0 | CODICE COLORE | CODIGO DE CORES | CODIGO DE COL- ORES | VÄRI KOODI | FÄRG SCHEMA | FARVE KODE | FARGE KODE | FARB KODE | COLOUR CODE | CODIFI- CATION DES COU- LEURS | KLEUR KODE | C O D E |
| Nero | Preto | Negro | Musta | Svart | Sort | Sort | Schwarz | Black | Noir | Zwart | 0 | |
| 1 | Marrone | Castanho | Marrón | Ruskea | Brun | Brun | Brun | Braun | Brown | Brun | Bruin | 1 |
| 2 | Rosso | Encarnado | Rojo | Punainen | Röd | Rød | Rød | Rot | Red | Rouge | Rood | 2 |
| 3 | Aranciato Laranja | Naranjado Oranssi | Orange | Orange | Orange | Orange | Orange Orange Oranje 3 | |||||
| 4 | Giallo | Amarelo | Amarillo | Keltainen | Gul | Gul | Gul | Gelb | Yellow | Jaune | Geel | 4 |
| 5 | Verde | Verde | Verde | Vihreä | Grön | Grøn | Grønn | Grün | Green | Vert | Groen | 5 |
| 6 | Blu | Azul | Azul | Sininen | Blå | Blå | Blå | Blau | Blue | Blue | Blauw | 6 |
| 7 | Viola | Violeta | Morado | Purppura | Lila | Violet | Violet | Violet | Purple | Violet | Paars | 7 |
| 8 | Grigio | Cinzento | Gris | Harmaa | Grå | Grå | Grå | Grau | Grey | Gris | Grijs | 8 |
| 9 | Bianco | Branco | Blanco | Valkoinen | Vit | Hvid | Hvidt | Weiss | White | Blanc | Wit | 9 |
| A | Argento | Prateado | Plata | Hopea | Silver | Sølv | Sølv | Silber | Silver | Argent | Zilver | A |
| B | Oro | Dourado | Oro | Kulta | Guld | Guld | Guldl | Gold | Gold | Or | Goud | B |
Assembly
(Skipping this can lead to troubles ! )
Ok, so we have your attention. These hints will help you to make this project successful. Read them carefully.
Make sure you have the right tools:

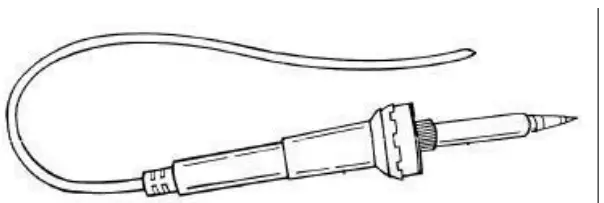

- A good quality soldering iron (25-40W) with a small tip.
- Wipe it often on a wet sponge or cloth, to keep it clean; then apply solder to the tip, to give it a wet look. This is called ‘thinning’ and will protect the tip, and enables you to make good connections. When sol-der rolls off the tip, it needs cleaning.

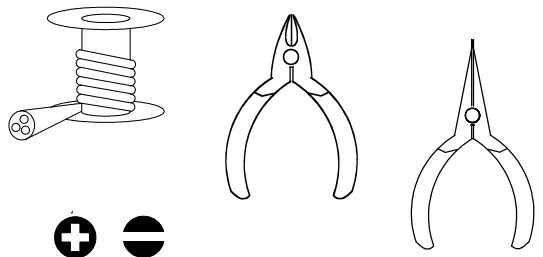

- Thin raisin-core solder. Do not use any flux or grease.
- A diagonal cutter to trim excess wires. To avoid injury when cutting excess leads, hold the lead so they can- not fly towards the eyes.
- Needle nose pliers, for bending leads, or to hold components in place.
- Small blade and phillips screwdrivers. A basic range is fine.
For some projects, a basic multi-meter is required, or might be handy
Assembly Hints
- Make sure the skill level matches your experience, to avoid disappointments.
- Follow the instructions carefully. Read and understand the entire step before you perform each operation.
- Perform the assembly in the correct order as stated in this manual

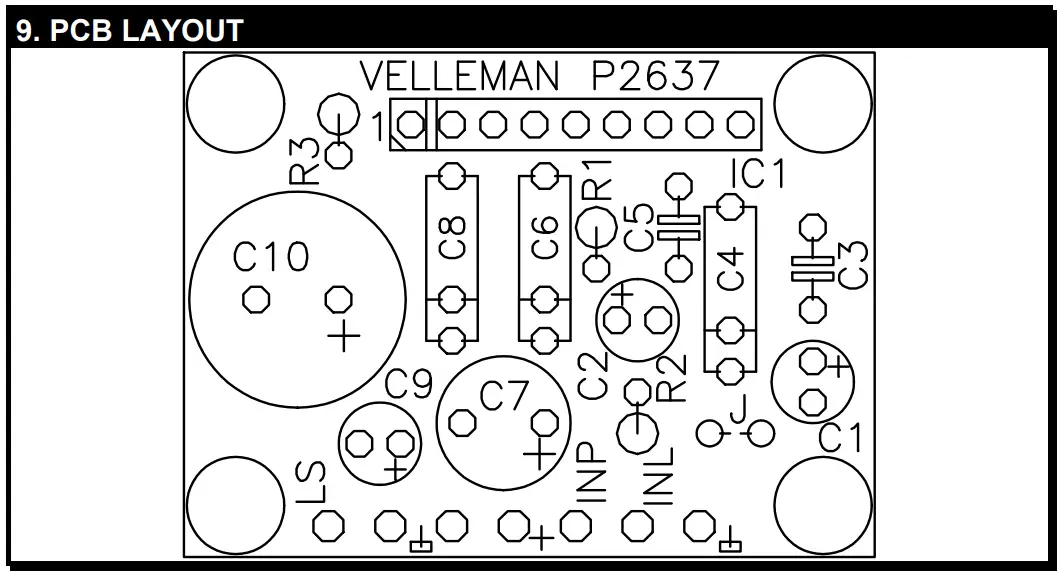

- Position all parts on the PCB (Printed Circuit Board) as shown on the drawings.

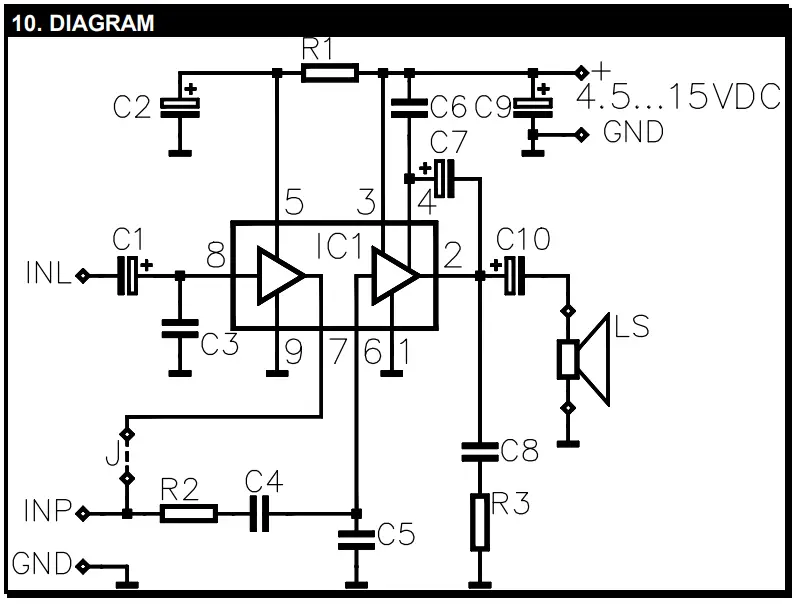

- Values on the circuit diagram are subject to changes.
- Values in this assembly guide are correct*
- Use the check-boxes to mark your progress.
- Please read the included information on safety and customer service
Typographical inaccuracies excluded. Always look for possible last minute manual updates, indicated as ‘NOTE’ on a separate leaflet.

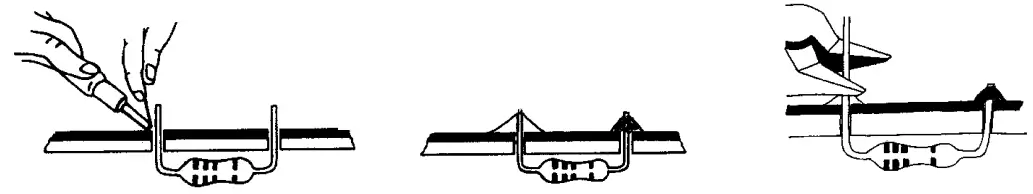

Soldering Hints
- Mount the component against the PCB surface and carefully solder the leads
- Make sure the solder joints are cone-shaped and shiny
- Trim excess leads as close as possible to the solder joint

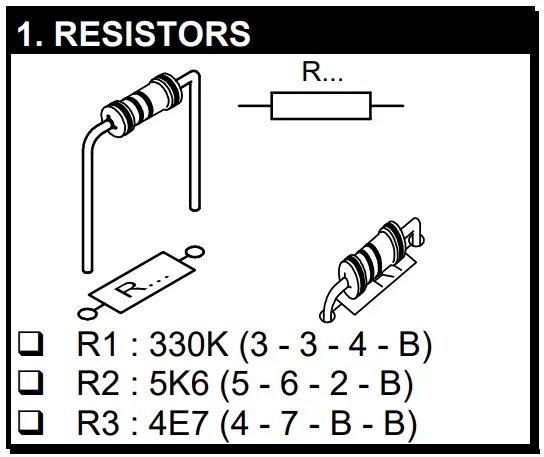

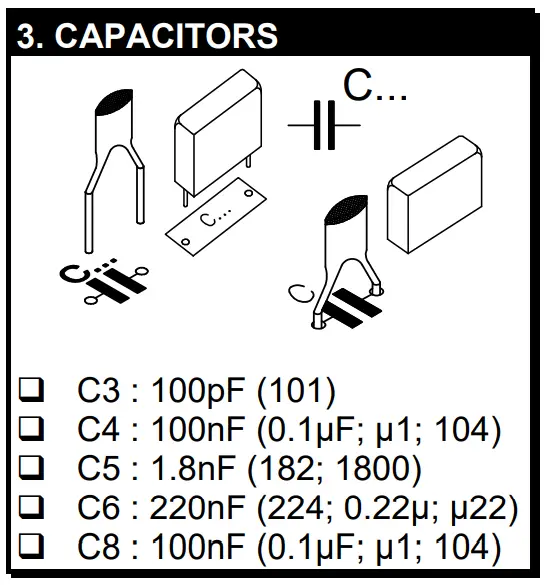

PART LIST
