artsound PRL-1502 2-4 Channel Power Amplifier
OPERATING MANUAL
Thank you for purchasing our PRL power amplifier. We hope you will enjoy many years of listening to it. Please read these instructions carefully and keep this manual for future reference. Please visit our website for updates to this manual: www.artsound.be
WARNINGS AND SAFETY
- To prevent fire or electric shock, do not expose this device to rain or moisture.
- Do not repair any parts inside the unit, but leave all repairs to qualified service personnel.
- As long as the mains cable of the machine is connected to a wall socket, the machine is live, even if the machine is switched off.
- Do not operate the device for a long time if the sound is distorted.
- Do not block the ventilation openings of the device.
BOX CONTENTS
- 1 x PRL power amplifier
- 1 x power cable
- 1 x operating manual

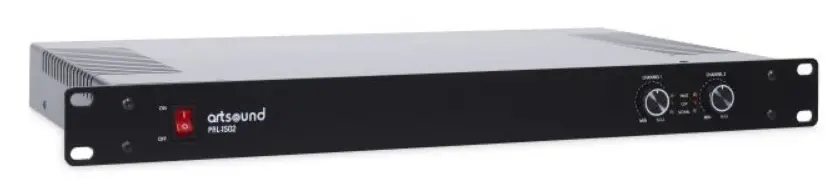

DESCRIPTION
The PRL power amplifier is a professional multi-channel amplifier in an extremely compact 19″ 1U housing. High efficiency Class D amplification guarantees high power, low distortion coupled with very low heat and quiet operation. Manufactured in Europe, with the highest quality components.
GENERAL INFORMATION & FEATURES

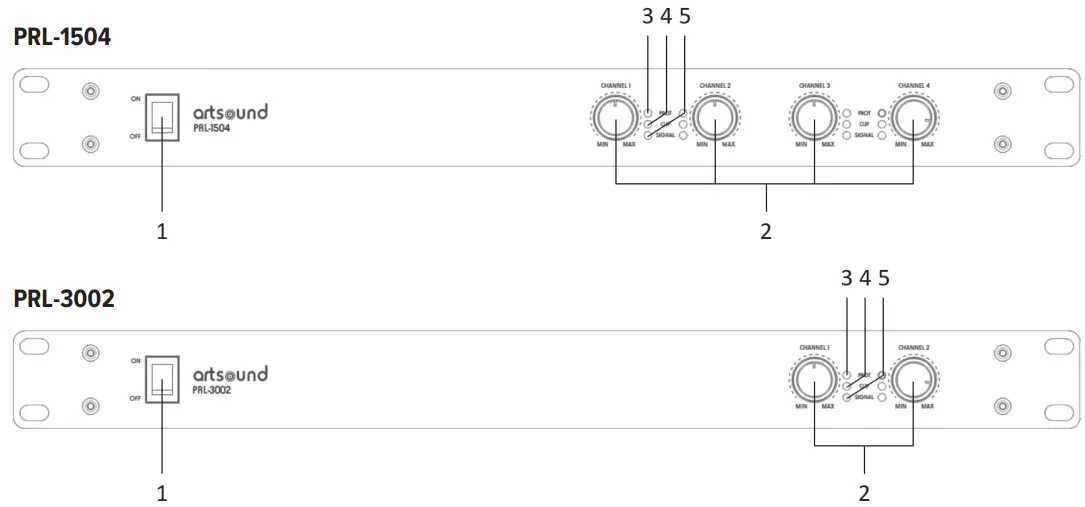

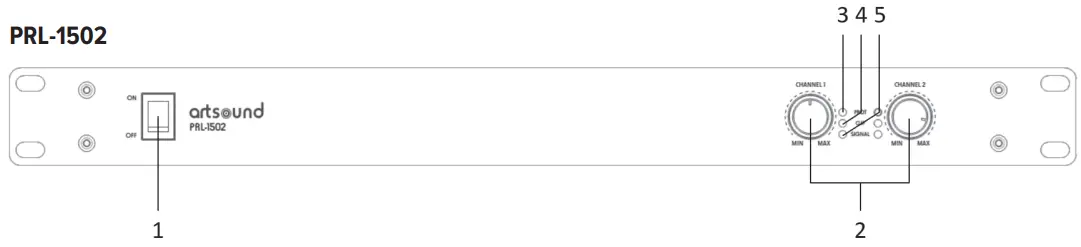

FRONT PANEL
- ON/OFF button with LED
- Volume controls
- Security indicator
- Clip indicator
- Signal indicator

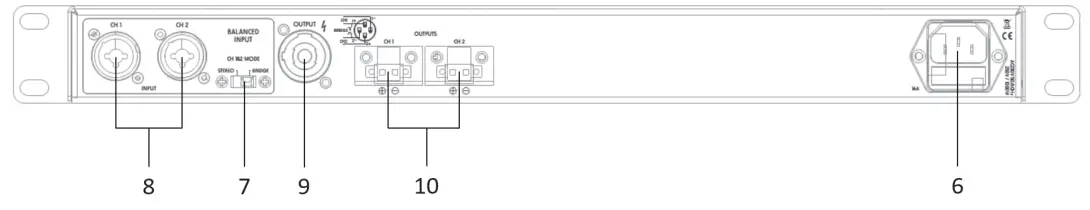

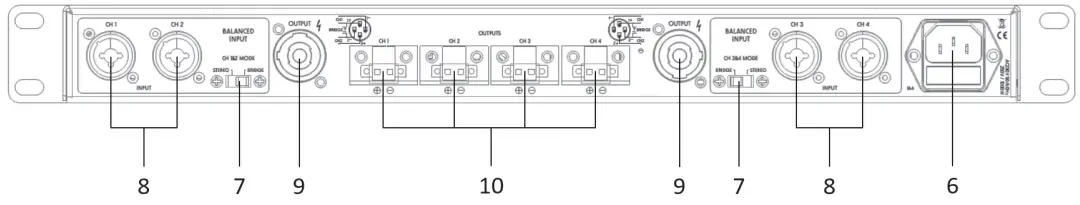

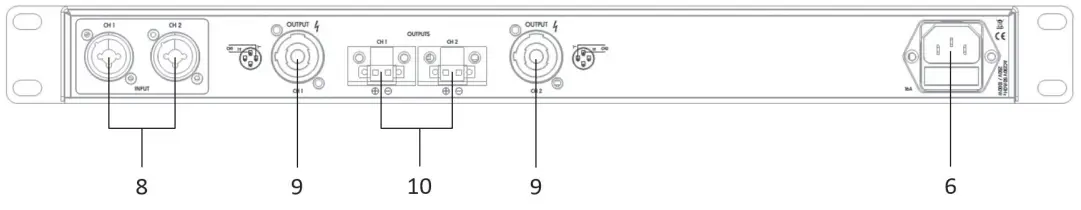

REAR PANEL
PRL-1502
PRL-1504
PRL-3002
6. Power supply
7. Bridge / Stereo switch
8. XLR/jack combo inputs
9. Speakon speaker outputs
10. Euroblock speaker outputs
TECHNICAL SPECIFICATIONS
| Type | PRL-1502 | PRL-1504 | PRL-3002 |
| capacity | 2 x 150W (4Ω) / 2 x 75W (8Ω) | 4 x 150W (4Ω) / 2 x 75W (8 Ω) | 2 x 300W (8Ω) |
| 300W (bridge) | 2 x 300 W (bridge) | ||
| frequency range | 10Hz – 30kHz | ||
| input output
| 2 x combo XLR/jack 2 x 2-pin euroblock 2 x speakon | 4 x combo XLR/jack 4 x 2-pin euroblock 2 x speakon | 2 x combo XLR/jack 2 x 2-pin euroblock 2 x speakon |
| signal indicator | yes | ||
| clip/protection indicator | yes | ||
| safety | overvoltage, short-circuit, thermal | ||
| power supply | 100-240V AC @ 50-60Hz | ||
| dimentions (h x w x d) | 44,5 x 483 x 275mm – 19”/1U | ||
| weight | 4,2kg | ||
WARRANTY CONDITIONS
2 year warranty from date of purchase. The warranty is limited to the repair of replacement of the defective material insofar as this defect is a result of normal use and the device has not been damaged. Artsound is not responsible for any other costs that ensue as a result of the defect (e.g. transport). For details, please consult our general terms and conditions of sale.
This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment.For further information, please contact your local or regional authorities.
I, House Of Music NV, hereby declare that the type of radio equipment ARTSOUND complies with Directive 2014/53/EU. The full text of the EU Declaration of Conformity can be found at the following internet address: http://www.artsound.be/en/support/downloads
Disclaimer: All trademarks are the property of their respective owners. All specifications and information are subject to change without further notice. Slight variations and differences might appear between printed photos and actual product due to product enhancement.
