NEON Indoor Open Signs Connecting Instructions

NEON Indoor Open Signs Connecting



FIG 1 Overview



SAFETY INSTRUCTIONS

Please carefully study the instruction manual and information below before installing or using this product. Please keep this user manual for further reference.

  1. This LED neon sign is intended for indoor application only. Do not use in damp or wet locations. Do not install it in an area that will exceed 120°F (49°C).
  2. This LED neon sign works only with low voltage 12V DC. Please always use the attached power adapter to power up the sign. Do not connect the sign directly to the line voltage. If in any doubt, please consult a local electrician.
  3. Disconnect power before handling or cleaning. Maintenance of the luminaires is limited to their surfaces. During maintenance, no moisture can come into contact with any areas of the terminal connections or voltage control parts.
  4. Clean with a soft, dry cloth. Do not use solvents or chemicals. Avoid dampness on all electrical components.

WWW.HINEON.COM

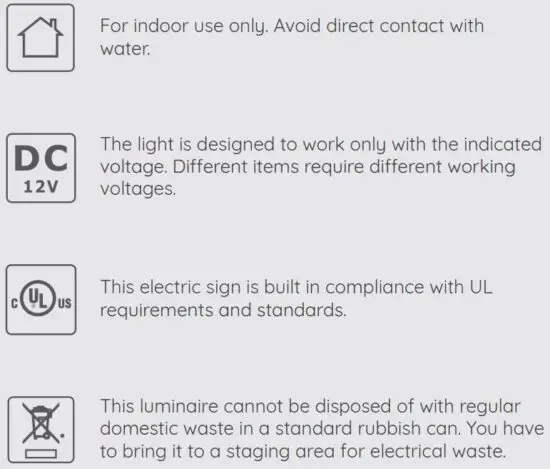

FIG 2 SAFETY INSTRUCTIONS



INSTALLATION

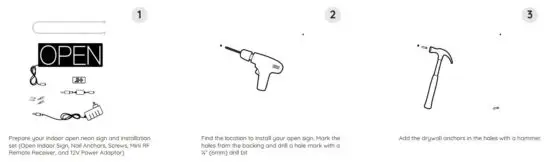

FIG 3 INSTALLATION

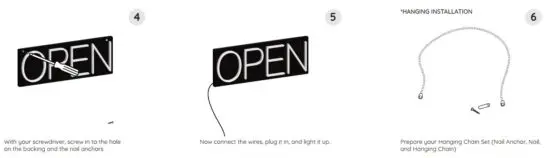

FIG 4 INSTALLATION

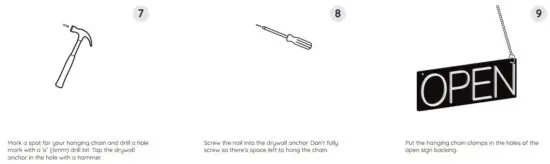

FIG 5 INSTALLATION

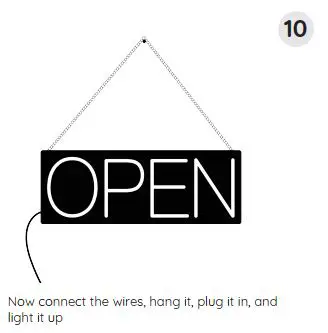

FIG 6 INSTALLATION

NEED MORE ASSISTANCE?
Call: +1 833 768 7999
Email : [email protected]
Visit: www.hineon.com/faq/

FIG 7 SCAN TO VISIT FAQ PAGE
