Hineon Outdoor Neon Sign User Manual (+ PDF)

USER MANUAL
HOW TO CONNECT AN
OUTDOOR NEON SIGN

Contents hide

SAFETY INSTRUCTIONS

Please carefully study the instruction manual and information below before installing or using this product. Please keep this user manual for further reference.

This LED neon sign is IP65 rated for outdoor application. It must not be installed during rain. Do not install it in an area that will exceed 49°C (120°F) or below -25°C (-13°F).
This LED neon sign works only with low voltage 12V DC. Please always use the attached waterproof LED driver to power up the sign. Do not connect the sign directly to the line voltage. If in any doubt, please consult a local electrician.
Disconnect power before handling or cleaning. Clean with a soft, dry cloth. Do not use solvents or chemicals.

	IP65 is suitable for general outdoor application. It can not stand extreme weather such as ﬂooding.
	The light is designed to work only with the indicated voltage. Different items require different working voltages.
	This electric sign is built in compliance with UL requirements and standards.
	This luminaire cannot be disposed of with regular domestic waste in a standard rubbish can. You have to bring it to a staging area for electrical waste.

INSTALLATION

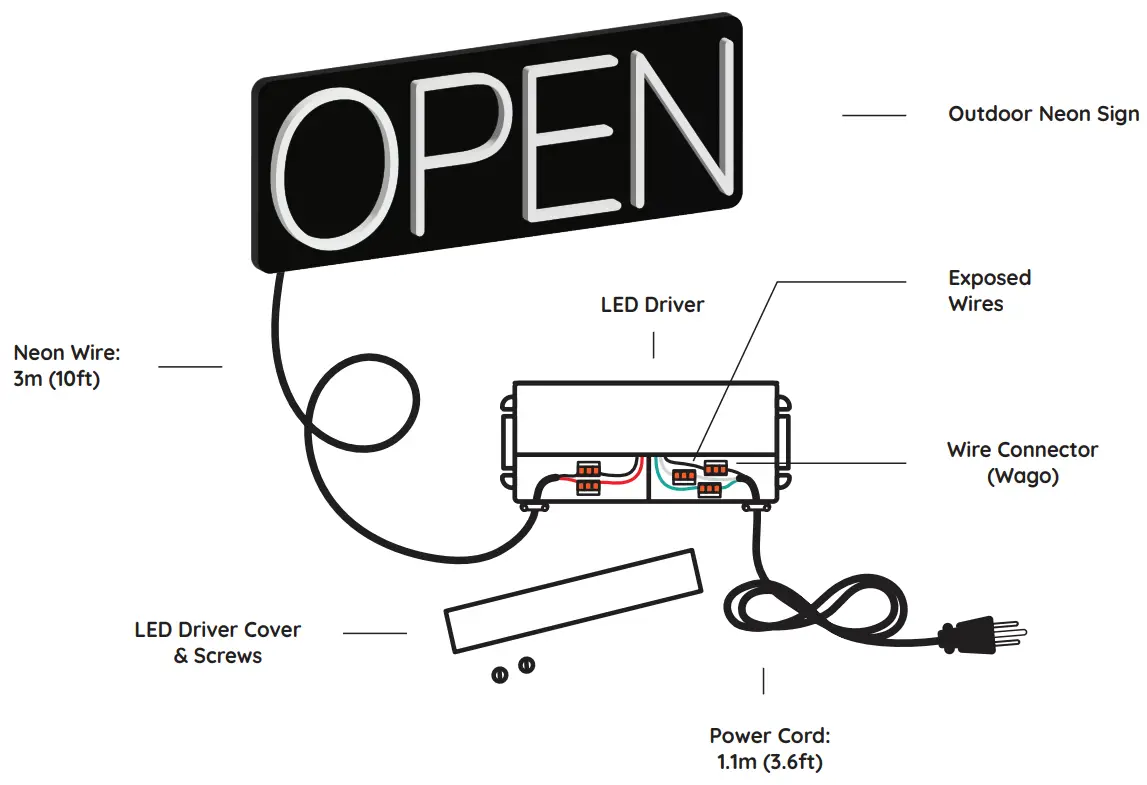

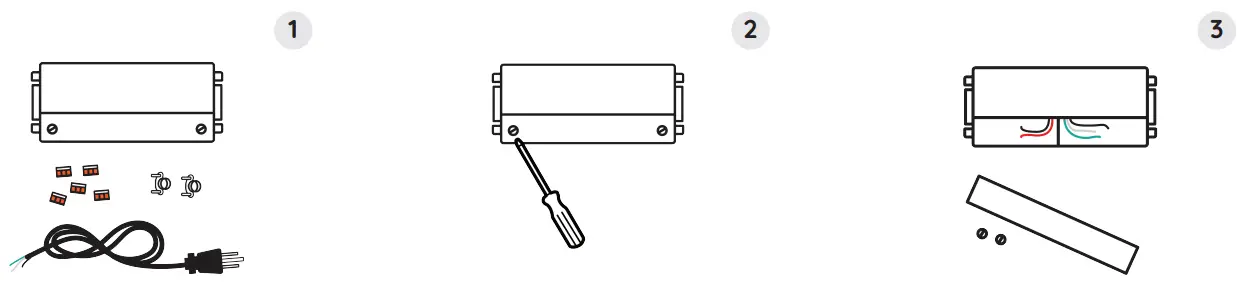

Prepare your LED Driver Set; (LED Driver, Wire (Wago) Connectors, Screws (Clamp Connectors), and the Power Cord	Unscrew the cover from the LED driver using the screwdriver	Remove the cover and set it aside together with the screw.

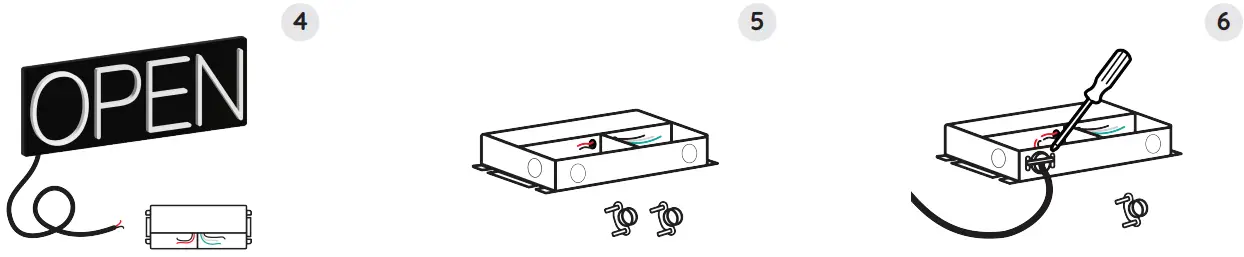

Check the LED driver to where your wires should go by checking the colors.	Decide where you will be placing your LED driver then punch a hole in each side of the LED driver	Install the clamp connectors to where you punched the holes.

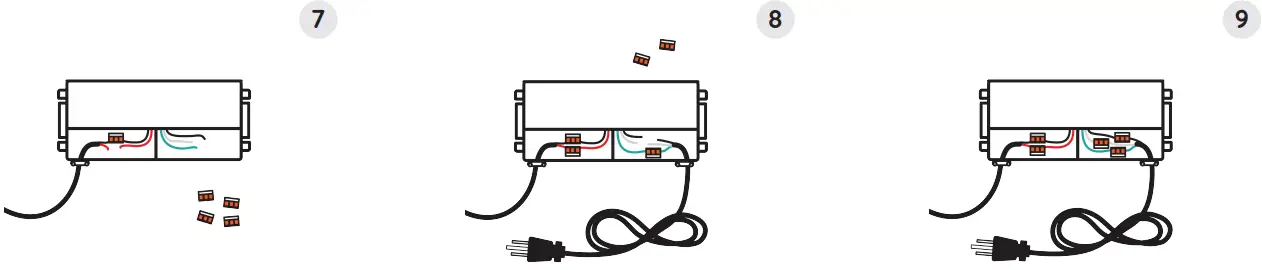

Connect all negative wires (black) into one wago (wire) connector while all positive wires (red) into another wago connector.	Finish the same process with the power chord on the line voltage input side.	Finally, place the cover and you are ready to hang or install your sign.
