Levition Evr-green Evr30 Charging Station User Guide

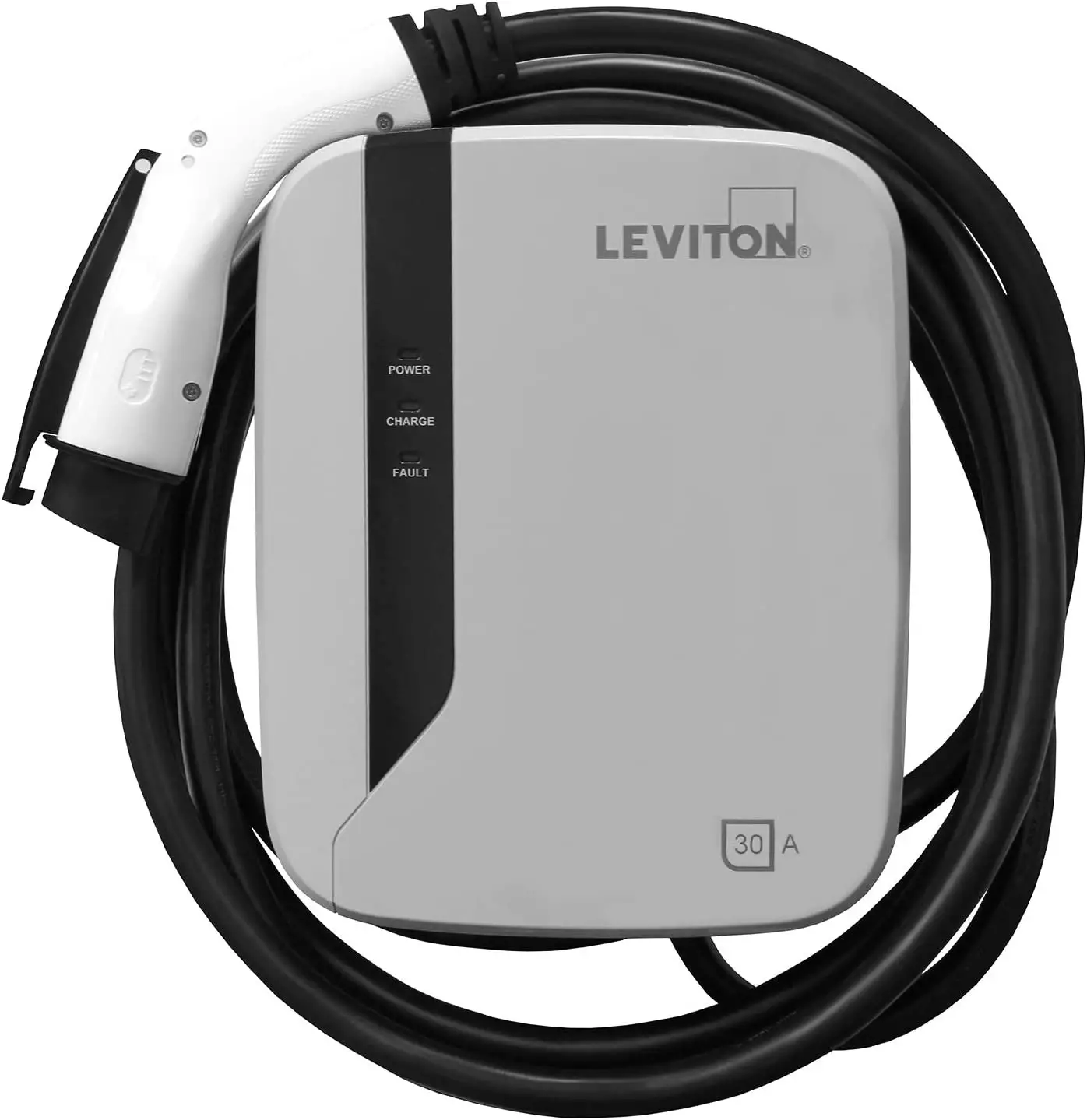

LEVITION evr-green EVR30 Charging Station User Guide

ADVICE FOR END-USERS OR CERTIFIED ELECTRICIANS

• Is the car fully charged?
  If the car’s battery is full, the charger will not engage into charge mode.
• Check car’s maximum state of charge (SOC) settings.
  The car will stop charging at the pre-set SOC.
• Does the car have its on-board timer set?
  If the car’s on-board timer is activated, the charger will not function unless it is plugged in at the time that the timer is set to charge.
• Verify the charging connector is fully inserted in the EV charging inlet and you hear an audible click.
• Inspect the cable and the coupler for any physical damage that may be affecting power supply.
• Does the car FULLY charge from empty to full on the Level 1 charger that came with your vehicle, or another Level 2 charger?
  If yes, then further investigation may be required by a certified electrician.
• Is the charger on a dedicated breaker with no other load on it?
  If not, all additional loads must be removed per NEC and may be causing current drops.
• If you have any high power appliances in the area (e.g., a Washer/ Dryer, Welding Machine, Hot Tub, etc.), shut them down and then test the EV charger. If charger then works, verify with a certified electrician that charger was installed on a dedicated 40 A circuit (for EVR30) or 50 A circuit (for EVR40). If not, they may have to take additional action to rectify.
• If you have experienced any power outages recently, the utility may be sending inconsistent power causing the charger to not function. If this is the case, please call and speak with your utility company

ADVICE FOR CERTIFIED ELECTRICIANS ONLY

• Shut the power off to the unit (the button is located on the left side of the unit) and shut the breaker off for five minutes. The fault light may clear when you re-energize your unit.
• If the fault light does not clear, check the voltage on each leg. Each leg should be producing 120 V.
  If the voltage does not equal 120 V, the charger will not function.
• Verify the circuit breaker is properly torqued based on the manufacturer’s specifications, as well as making proper contact. Verify the breaker size (EVR30 – 40 A Breaker, EVR40 – 50 A Breaker), and that it is on a dedicated circuit.
• Power cycle first then check proper grounding of the circuit.

PLEASE NOTE:
Chargers must be installed by a certified electrician in order to qualify for the manufacturer warranty.
The warranty is automatically voided for chargers not installed by a certified electrician.
