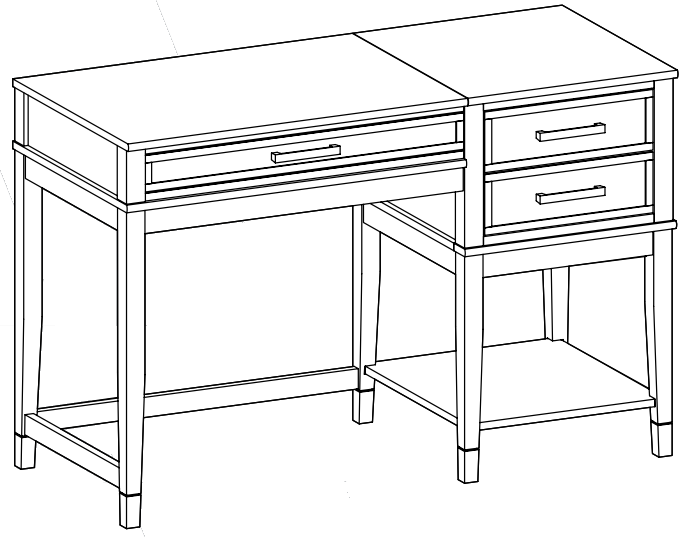

Cosmoliving 810589031 Westerleigh Black Lift Top Desk Instruction Manual (+ PDF)

Do Not Return This Product!
Contact our customer service team for help first
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am – 5pm CST
Visit: www.ameriwoodhome.com

WARNING

Unit can tip over causing severe injury or death.
Anchor unit to stud in wall (if instructed to)
Do not allow children climb on unit
Put heavy items on lower shelves or drawers

Follow Ameriwood Home

Contact Us!

Do NOT return this product!
Contact our friendly customer service team first for help

Visitameriwoodhome.com

Helpful Hints

PEOPLE NEEDED FOR ASSEMBLY: 1-2
ESTIMATED ASSEMBLY TIME: 15 MINUTES

Open your item in the area you plan to keep it for less heavy lifting
Identify, sort and count the parts before attempting assembly
Compression dowels are tapped in with a hammer
Slides are labeled with a R (right) and L (left) for proper placement
Make sure to always face the point on the top of the Cam Lock towards the outer edge
Use all the nails provided for the back panel and spread them out equally
Back Panel must be used to make sure your unit is sturdy
Do NOT use harsh chemicals or abrasive cleaners on this item
Never push, pull, or drag your furniture

Before You Start

✓ Read through each step carefully and follow the proper order
✓ Separate and count all your parts and hardware
✓ Give yourself enough room for the assembly process

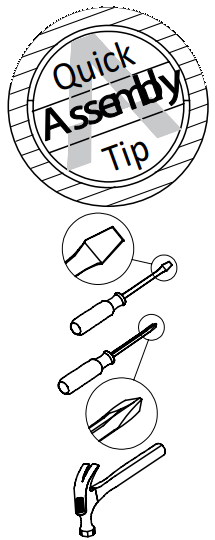

✓ Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer
✓ Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight. Failure to do so may result in stripping the screw.

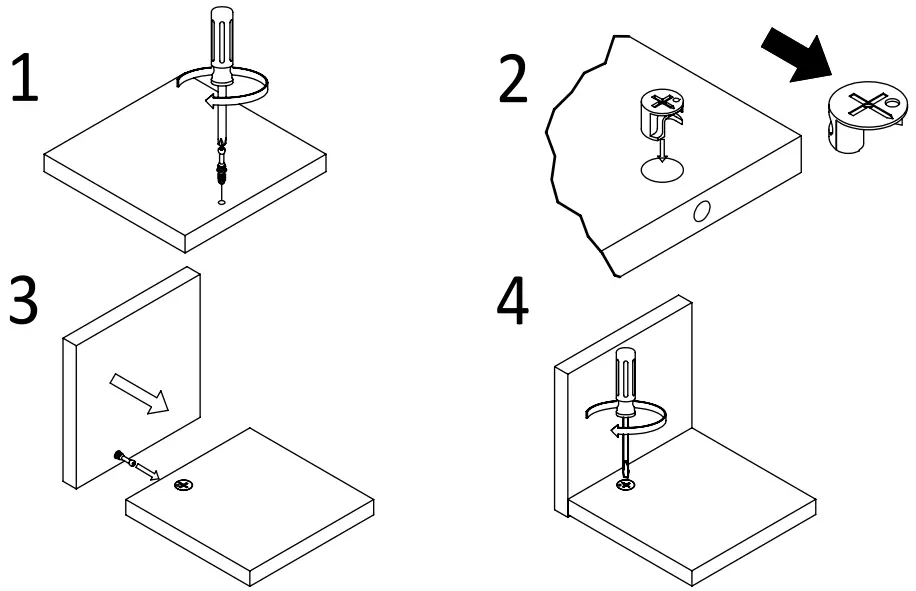

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

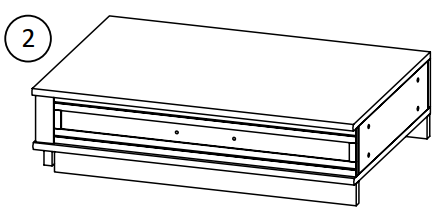

Board Identification

Not actual size

x1
T5228872010UD RIGHT PRE-ASSEMBLE BODY
x1
T5228872020UD LEFT PRE-ASSEMBLE BODY
x1
T5228872030UD SHORTER LEG WITH HOLE
x3
T5228872040UD SHORTER LEG
x3
T5228872050UD SHELF
x1
T5228872060UD BACK LONGER LEG
x1
T5228872070UD FRONT LONGER LEG
x1
T5228872080UD BACK STRETCHER
x1
T5228872090UD SIDE STRETCHER

Part List

Not Actual Size

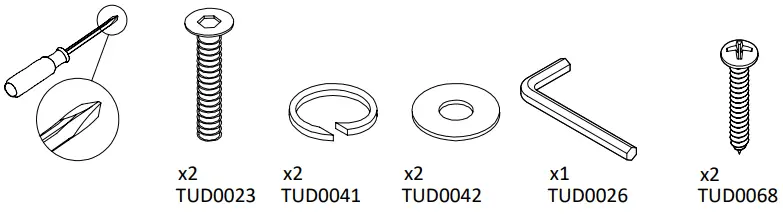

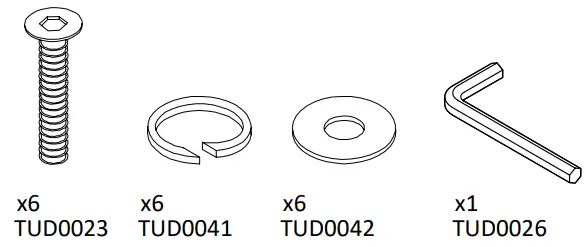

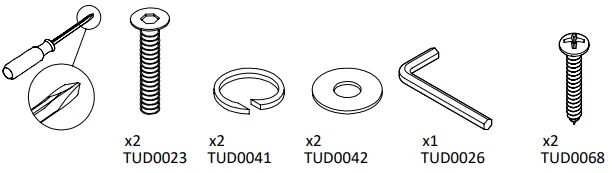

x12 TUD0023 JCBC Screw 6 X 70
x16 TUD0041 SPRING WASHER
x16 TUD0042 FLAT WASHER
x1 TUD0026 ALLEN KEY M4
x6 TUD0033 PH SCREW M4 X 20
x3 TUD0044 RECTANGLE HANDLE (GOLD)

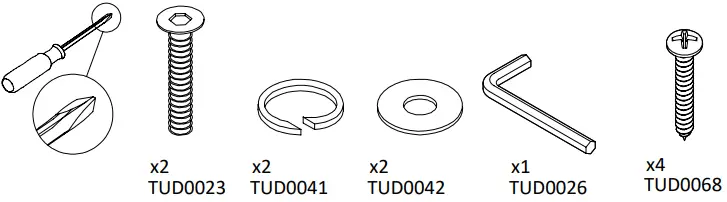

x8 TUD0068 PH SCREW M4 X 30

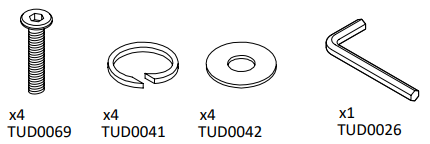

x4 TUD0069 JCBC Screw 6 X 35
x4 TUD0004 DOWEL 8 X 25

Assembly Instructions

Step 1

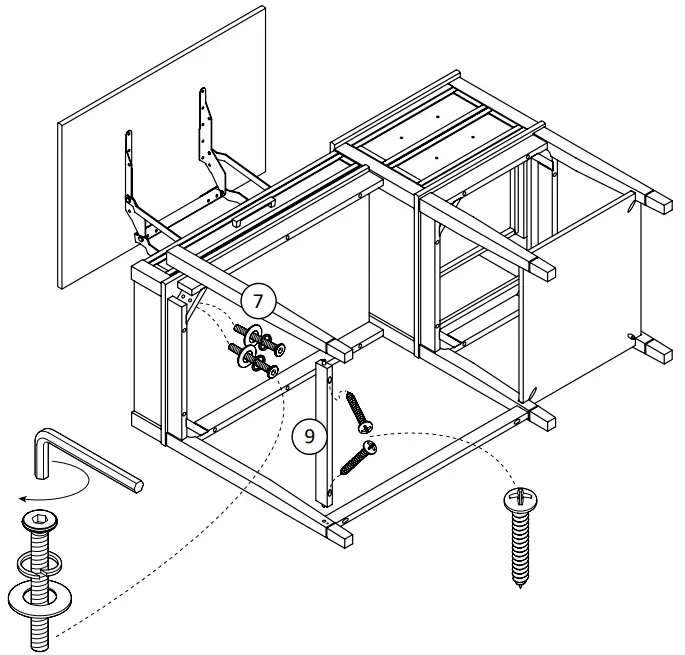

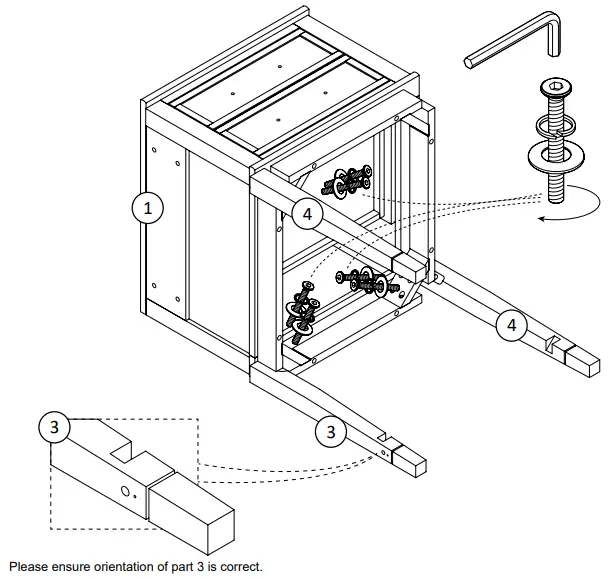

Fix the leg by attach bolt & washer as shown. Do not fully tighten all the bolts. Please keep ALLEN KEY properly for future use.

Step 2

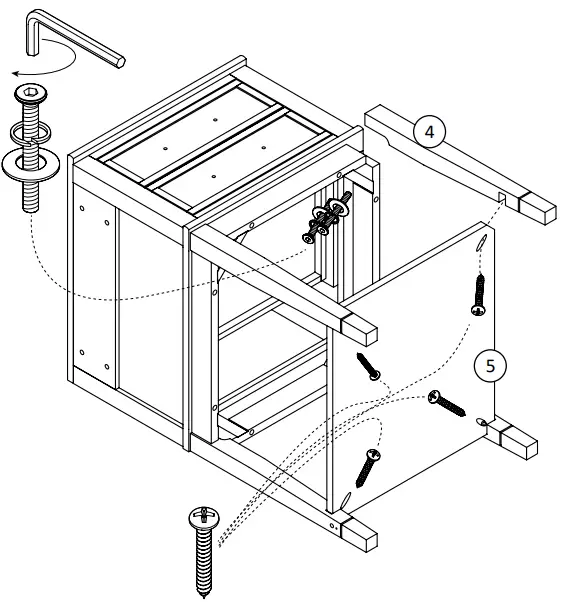

Please attach the shelf first before attach the other leg. Fix with hardware as shown.
Please ensure to fully tighten all the bolts.

Step 3

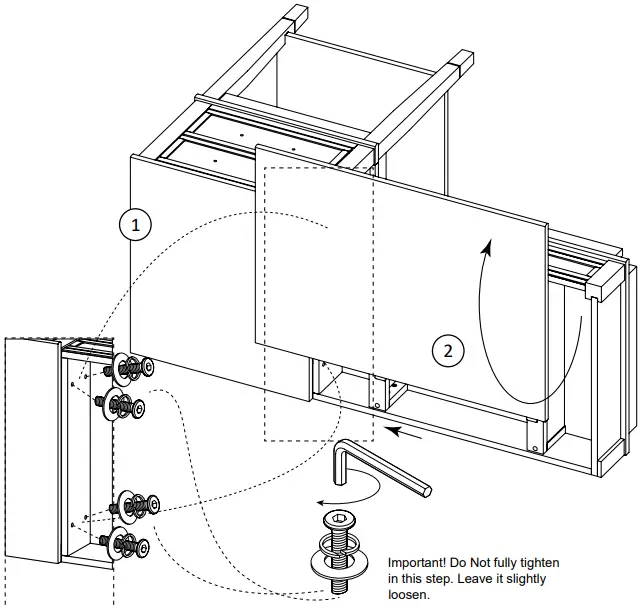

Please attach the right pre-assemble body to the left pre-assemble body.
Connect both body using JCBS screw, do not fully tighten in this step.

Step 4

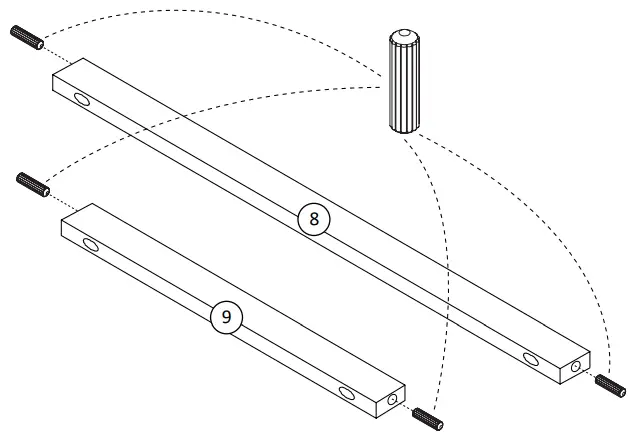

Attach the dowel as shown.

Step 5

Step 6

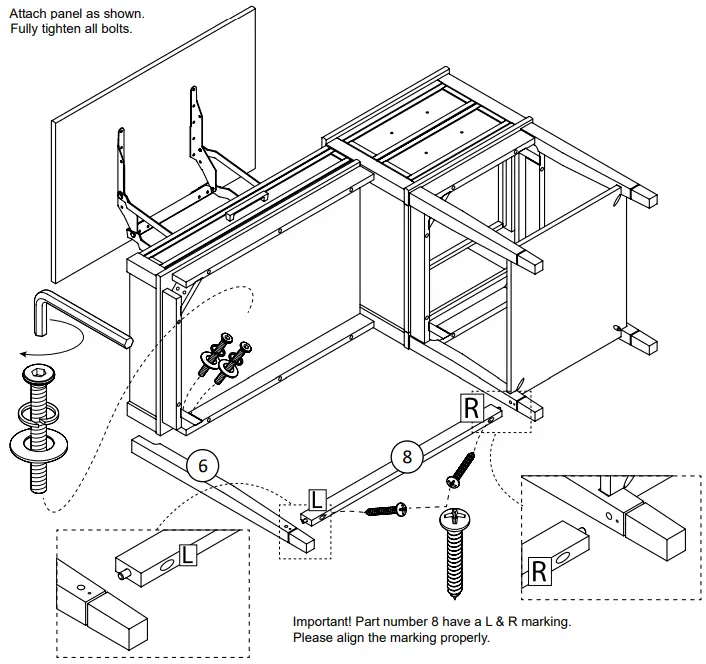

Attach panel as shown. Fully tighten all bolts.

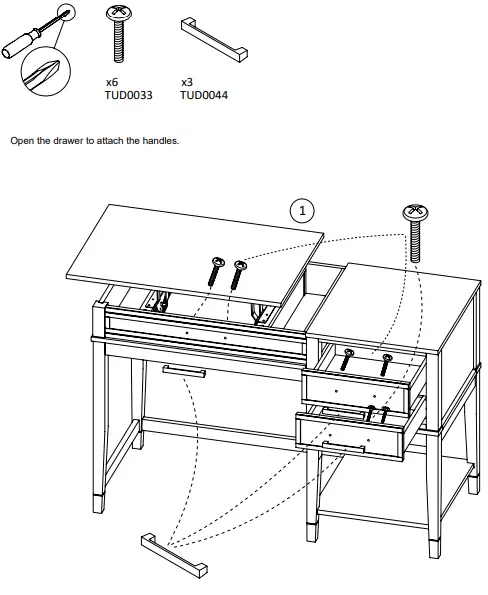

Step 7

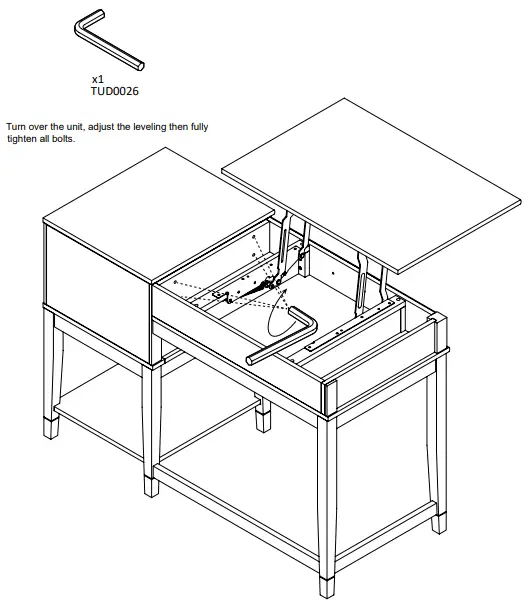

Step 8

Maximum Loads

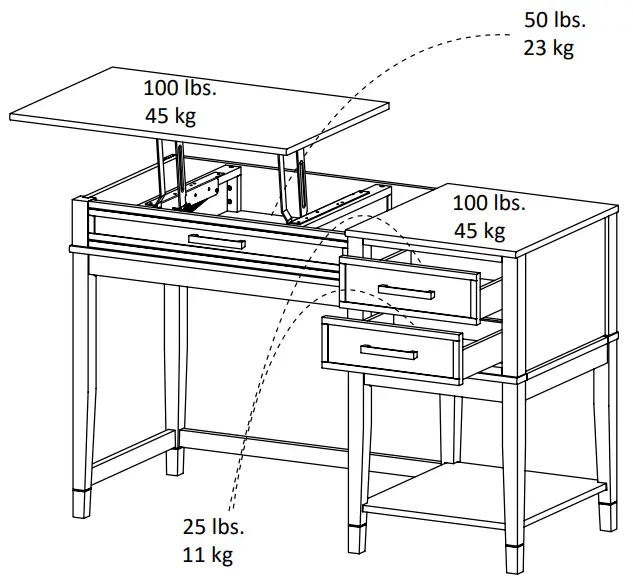

This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury.

Warning: Risk of serious injury to person – do not place a television on this furniture. This furniture is not approved for use with a television.

Certificate of Conformity

This certificate applies to Dorel Home Furnishings, Inc. product identified by this instruction manual.
This certificate applies to compliance of this product with the CPSC Ban on Lead-Containing Paint ( 16 CFR 1303).
This product is distributed by:
Dorel Home Furnishings, Inc. 410 East First Street South, Wright City, MO 63390 636-745-3351
Site of Manufacturer: Muar, Malaysia.
See front page of instruction manual for date of manufacturer.

Register your product to receive the following:

* New trend details -sneak peek on what’s new
* Surveys -have a voice within our community
* Exclusive deals and discount codes
* Quick and easy replacement part service

To register your product, visit Ameriwoodhome.com

Visit your local retailer’s website, rate your purchased product and leave us some feedback!

We would like to extend a big “Thank You” to all of our customers for taking the time to assemble this Amberwood Home product, and to give us your valuable feedback

THANK YOU for your business.

Your feedback and 5-star review is important to us!

If you are happy with this product, please review on the site you purchased it from.

If your product has issues, please contact us so that we can fix them.

Please note, we do not have control over how shipping carriers treat our products and could cause damage to your order.
If your product is damaged, please contact us for help.

1-800-489-3351 • [email protected]
Customer Service Hours: 9am – 5pm Central Time {CST)
Monday through Friday
