21281 Lift Top Coffee Table
Instruction Manual
Assembly Instruction
Furinno Lift Top Coffee Table.
MODEL : 21281
HARDWARE & PARTS LIST
| NO | HARDWARE LIST | QTY |
| 1 | MINIFIX  | 18pcs |
| 2 | WOOD DOWEL  | 24pcs |
| 3 | POZIHEAD SCREW  | 2pcs |
| 4 | PWA C/B SCREW  | 8pcs |
| 5 | L BRACKET  | 4pcs |
| 6 | LIFT TOP BRACKET | 1sets |
| 7 | TRUS HEAD SCREW  | 18pcs |
| 8 | RUBBER PAD  | 4pcs |
| NO | PART LIST | QTY |
| A | LIFT TOP | 1pc |
| B | LEFT SIDE PANEL | 1pc |
| C | RIGHT SIDE PANEL | 1pc |
| D | KICK PANEL | 2pcs |
| E | PARTITION PANEL | 1pc |
| F | BOTTOM PANEL | 1pc |
| G | COVER PANEL | 2pcs |
| H | FIXED SHELF PANEL | 1pc |

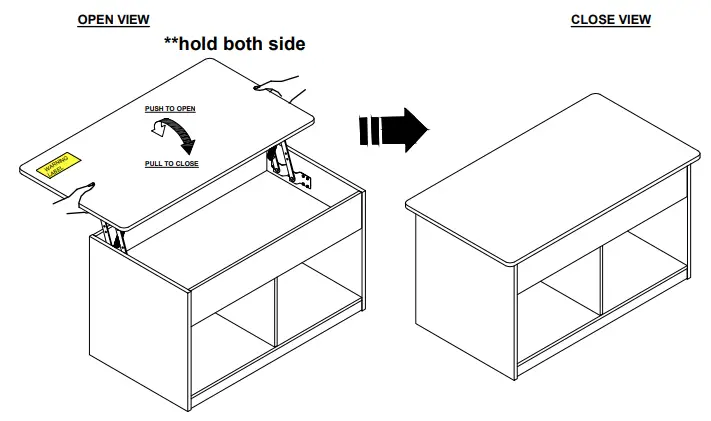

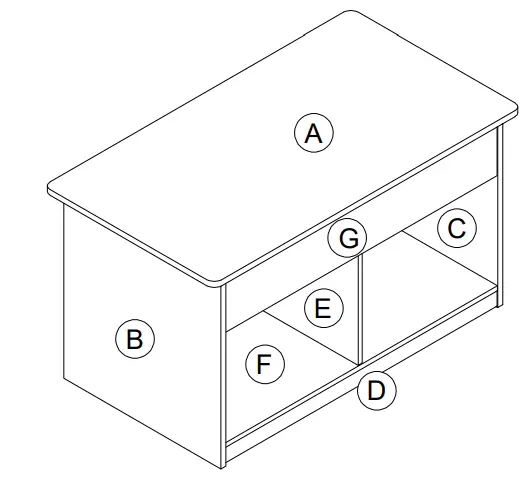

CLOSE VIEW

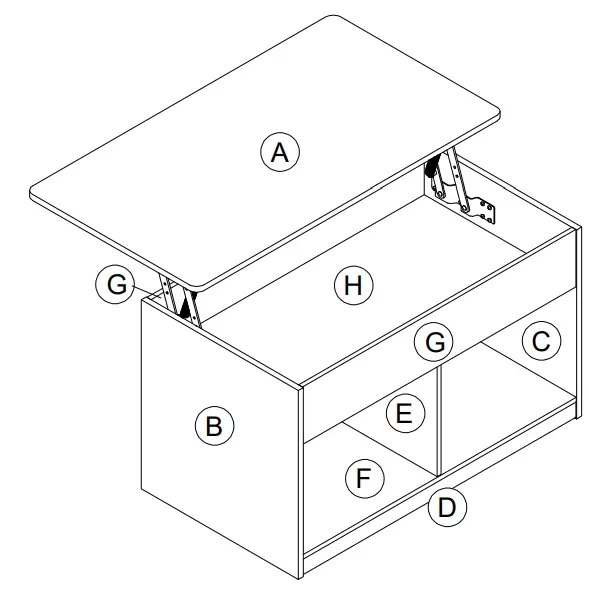

OPEN VIEW
USEFUL HINTS BEFORE YOU START:
- Read each step carefully before starting.
- It is important that each step is performed in correct order to avoid difficulties.
- Identify, sort and count the parts before assembly.
- Assemble your furniture on packaging cardboard to prevent scratch or damage.
- Clean the product with mild cleanser using soft damped cloth. Do not use harsh or abrasive cleanser.
- Using uncompatible hardware might cause damage to product.

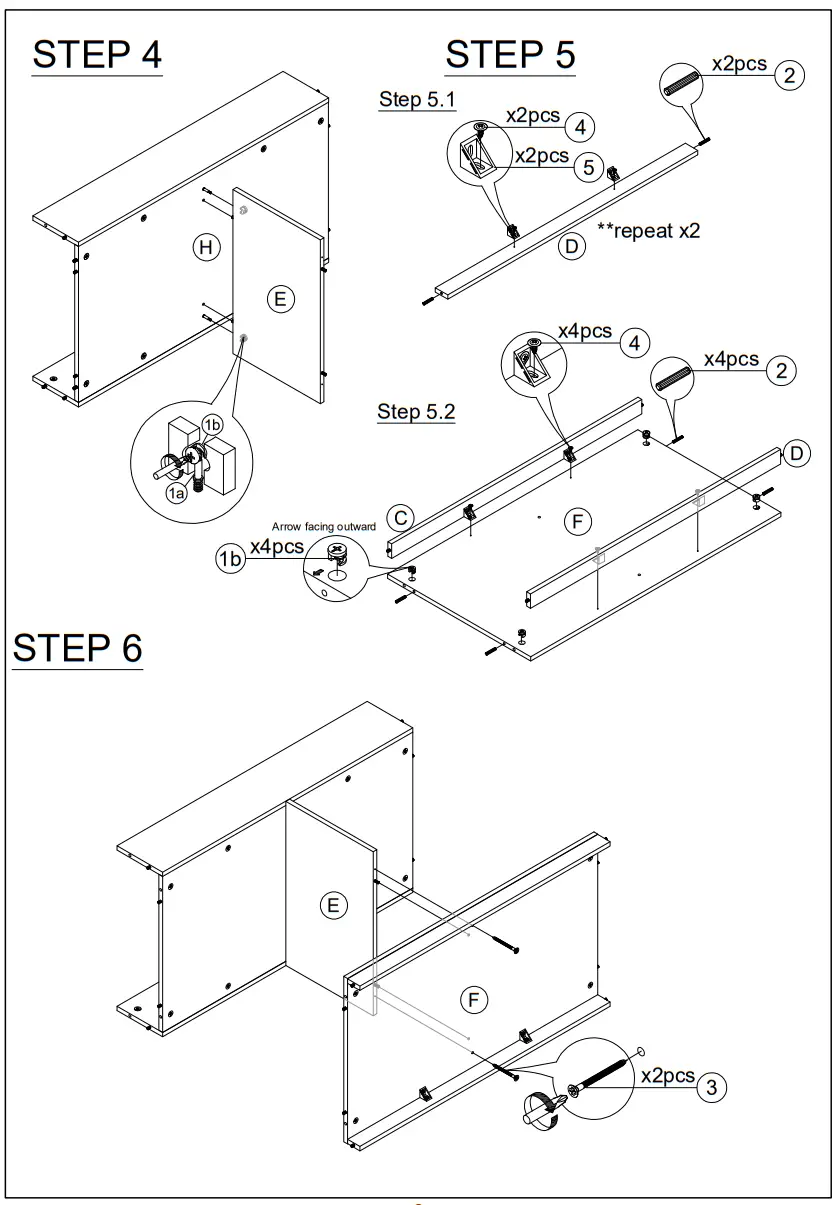

ASSEMBLY INSTRUCTIONS
BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY, FOLLOW THEM STEP BY STEP.
WARNING
Keep out of Reach of Children.
Prevent serious injury from falls of Lift Top. Always secure child in the restraint.
STEP 12
Recommended Maximum Weight
WARNING:
- This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury.
- DO NOT allow children to climb on unit.
- Put heavier items on lower shelves.
Customer Support
NEED HELP? For replacement requests or product inquiries,
please contact our Customer Service Team by emailing us at
[email protected]. Thank you for selecting Furinno!
