21349 Lift Top Coffee Table
Instruction Manual
Assembly Instruction

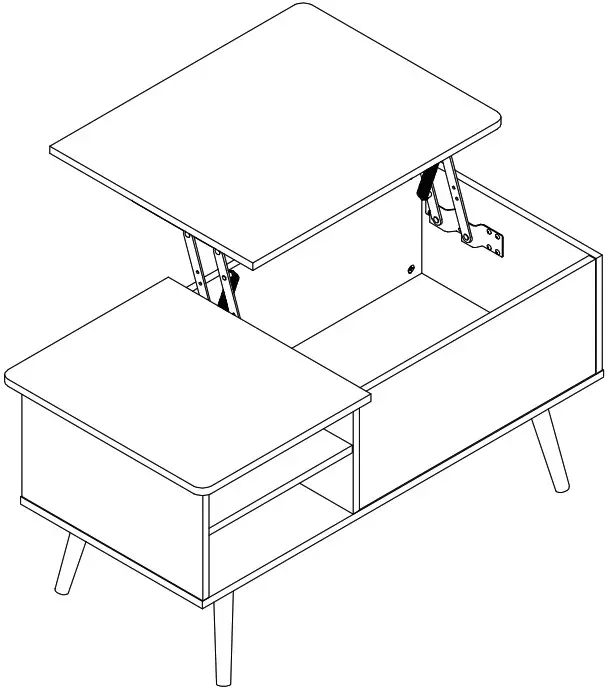

Furinno Lift Top Coffee Table
MODEL: 21349
 |  |  |
Customer Support
NEED HELP? For replacement requests or product inquiries, please contact our Customer Service Team by emailing us at [email protected]. Thank you for selecting Furinno!
www.furinno.com
HARDWARE & PARTS LIST
| NO | HARDWARE LIST | QTY |

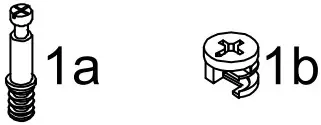

| 1 | MINIX  | 12pcs |
| 2 | WOOD DOWEL  | 14pcs |
| 3 | POZIHEAD SCREW  | 10pcs |
| 4 | METAL SUPPORT PLATE  | 4pcs |

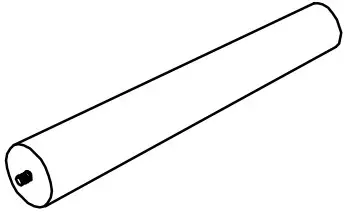

| 5 | WOODEN LEG  | 4pcs |
| 6 | LIFT TOP BRACKET | 1sets |
| 7 | TRUS HEAD SCREW  | 38pcs |
| 8 | RUBBER PAD  | 4pcs |
| 9 | SHELF SUPPORT  | 4pcs |

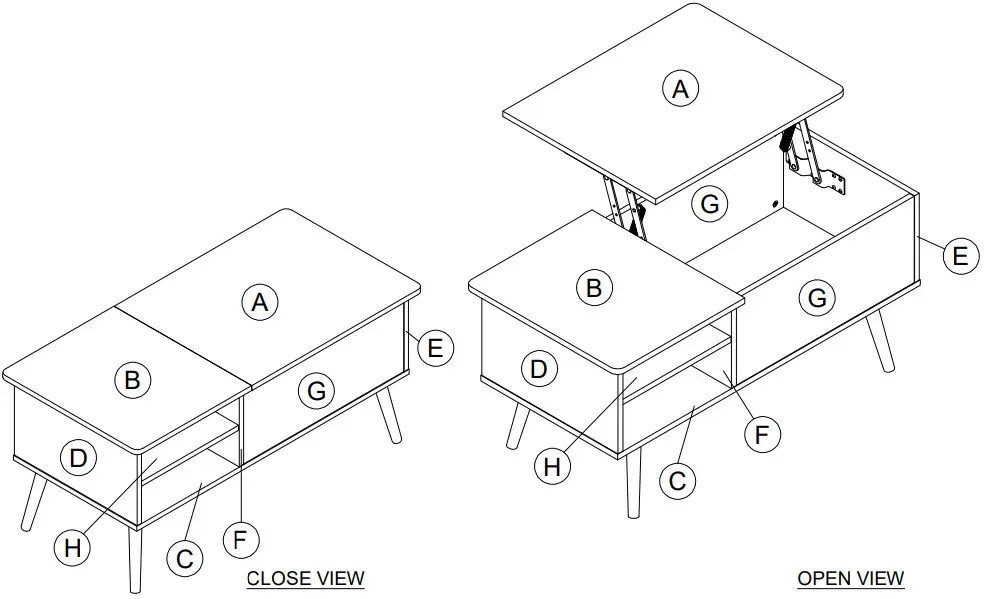

| NO | PART LIST | QTY |
| A | LIFT TOP | 1pc |
| B | TOP PANEL | 1pc |
| C | BOTTOM PANEL | 1pc |
| D | LEFT SIDE PANEL | 1pc |
| E | RIGHT SIDE PANEL | 1pc |
| F | PARTITION PANEL | 1pc |
| G | COVER PANEL | 2pcs |
| H | ADJUSTABLE PANEL | 1pc |
USEFUL HINTS BEFORE YOU START:
- Read each step carefully before starting.
- It is important that each step is performed in the correct order to avoid difficulties.
- Identify, sort, and count the parts before assembly.
- Assemble your furniture on packaging cardboard to prevent scratches or damage.
- Clean the product with a mild cleanser using a soft damped cloth. Do not use harsh or abrasive cleaners.
- Using incompatible hardware might cause damage to the product.
ASSEMBLY INSTRUCTIONS
BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY, AND FOLLOW THEM STEP BY STEP.

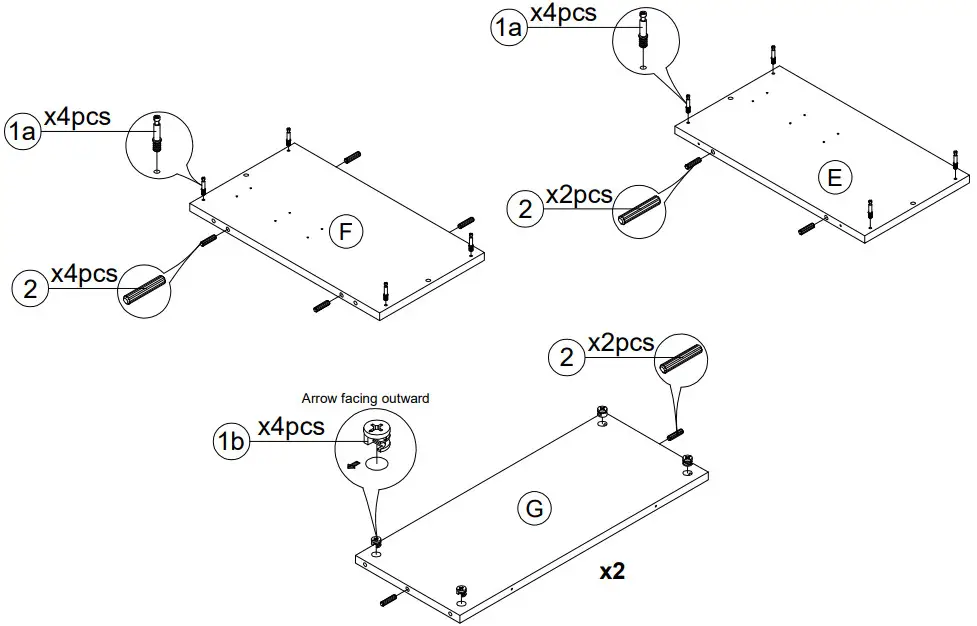

STEP 1

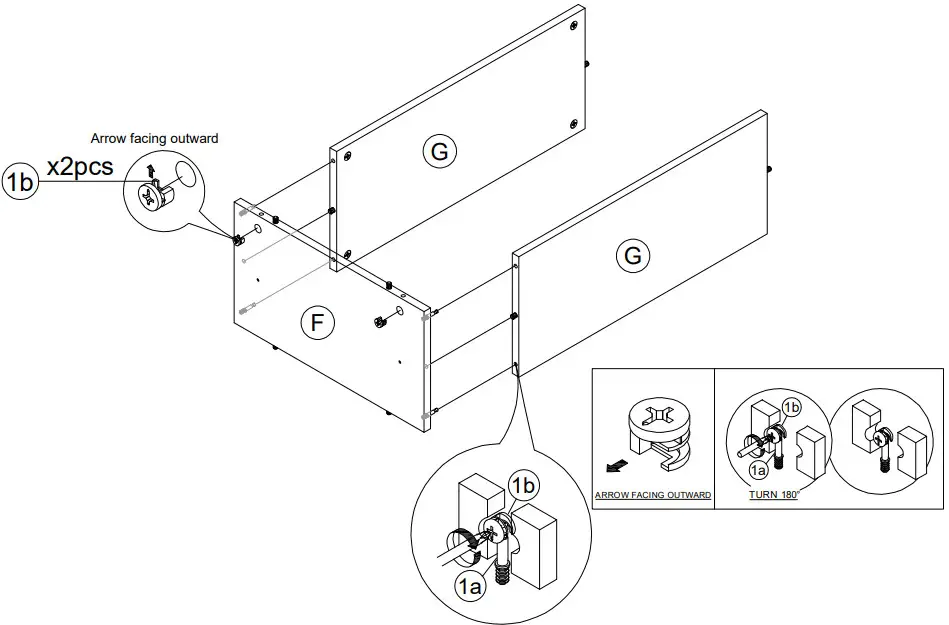

STEP 2

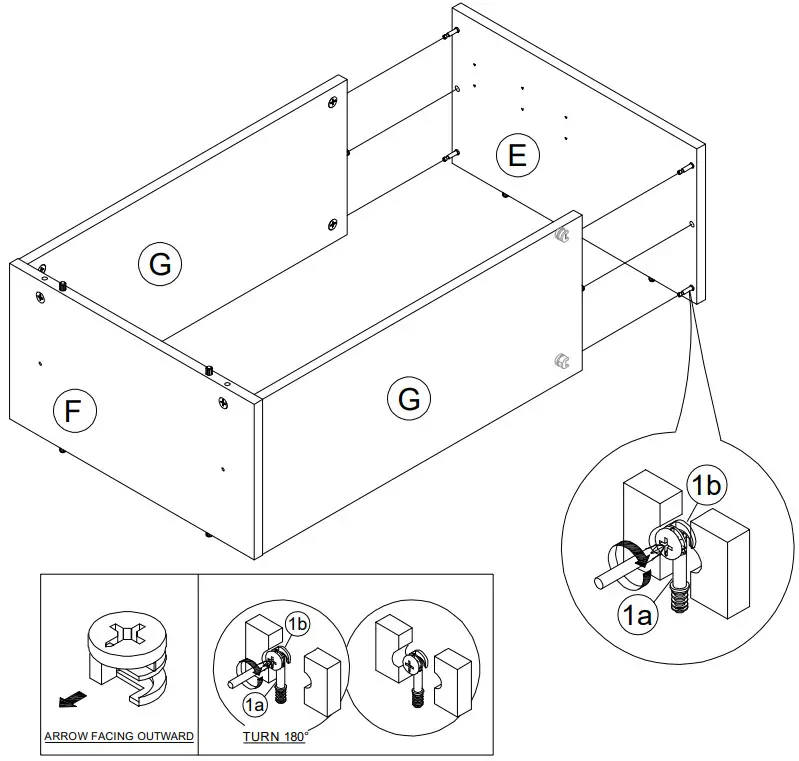

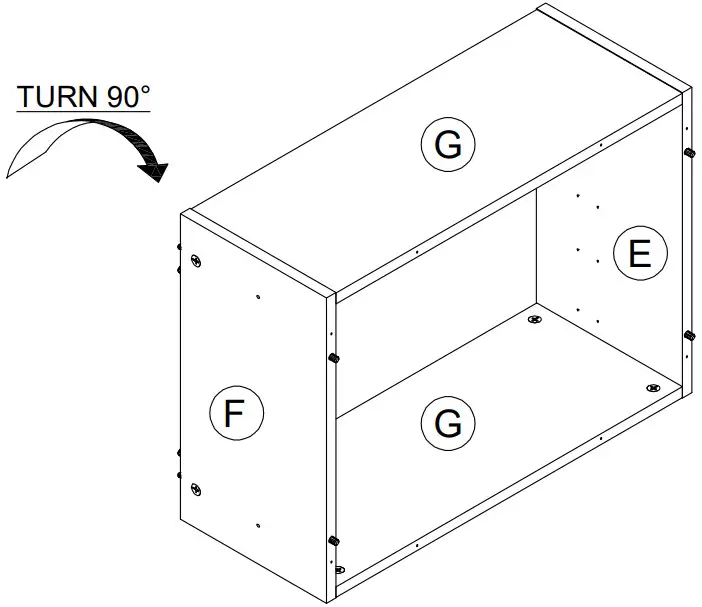

STEP 3
Step 3.1
Step 3.2

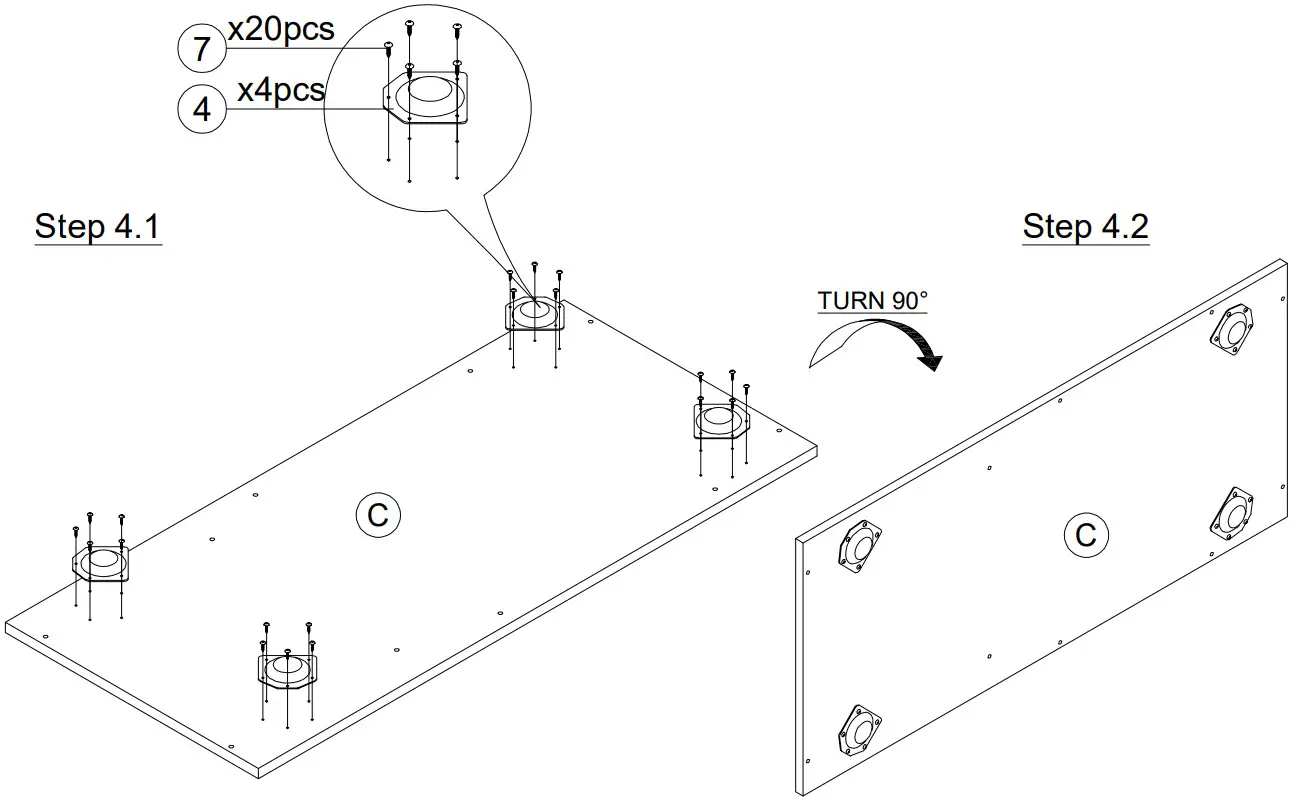

STEP 4
STEP 5

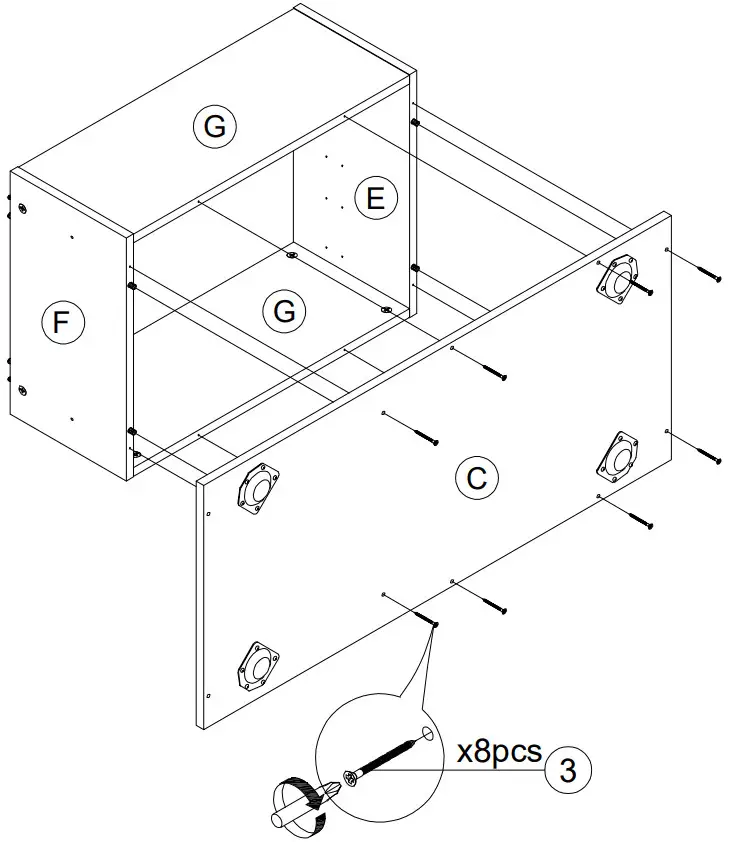

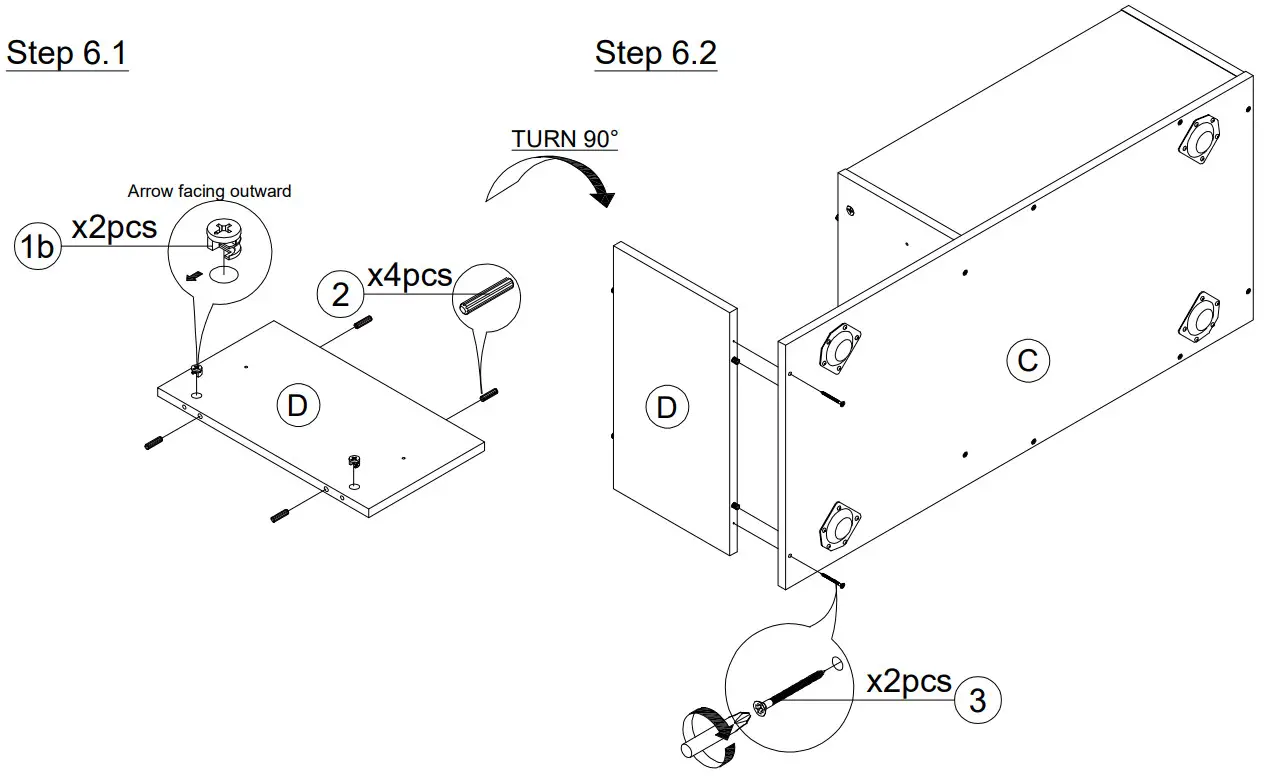

STEP 6
STEP 7

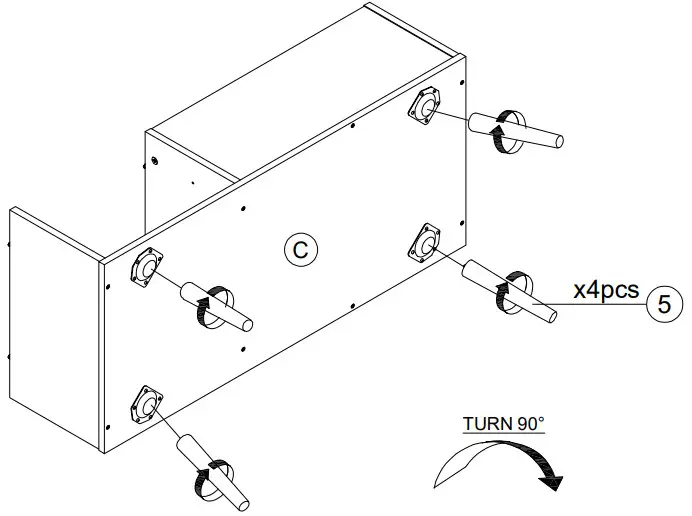

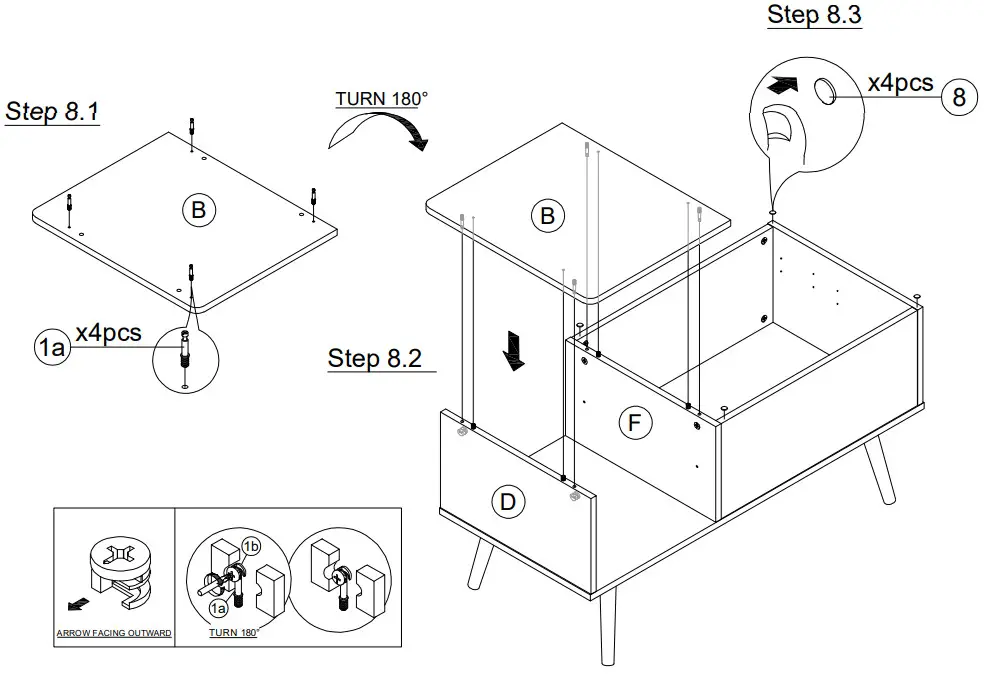

STEP 8

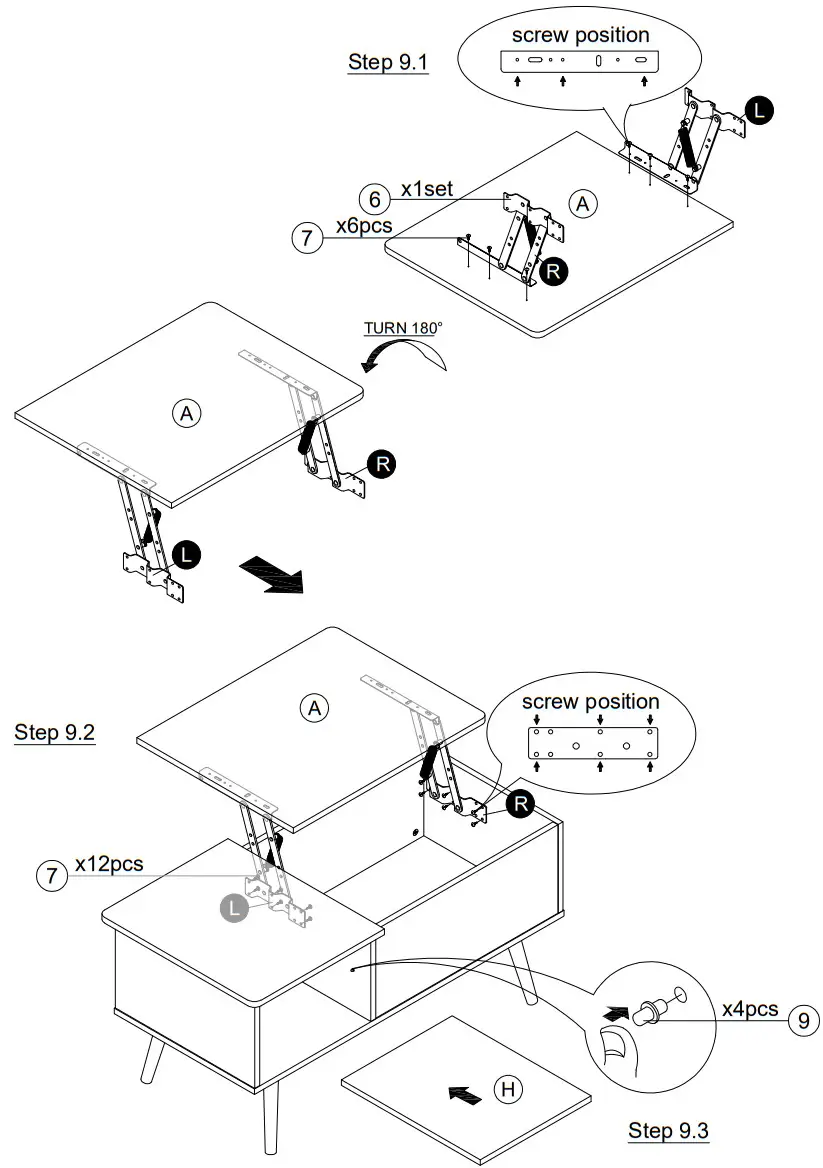

STEP 9

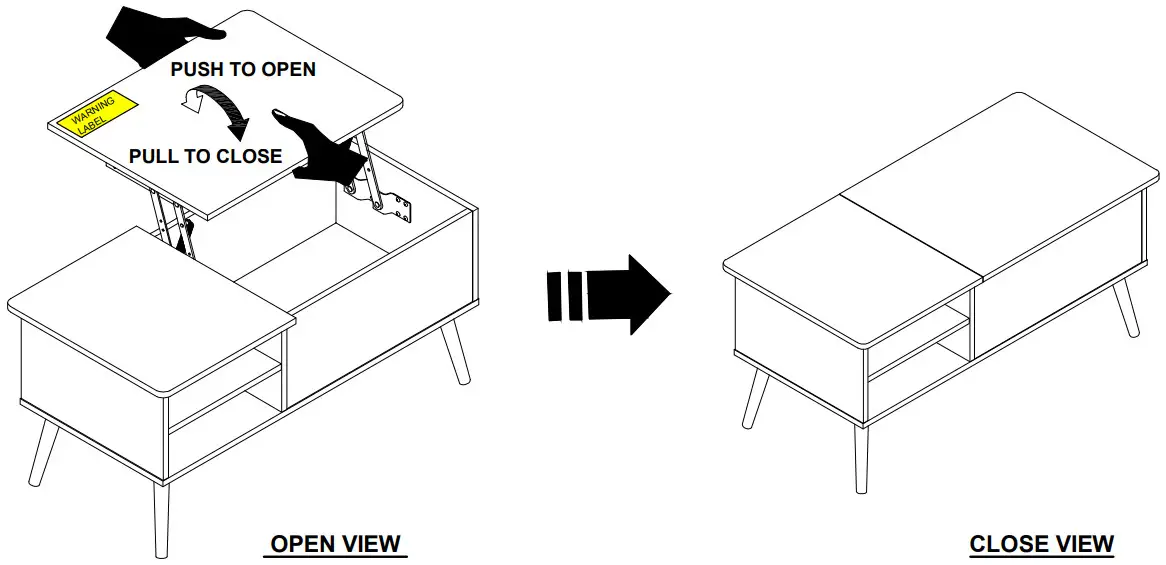

STEP 10
Note: Please hold both sides.
 |  Keep out of Reach of Children. Prevent serious injury from falls on Lift Top. Always secure the child in the restraint. |

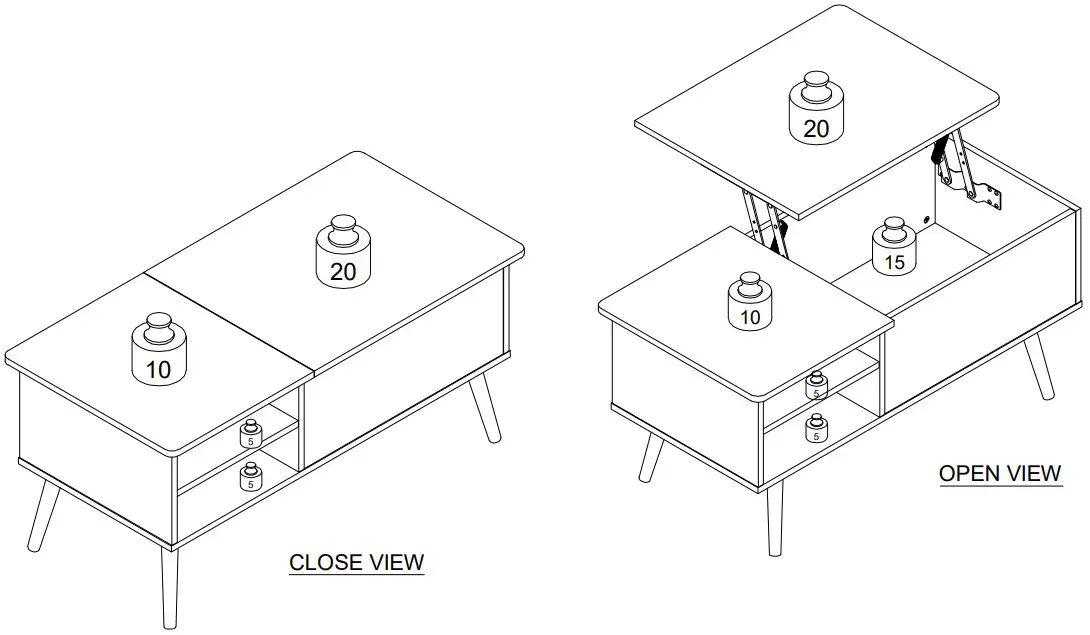

Recommended Maximum Weight
WARNING:
>This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury.
>DO NOT allow children to climb on the unit.
> Put heavier items on lower shelves.
*Unit in Pound(lbs.)
