EN-FLC50 Volta 80W Adjustable IP65 Floodlight
Instruction Manual
Aurora Limited, 6LittleBurrow, Burrowfields, Welwyn Garden City, AL7 4SW, United Kingdom
 |  |  |
 |  |  |
 | ||
EN-FLC30, EN-FLC50, EN-FLC80, EN-FLC100, EN-FLC150 & EN-FLC200
HIGH-POWER LED FLOODLIGHTS
IMPORTANT INSTALLATION INFORMATION
- Installation should be carried out by a qualified electrician in accordance with the latest edition of the National wiring regulations.
- Input voltage – 100-240V 50/60Hz AC.
- These luminaires are not dimmable.
- These luminaires are IP65 and are protected against low-pressure water jets.
- Powder-coated luminaires are corrosion resistant but the finish may degrade in the long term if installed in coastal areas.
- Do not install in chlorinated areas, i.e. swimming pools. Do not install in saunas or steam rooms.
- Do not install luminaires near air conditioners or central heating units as this may affect operation.
- There are no serviceable parts in these luminaires.
- Caution: Do not stare directly into the LEDs in operation. These are high-power LED floodlights and may be harmful to the eyes.
- These luminaires are Class 1 and must be earthed
INSTALLATION

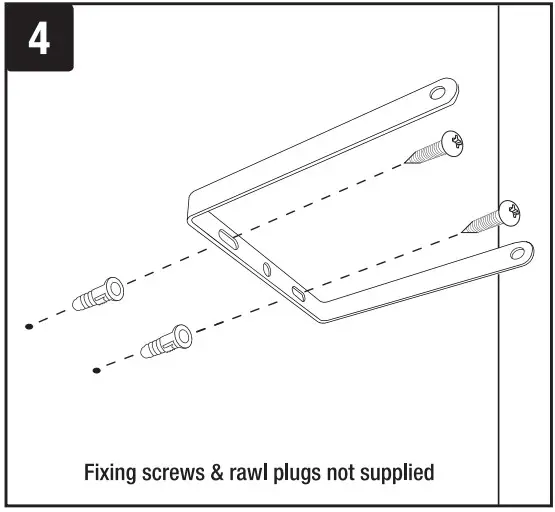

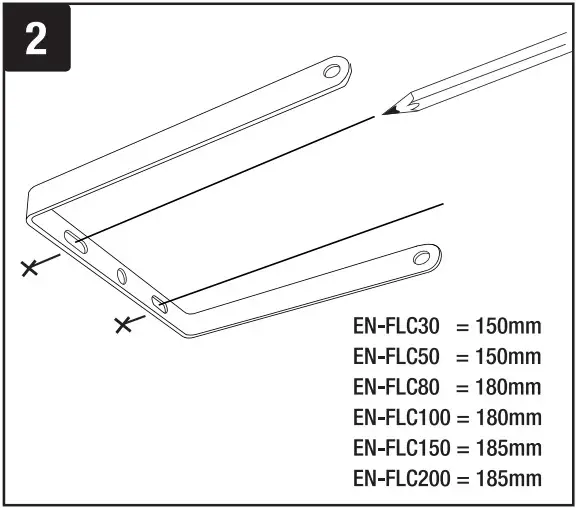

- Fix the luminaire out of reach (2.5m) with 2 screws of the appropriate size.

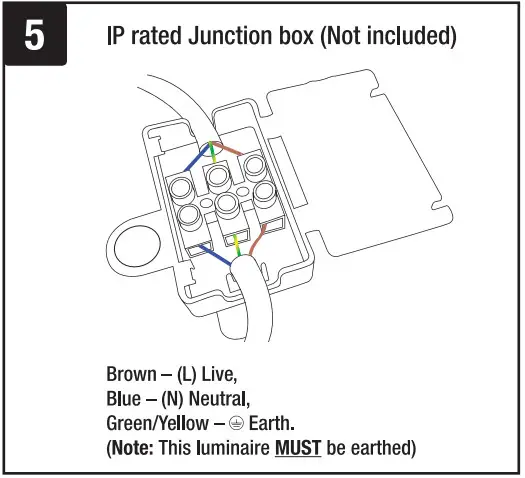

- Connect the mains supply cable to the terminals as follows:
LIVE – (red or brown) to the terminal marked L.
NEUTRAL – (black or blue) to the terminal marked N.
EARTH – (green/yellow) to the terminal marked
- The luminaire MUST be earthed.
Environmental Protection (W.E.E.E.)-Aurora’s WEEE Reg.No. WEE/BGO130YX (UK Only)
Waste Electrical & Electronic Equipment Regulations (WEEE) require that any of our products showing this marking (left) must not be disposed of with other household or commercial waste. Aurora does not levy any WEEE disposal charges to its customers for affected WEEE-related products. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate any such product from other – waste types and recycle it responsibly at your local facilities. Check with your Local Authority, Recycling Centre, or retailer for recycling advice. If, when you purchased any Aurora product, your supplier included a WEEE disposal fee, you should then contact your supplier for advice on his take-back of the product for the correct disposal.
GUARANTEE
This product is guaranteed for a period of 5 years from the date of purchase. The guarantee is invalid in the case of improper use, installation, tampering, and removal of the 0.C. date label, installation in an improper working environment, or installation not according to the current edition of the National Wiring Regulations. Should this product fail during the guarantee period it will be replaced free of charge, subject to correct installation and return of the faulty unit. Aurora does not accept responsibility for any installation costs associated with the replacement of this product. This warranty is in addition to the statutory rights in your country of purchase. Aurora reserves the right to alter specifications without prior notice.
Document Version:
EN-FLC30_FLC50_FLC80_FLC100_FLC150_FLC200_V2_19
