Next Generation BlackFin Tools

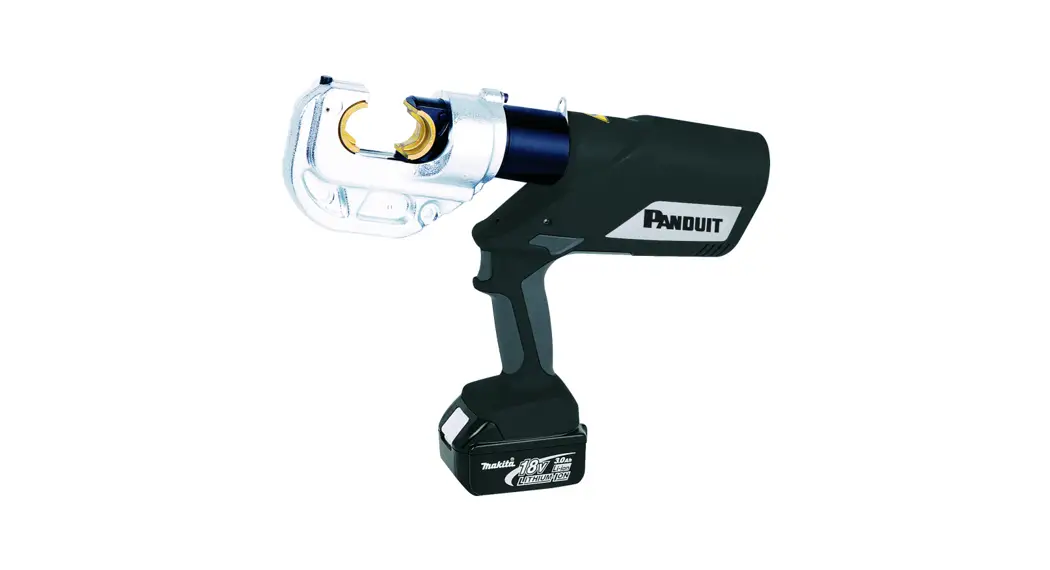

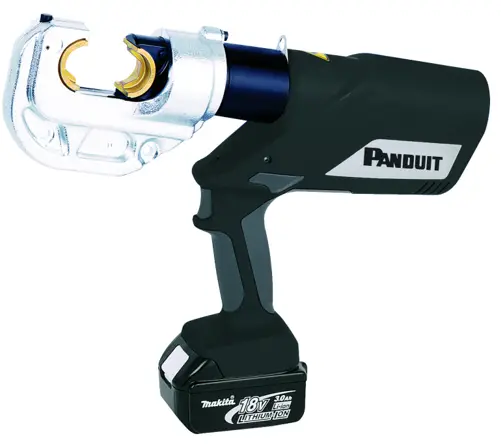

Panduit is launching eight bluetooth electro-hydraulic handheld battery operated BlackFin tools. Crimping wire ranges are from 14 AWG – 1000 kcmil for flex and code wire using all the same crimp dies and inserts from our current generation Blackfin tool offering.

i-press® software and i-press® appi-press® – Show your customers how well you work. Klauke Next Generation records your operations, which can then be transmitted by Bluetooth. The free i-press software uses the data to create a project report, you can use to perfect your quality.
i-press® app – Use the i-press app to check and control your tool data on the go. Individual tool settings, such as the number of warning tones for an incorrect crimp or the
double-click function for increased user safety.

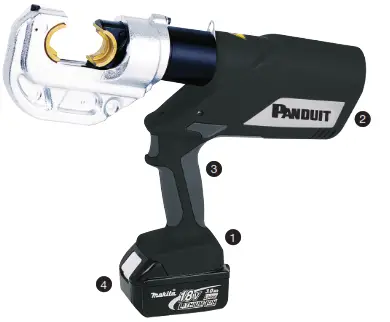

1. LED display
   Real time communication of details associated with the tool, including battery charge, pressure level, and cycle information
2. Enhanced housing construction
   Internal components of the tool are protected against dirt and water intrusion
3. Reverse tapered hand grip
   Increases grip strength and optimal hand positioning to avoid user fatigue
4. Upgraded Power Supply
   4.0 Ah battery – Improves power duration and includes battery protection and fuel gauge. 3 year warranty included

5 Year Warranty

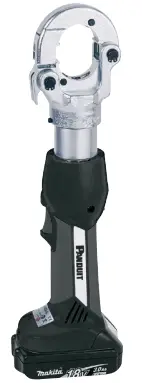

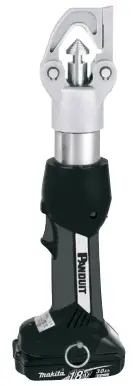

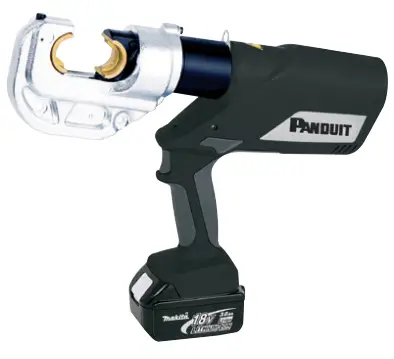

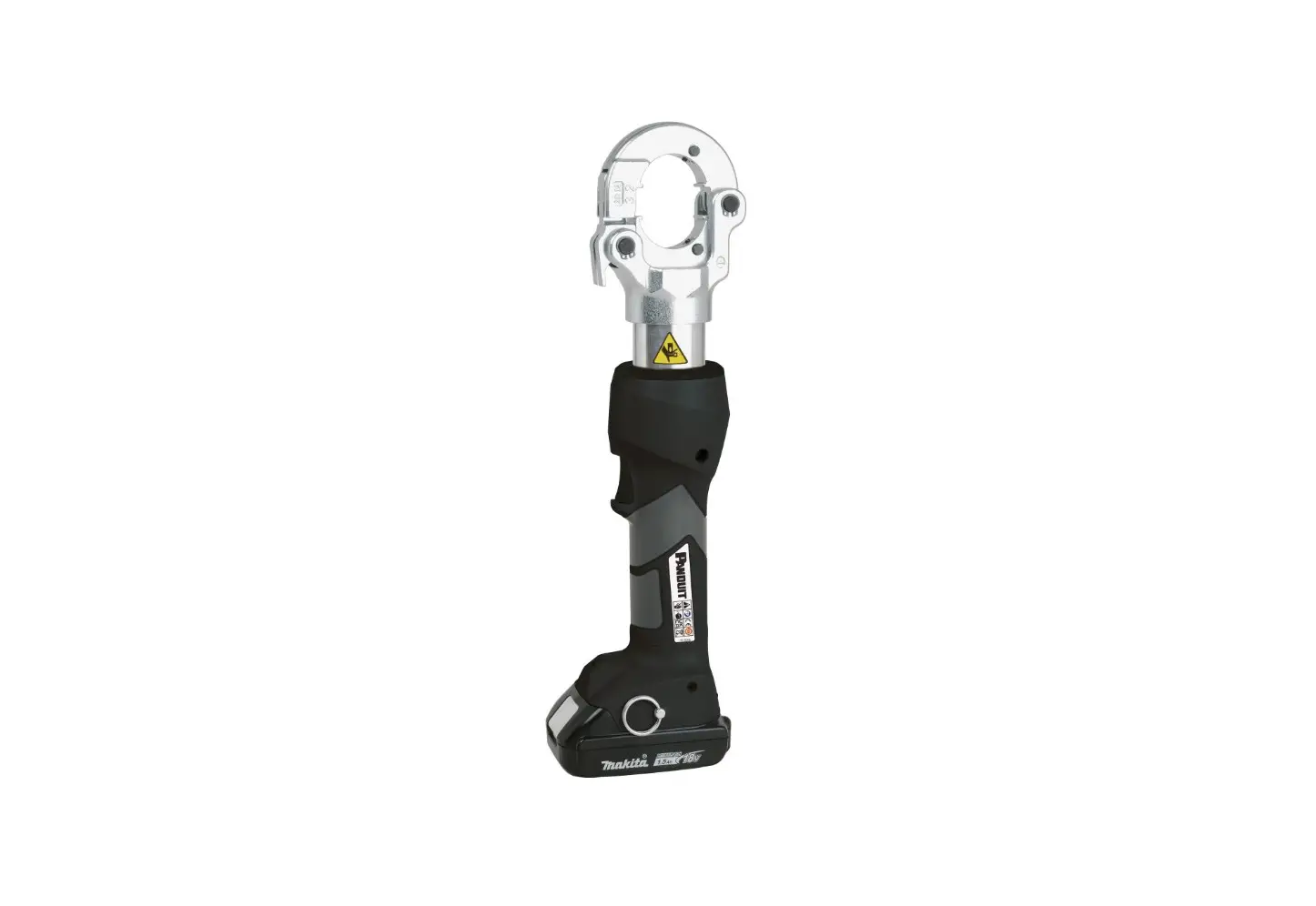

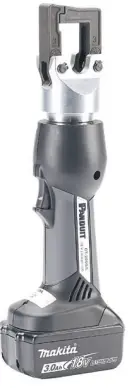

In Line Type Crimpers	Crimp Force	Part Number	Tool Type	Terminates Panduit Compression Connectors
	4-ton	CT-2600/LBT	Die	• Tin and nickel plated #8 – 2 AWG high temperature large wire, non-insulated, vinyl and KYNAR** insulated ring terminals • 8 AWG – 300 kcmil copper Code lugs and splices. • 6 AWG – 2/0 AWG Dual rated aluminum lugs and splices
	6.7-ton	CT-3001/STBT	Die	• Copper lugs and splices #8 AWG–600 kcmil code conductor • Copper lugs #8 AWG – 313 kcmil flex conductor • Aluminum lugs #6 AWG – 350 kcmil code conductor • Large Ferrules #1 AWG – 444 kcmil • Copper CTAPF taps #10 – 3/0 AWG code conductor • Copper CTAP taps #8 – #2 AWG code conductor • Copper S Series Tubular Terminals #8 AWG –250 kcmil code conductor • Copper Metric lugs and splices for 10mm² – 240mm² class 2R conductor, 10mm² – 95mm² class 5f/6f

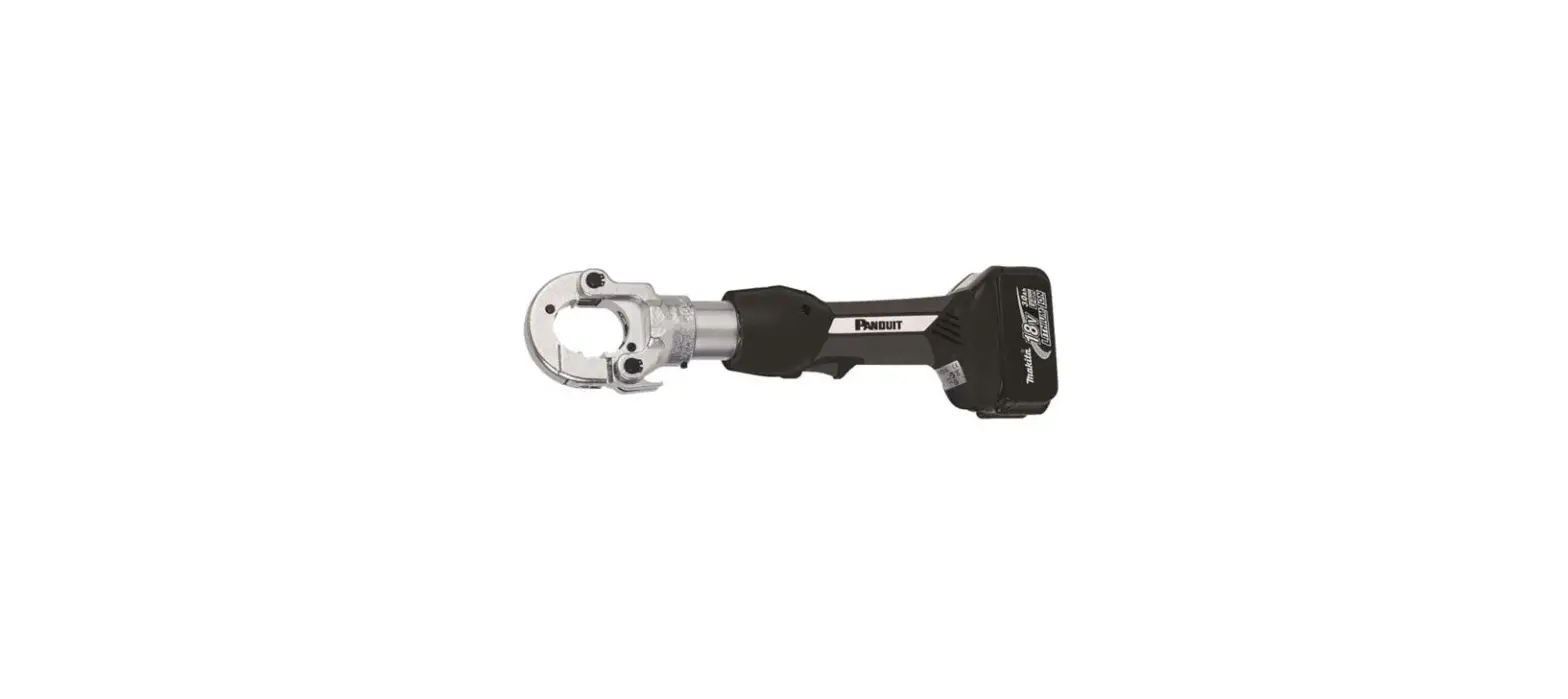

	6.7-ton	CT-3001/CCPBT	Die	• Copper lugs and splices #8 AWG – 600 kcmil code conductor • Copper lugs #8 AWG – 373 kcmil flex conductor • Aluminum lugs #6 AWG – 350 kcmil code conductor • Large Ferrules #1 AWG – 444 kcmil • Copper CTAPF taps #10 – 3/0 AWG code conductor • Copper CTAP taps #8 – #2 AWG code conductor • Copper S Series Tubular Terminals #8 AWG – 250 kcmil code conductor • Copper Metric lugs and splices for 10mm² – 240mm² class 2R conductor, 10mm² – 95mm² class 5f/6f • Cut and Punch Capabilities
	6.7-ton	CT-3980/BT	Dieless Indenter	• Copper lugs and splices #8 AWG – 600 kcmil code conductor • Copper lugs #8 AWG – 373 kcmil flex conductor • Aluminum lugs for #6 AWG – 350 kcmil code conductor

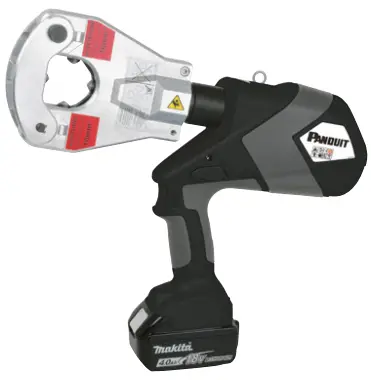

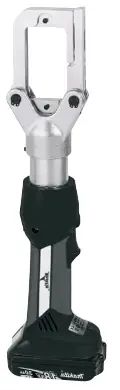

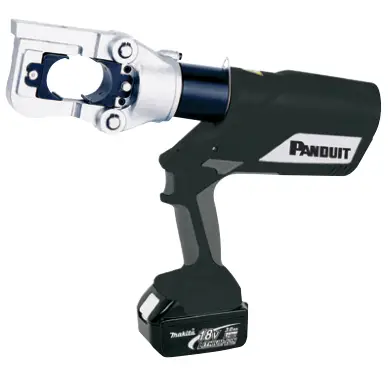

Pistol Grip Type Crimpers	Crimp Force	Part Number	Tool Type	Terminates Panduit Compression Connectors
	6.2-ton	CT-2980/STBT	Dieless Quad-Point	• Copper lugs and splices #4 AWG – 750 kcmil code conductor • Aluminum lugs and splices #4 AWG – 500 kcmil code conductor
	12-ton	CT-2931/STBT	Die	• Copper lugs and splices #8 AWG – 750 kcmil code conductor • Copper lugs #8 AWG – 535 kcmil flex conductor • Copper S Series, Tubular Terminals #8 AWG – 250 kcmil code conductor • Copper Metric lugs and splices 10mm² – 400mm² class 2R conductor 10mm² – 300mm² Class 5f/6f • StructuredGround™ Direct Burial connectors #6 AWG – 250 kcmil code conductor and select 500 kcmil conductor combinations • Copper CTAPF taps #10 – 3/0 AWG code conductor • Copper CTAP taps #8 – 4/0 AWG code conductor • Copper HTCT taps #14 AWG – 250 kcmil code conductor, #14 – 4/0 AWG flex conductor • Aluminum lugs and splices for #6 AWG – 600 kcmil code conductor

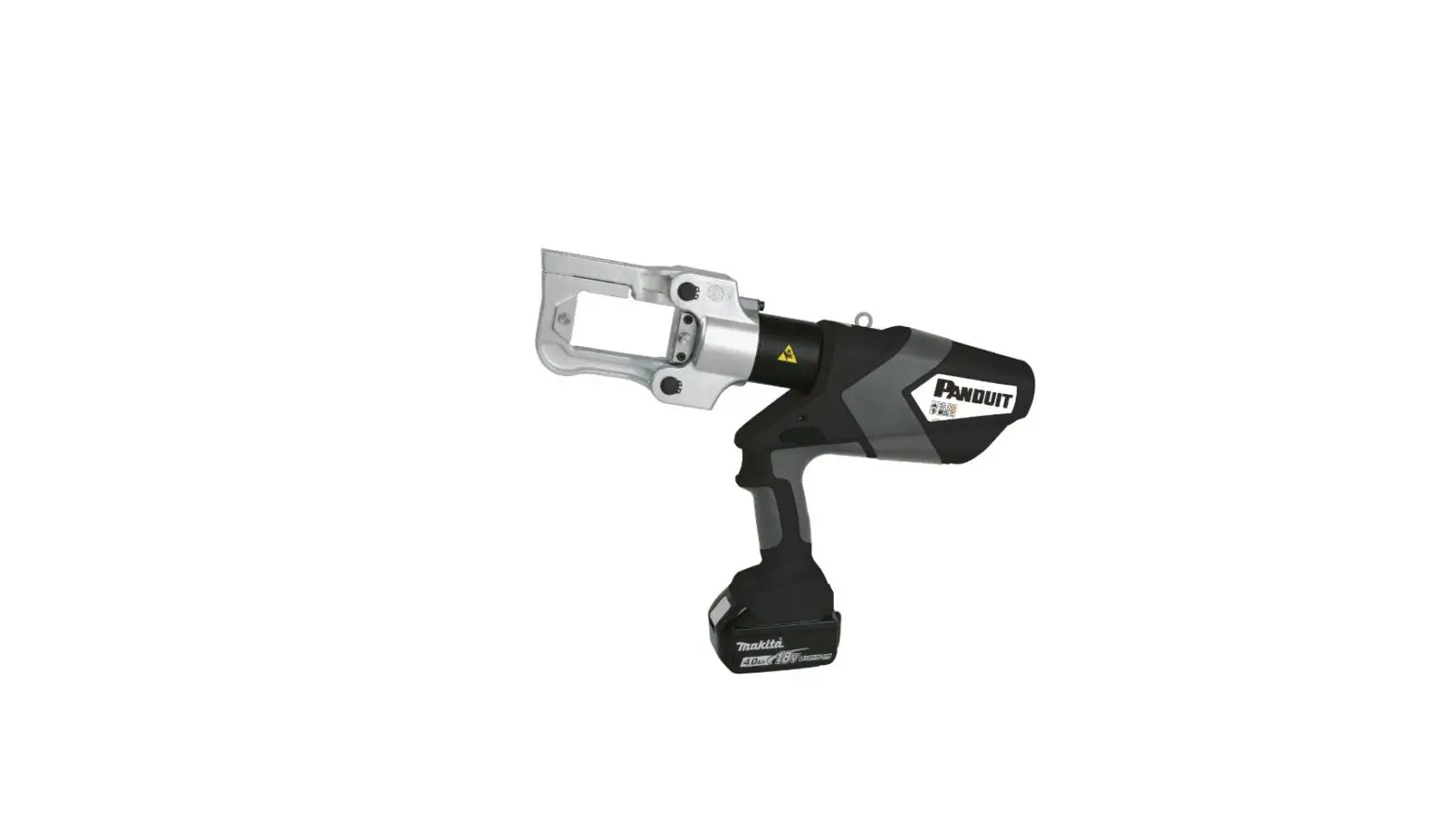

	12-ton	CT-2920/CCPBT	Die	• Copper lugs and splices #8 AWG – 750 kcmil code conductor • Copper lugs and splices 4 AWG – 750 kcmil code conductor w/UA12ID dieless indenter adapter accessory • Copper lugs #8 AWG – 535 kcmil flex conductor • Copper S Series Tubular Terminals #8 AWG – 250 kcmil code conductor • Copper lugs and splices 10mm² – 400mm² class 2R conductor, 10mm² – 300mm² Class 5f/6f • StructuredGround™ Direct Burial connectors #6 AWG – 1/0 AWG code conductor • Copper CTAP taps #8 – 4/0 AWG code conductor • Copper HTCT taps #14 AWG – 2 AWG code conductor • Aluminum lugs and splices #6 AWG – 600 kcmil code conductor • Aluminum lugs #6 AWG – 600 kcmil code conductor w/UA12ID dieless indenter adapter accessory. • Cut and Punch capabilities
	15-ton	CT-2940/STBT	Die	• Copper lugs and splices #8 AWG – 1000 kcmil code conductor • Copper lugs #8 AWG – 777.7 kcmil flex conductor • Copper S Series Tubular Terminals #8 – 250 kcmil code conductor • Copper Metric lugs and splices 10mm² – 630mm² class 2R and, 10mm² – 300mm² Class 5f/6f metric conductor • StructuredGround™ Direct Burial connectors #6 AWG – 500 kcmil code conductor • Copper CTAPF taps #10 – 3/0 AWG code conductor • Copper CTAP taps #8 – 4/0 AWG code conductor • Copper HTCT taps #14 AWG – 250 kcmil code conductor, #14 – 4/0 AWG flex conductor • Aluminum lugs and splices #6 AWG – 1000 kcmil code conductor
