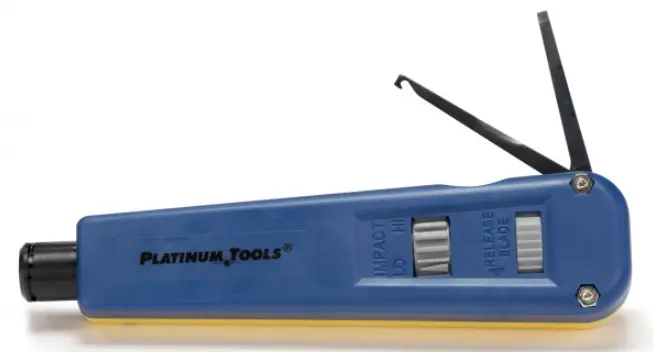

PLATINUM TOOLS 13300C PT Punchdown Tool

The PT Punchdown Tool is an excellent addition to any datacom or telecom installers arsenal. Terminate efficiently and precisely every time.
The PT Punchdown Tool combines the classic punchdown tool design with essential extras to create a competitively priced high quality solution. Whether using 110, 66, 630, Krone or BIX style cross connectors the PT punchdown tool covers all the bases and ensures installs are streamlined and effective every time.

Key Features

• Terminate and cut Cat3/5/5e/6 cables
• Spring loaded for fast, low effort wire seating and termination
• Bayonet style (twist & lock) blade retention socket is compatible with industry standard tools and blades
• 110, 66, 630, Krone and BIX™ style interchangeable blades
• Built-in hook — feeds or removes wire
• Built-in spudger — for screwdriver, IDC insert tool or to clean debris
• Color coded yellow on the CUT side of the tool per industry standard
• Adjustable Hi-Lo force impact settings are precisely controlled to meet the industry standard 8762D spec
• Large blade storage compartment

Technical Data

• Weight: Handle Only 4.73 oz. (134g)
• Length: 6-1/8” (155.58 mm)

Ordering Information

California, USA
Phone: 800.749.5783
Fax: 800.749.5784 www.platinumtools.com
