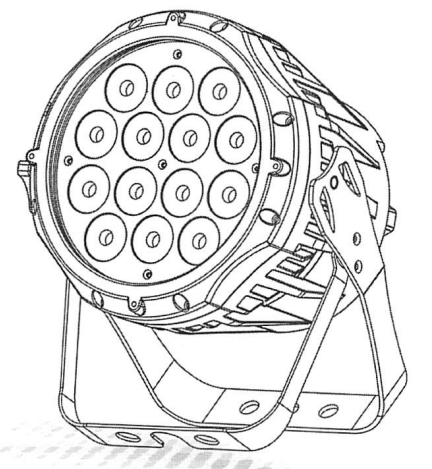

PRODUCT

TECHNICAL SPECIFICATIONS

Type	SS358XCE/SS358XCEM/SS358XCET
LED colors	14PCS RGBW LED
Power	65W
Voltage Range	AC100~240V,50/60Hz
Protection	IP20 CSS358XCE) IP65 CSS358XCEM) IP66 CSS358XCET)
Operation Temperature	-0°C~45°C (SS358XCE) -20°C~45°C (SS358XCEM\SS342XCET)

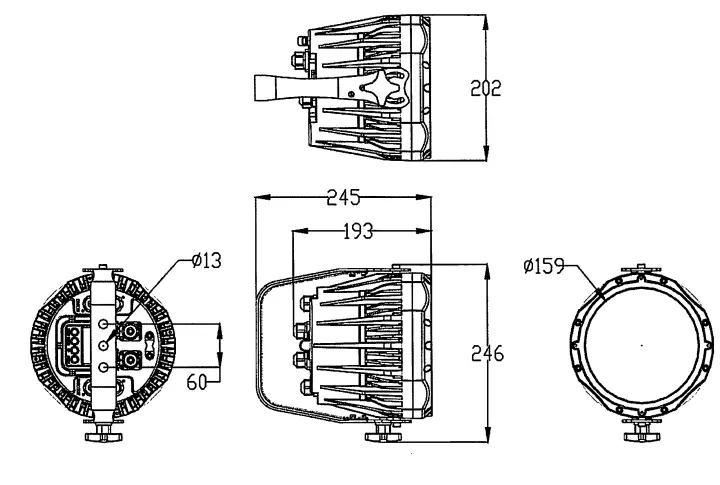

Dimensions	245X246X202mm
Weight	4.8kg

Product

Safety Notes

This product must be installed by a qualified
In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the

CAUTION!

Make sure that the available voltage is not higher than stated on the rear
Do not touch the power cables if your hands are
The earth wire must always be connected to the Therefore it is essential to connect the yellow/green conductor to earth.
Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-cord from time to time. The electric connection, repairs and servicing must be carried out by a qualified
Always disconnect power input cable to completely remove power from unit when not in use or before cleaning or servicing the fixture.
Do not switch the fixture on and off in short intervals as this would reduce the lamp’s
Do not touch the device’s housing bare hands during its operation (housing becomes hot)! The surface of the product’s casing can reach up to 70° C (158° F) during operation. Avoid contact by persons and Do not install the product in a location where there is a risk of accidental contact. Allow the product to cool for at least 1O minutes before handling.
For replacement use lamps and fuses of same type and rating
Please protect the fixture and avoid destroy during transport and installation. If there is any damage to the coating, the shell may be
When hanging lamps and lanterns, it is necessary to verify that facilities and hooks can bear at least 1O times the weight of lamps and
Fix the safety rope at the correct holes only. Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly

The maximum ambient temperature 45°C must never be exceeded. Do not operate the product if the ambient temperature (Ta) exceeds 45° C (115° F).

Electrical Warning

The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person

INSTALLATION

MOUNTING

UPRIGHT

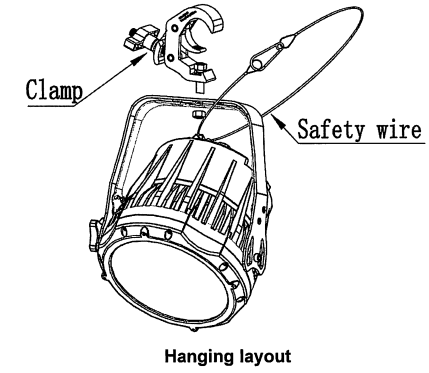

For overhead use, always install a safety cable that can hold at least 10 times the weight of the
For overhead installation, the fixture must be always secured with a safety wire that can bear at least 10 times the weight of the fixture: Secure the fixture with a safety cable through the rear safety eye as shown
Ensure that the structure (truss) to which you are attaching the fixture is secure

Installation

POWER CONNECTIONS
POWER Linking: 11 units@110V: 22 units@220V.

This product has an auto-ranging power supply that can work with an input voltage range of 100-240 VAC, 50/60 Hz

AC Plug

Connection	Wire (U.S.	Wire(Europe)	Screw Color
AC Live	Black	Brown	Yellow/Brass
AC Neutral	White	Blue	Silver
AC Ground	Green/Yellow	Green/Yellow	Green

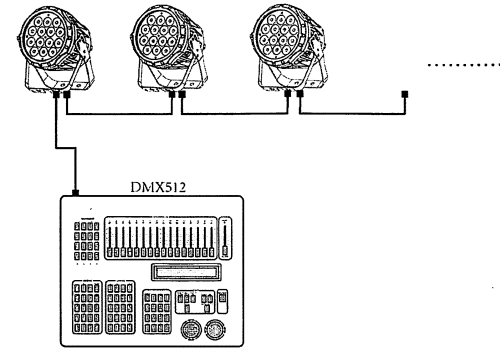

Data network requirements

Connect the OMX512 controller to the units in series. A OMX 512 data link is required in order to control the fixture via OMX. The fixture has 3/5-pin XLR connectors for OMX data input and
Each unit has 13 OMX channels so the OMX Addresses should increase by increments of 1, (Nx1)+1, (Nx2)+1, (Nx3)+1…
Any OMX address in the range from 001 to 512 may be

FUNCTIONS AND SETTINGS

DISPLAY OPERATION

MENU: Used to access the menu or to return a previous menu option;
ENTER: Used to select and store the current menu or confirm the current function value or option within a menu;
- UP: Navigates downwards through the menu list and increases the numeric value when in a function;
- DOWN: Navigates upwards through the menu list and decreases the numeric value when in a function;

STAT	RED	R.0-255			Combine [RED],[GREEN],[BLUE],[WHITE] to create an infinite range of colors(0-255). Set the value of the [STROBE](0-25Hz).
	GREEN	G.0-255
	BLUE	B.0-255
	WHITE	W.0-255
	STROBE	S.0-25
ADDR	001-512 C default001 )				Set the OMX ADDRESS
RUN	OMX C default)				[DMX] Using the OMX 512 controller to control;[SLAVE] Master-Slave operation.
	SLAVE
PERS	HSIC				Use the menu to select desired channel mode
	SSP
	TOUR (default)
	TR16
AUTO	AT.1	0-255			Selects automatic AUTO program and AUTO program speed. Programs [CUSTOM 1] to [CUSTOM 2] are fully pre-programmed and can be edited in [EDIT) mode.
	AT.2	0-255
	…	0-255
	AT10	0-255
	PR 1
	PR2
EDIT	PR 1-2	SC 01-10	RED	R.0-255	Enter the [EDIT] mode to edit the custom programs [PROGRAM01) to [PROGRAM2]. Each custom program has 30 scenes that can be edited. Fade transition time, time 0-255 unit is second, fade time setting should be less than time setting. After editing the program, Play in AUTO.
			GREEN	G.0-255
			BLUE	B.0-255
			WHITE	W.0-255
			STROBE	S.0-25
			TIME	R.0-255
			FADE	G.0-255
	UPLOAD	****	SEND		Select [UPLOAD] to upload the custom programs
SET	****	REST	****	REST	Restore factory settings
		DIMM	DIM4 C default)		Dimming curves DIM1 (fast) to DIM4 (slow);
			OFF
		OMX ERROR	SAVE ( default)		Hold after loss of OMX signal
			BLACK		Blackout after loss of OMX signal
		PWM	1200HZ ( default)		Sets the PWM frequency
			2400HZ
			4000HZ
			6000HZ
			25000HZ
		OKEY	ON (default)		Locks display (passcode is <UP>, <DOWN>,<UP>, <DOWN>, <ENTER>)
			OFF
		DTIM	ON		Display backlight always on
			10s		Tums off display backlight after 10s/30s /2min of inactivity
			30s <default)
			2min
INFO	VERSION				Software versions
CCT	wr.01				Preset color temperatures
	wr.02
	wr.o3
	WT.04
	wt.05
	WT.06
	WT.07
	WT.08
	WT.09
	wr.10
	WT.11
	WT.12
	WT.13
	WT.14
PRESET COLOR	COL1				Preset colour < Se,e, Annex I for details)
	COL2
	COL24
	COL24
passwords of this product are <UP>, <DOWN>,<UP>, <DOWN>, <ENTER>)

USING A DMX512 CONTROLLER

CH.3	0-255	HUE FINE
CH.4	0-255	SATURATION
CH.5	CCT
	0-9	NO FUNCTION
	10	1800K
	25	2200K
	40	2700K
	55	3000K
	70	3200K
	85	4000K
	100	4500K
	115	5000K
	130	5600K
	145	6000K
	160	6500K
	175	7000K
	190	8000K
	205	10000K
	255	10000K
CH.6	STROBE
	0-9	NO FUNCTION
	10-99	STROBE FROM SLOD TO FAST (0-25Hz)
	100-109	NO FUNCTION
	110-179	THUNDER STROBE
	180-189	NO FUNCTION
	190-255	RANDOM SROBE
CH.7	CONTROL ( EXECUTE AFTER 3 SECONDS)
	000-010	NO FUNCTION
	011-100	RESERVED
	101-110	DIMMER OFF
	111-120	DIMMER DIM4
	121-150	RESERVED
	151-160	1200Hz
	161-170	2400Hz
	171-180	4000Hz
	181-190	6000Hz
	191-200	25000Hz
	1201-210	ALL RESET
	211-255	RESERVED

SSP (7CH)	TOUR (11CH)	TR16 (16CH)		Value	Function
CH.1	CH.1	CH.1		0-255	MASTER DIMMER
–	–	CH.2		0-255	MASTER DIMMER FINE
CH.2	CH.2	CH.3		0-255	RED
–	–	CH.4		0-255	RED FINE
CH.3 –	CH.3	CH.5		0-255	GREEN
	–	CH.6		0-255	GREEN FINE
CH.4	CH.4	CH.7		0-255	BLUE
–	–	CH.8		0-255	BLUE FINE
CH.5	CH.5 –	CH.9		0-255	WHITE
–		CH.10		0-255	WHITE FINE
–	CH.6	CH.11		PRESET COLOR
				0-10	NO FUNCTION
				11-255	PRESET COLOR ( See Annex I for details)
–	CH.7	CH.12		CCT
				0-9	NO FUNCTION
				10	1800K
				25	2200K
				40	2700K
				55	3000K
				70	3200K
				85	4000K
				100	4500K
				115	5000K
				130	5600K
				145	6000K
				160	6500K
				175	7000K
				190	8000K
				205	10000K
				255	10000K
CH.6	CH.8	CH.13		STROBE
				0-9	NO FUNCTION
				10-99	STROBE FROM SLOD TO FAST (0-25Hz)
				100-109	NO FUNCTION
				110-179	THUNDER STROBE
				180-189	NO FUNCTION
				190-255	RANDOM SROBE
–	CH.9	CH.14		AUTO

				0-40	NO FUNCTION
				41-50	AUTO 1
				51-60	AUTO2
				61-70	AUTO3
				71-80	AUTO4
				81-90	AUTOS
				91-100	AUTO6
				101-110	AUTO7
				111-120	AUTOS
				121-130	AUTO9
				131-140	AUTO10
				141-150	PROGRAM 1
				151-160	PROGRAM 2
				161-255	NO FUNCTION
—	CH.10	CH.15		0-255	AUTO SPEED ADJUSTMENT
CH.7	CH.11	CH.16	CONTROL ( EXECUTE AFTER 3 SECONDS)
			000-010		NO FUNCTION
			011-100		RESERVED
			101-110		DIMMER OFF
			111-120		DIMMER DIM4
			121-150		RESERVED
			151-160		1200Hz
			161-170		2400Hz
			171-180		4000Hz
			181-190		6000Hz
			191-200		25000Hz
			201-210		ALL RESET
			211-255		RESERVED
			41-50		AUTO 1
			51-60		AUTO2
			61-70		AUTO3
			71-80		AUTO4
			81-90		AUTOS
			91-100		AUTO6
			101-110		AUTO7
			111-120		AUTOS
			121-130		AUTO9
			131-140		AUTO10
			141-150		PROGRAM 1
			151-160		PROGRAM 2
			161-255		NO FUNCTION
—	CH.10	CH.15	0-255		AUTO SPEED ADJUSTMENT
CH.7	CH.11	CH.16	CONTROL ( EXECUTE AFTER 3 SECONDS)
			000-010			NO FUNCTION
			011-100			RESERVED
			101-110			DIMMER OFF
			111-120			DIMMER DIM4
			121-150			RESERVED
			151-160			1200Hz
			161-170			2400Hz
			171-180			4000Hz
			181-190			6000Hz
			191-200			25000Hz
			201-210			ALL RESET
			211-255			RESERVED

Annex 1

PRESET COLOR	Value	Color Names		X	y
	0-15	NO FUNCTION
COLOR 1	16-20	R40	Light Salmon	0.499	0.321
COLOR2	21-25	L24	Scarlet	0.561	0.296
COLOR3	26-30	L164	Flame Red	0.659	0.302
	31-40	NO FUNCTION
COLOR4	41-45	LOS	Dark Salmon	0.498	0.347
COLORS	46-50	L25	Sunset Red	0.566	0.359
	51-55	NO FUNCTION
COLORS	56-60	L237	CID(To Tungsten)	0.43	0.365
COLOR 7	61-65	R321	Soft Golden Amber	0.477	0.406
COLORS	66-70	L652	Urban Sodium	0.535	0.399
	71-75	NO FUNCTION
COLOR9	76-80	L765	LEE Yellow	0.389	0.412
COLOR 10	81-85	L513	Ice And A Slice	0.38	0.447
	86-105	NO FUNCTION
COLOR 11	106-110	L90	Dark Yellow Green	0.184	0.641
	111-115	NO FUNCTION
COLOR12	116-120	R92	Tuiquoise	0.235	0.36
	121-135	NO FUNCTION
COLOR 13	136-140	L728	Steel Green	0.256	0.302
COLOR 14	141-145	L117	Steel Blue	0.223	0.278
COLOR 15	146-150	L354	Special Steel Blue	0.173	0.265
	151-155	NO FUNCTION
COLOR 16	156-160	L501	New Colour Blue	0.246	0.249
COLOR 17	161-165	L174	Dark Steel Blue	0.204	0.205
	166-180	NO FUNCTION
COLOR18	181-185	L142	Pale Violet	0.209	0.148
	186-195	NO FUNCTION
COLOR 19	196-200	L794	Pretty’n Pink	0.335	0.251
COLOR20	201-205	L328	Follies Pink	0.335	0.18
	206-215	NO FUNCTION
COLOR 21	216-220	L127	Smokey Pink	0.397	0.265
COLOR22	221-225	L192	Flesh Pink	0.41	0.237
	226-235	NO FUNCTION
COLOR23	236-240	L157	Pink	0.457	0.272
COLOR24	241-245	R332	Cherry Rose	0.489	0.295
	246-255	NO FUNCTION
