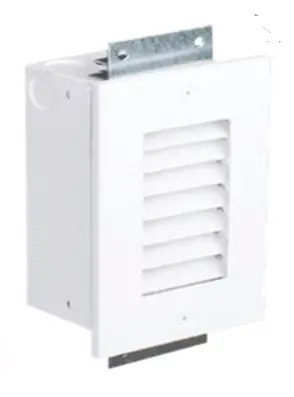

NEW STAR LIGHTING SNL3 STARSTEP SPECIALTY SERIES STEP LIGHT LED 8
introduction
WARNING
- DISCONNECT POWER BEFORE BEGINNING INSTALLATION.
- FIXTURE MUST BE INSTALLED IN COMPLIANCE WITH THE NATIONAL
- ELECTRIC CODE AND ANY LOCAL CODES
- TO BE INSTALLED ONLY BY A QUALIFIED ELECTRICIAN.
- RISK OF FIRE, USE A MINIMUM OF 90 DEG c SUPPLY CONDUCTORS.
INSTALLATION INSTRUCTIONS

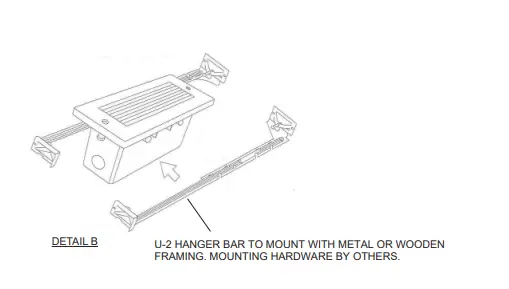

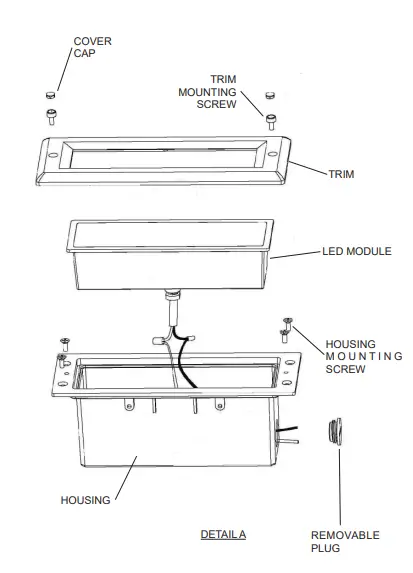

- Mount step light housing to building structure via housing mounting screws or hanger bars. See detail A & B. Position LED module near housing.
- See detail A. Connect step light hot, neutral, and ground
- conductors to matching building conductors.
- Secure step light LED module and trim to trim mounting screws, allen wrench provided.
See detail A. - Install trim mounting screw cover caps.
See detail A.
