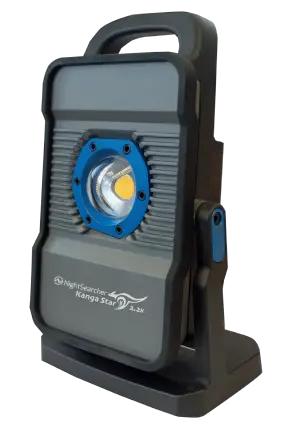

Kanga Star 2.2K LED Work Lights
Kanga Star 2.2K
Instruction Manual

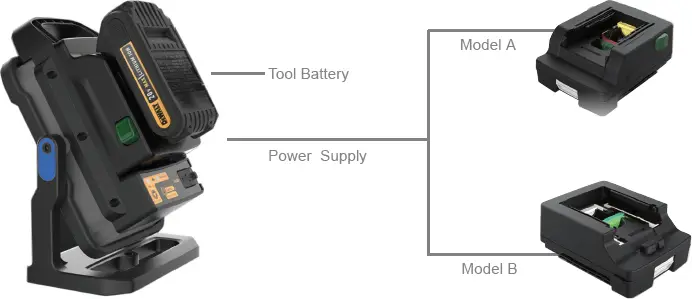

1. 1 Power supply—7 brands of tool batteries.

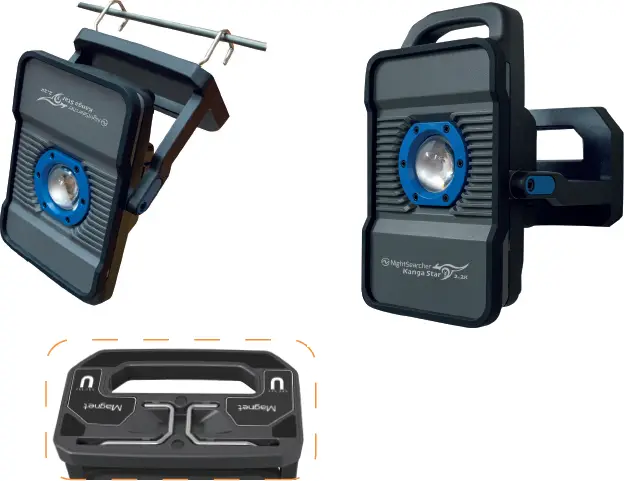

1.2 Hook & Rotatable
1.3 Angle Adjustable

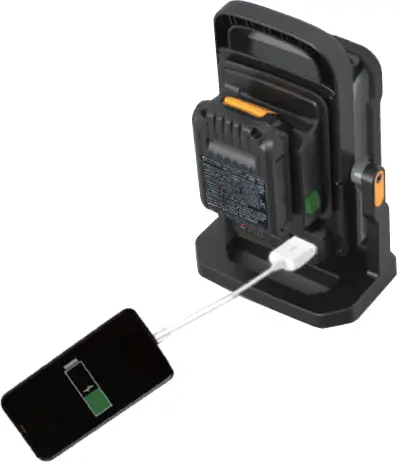

1.4 USB Output

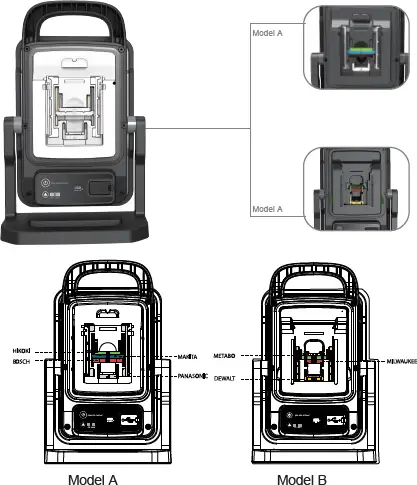

Power tool adaptors
Model A or B
3 OPERATION INSTRUCTION
3.1 Tool battery
3.1.1 Battery installation
MODEL A
HIKOKI Battery(14.4V-18V)
1.Pull the “H” up.
2.Slide the battery into the adaptor.
MAKITA Battery(14.4V-18V)
1.Pull the “M” up.
2.Slide the battery into the adaptor.
BOSCH Battery(14.4V-18V)
1. Pull the “B” up.
2. Slide the battery into the adaptor.
MODEL B

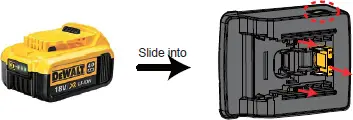

DEWALT Battery(14.4V or 18V)
1.1 Pull the “DE” up.
1.2 Press the buttons on both sides
to make sure “DE/MI” up.
1.3 Slide the battery into the adaptor.

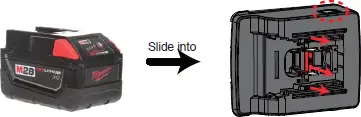

MILWAUKEE Battery(14.4V or 18V)
1.1 Pull the “MI” up.
1.2 Press the buttons on both sides
to make sure “DE/MI” up.
1.3 Slide the battery into the adaptor.

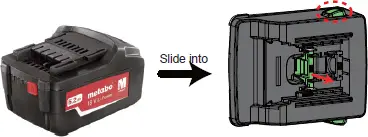

METABO Battery(14.4V or 18V)
1.1 Pull the “ME” up.
1.2 Make sure “DE/MI” down.
1.3 Slide the battery into the adaptor.

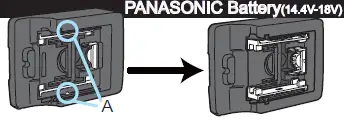

PANASONIC Battery(14.4V-18V)
1. Pull the “P” up.
2. Push the component “A” on both side.
3. Press the battery into the adaptor.
△ Red indicator is for 18V.
Green indicator is for 14.4V.
△ Adaptor has a memory for the battery voltage.
That means when switching to 14.4V, the default
voltage memory will be at 14.4V.
When the battery is inserted into the light. Red indicator on.
5S red indicator off.

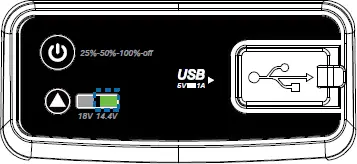

3.1.2 Choose the right battery voltage
18V Battery
Press Voltage Switch.
Please make sure the voltage indicator is red.
14.4V Battery
Press Voltage Switch.
Please make sure the voltage indicator is green.

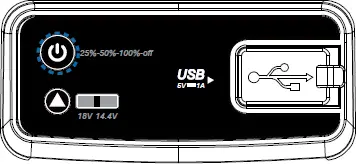

3.1.3 Press the switch to turn on the light
3 SPECIFICATION
| Model NO. | KANGASTAR-2.2K-A | KANGASTAR-2.2K-B |
| Power | 20W | |
| Battery | Tool battery(14.4V-18V): HIKOKI/MAKITA/BOSCH/PANASONIC | Tool battery(14.4V-18V): METABO/DEWALT/MILWAUKEE |
| Lumens | 2200lm | |
| RA | 70 | |
| CCT | 4000K(optional) | |
| IP | IP65(without tool battery) | |
| Other Features | USB output(Max 5V 1A)/Manget and hanging hook on the rotating stand | |
| Working Mode | 25%/50%/100%/OFF | |
| Accessory | Waterproof Bag | |
| Operation Temp. | -10℃~45℃ | |
| Storage Temp. | 0℃~25℃ | |
| Beam Angle | 60 degree | |
All NightSearcher products have a 3-year standard warranty on all manufacturing
defects and 1-year warranty on all rechargeable batteries from the date of purchase.
For extended 5 year warranty please visit
https://nightsearcher.co.uk/en/extended-warranty.html proof of purchase is required
Product weight 2.2kg
Product size 215x150x98mm
NS Part No. NSKANGASTAR2.2K-A/B
