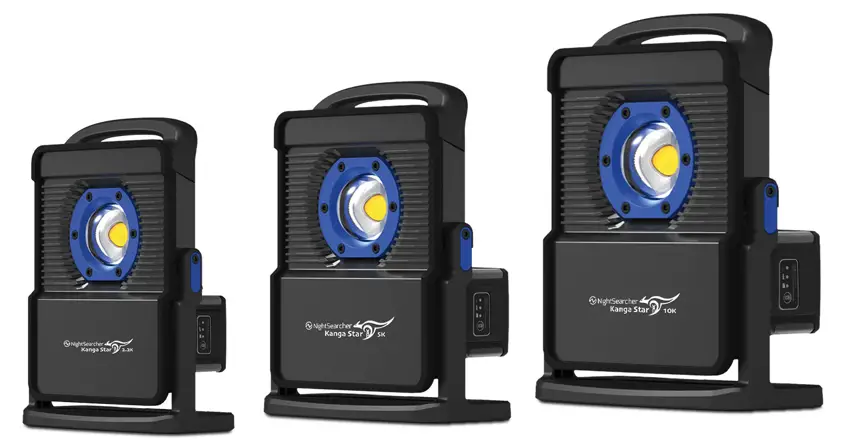

Kanga Star 5K
Kanga Star 10K
Instruction Manual
Introduce
Operation instruction

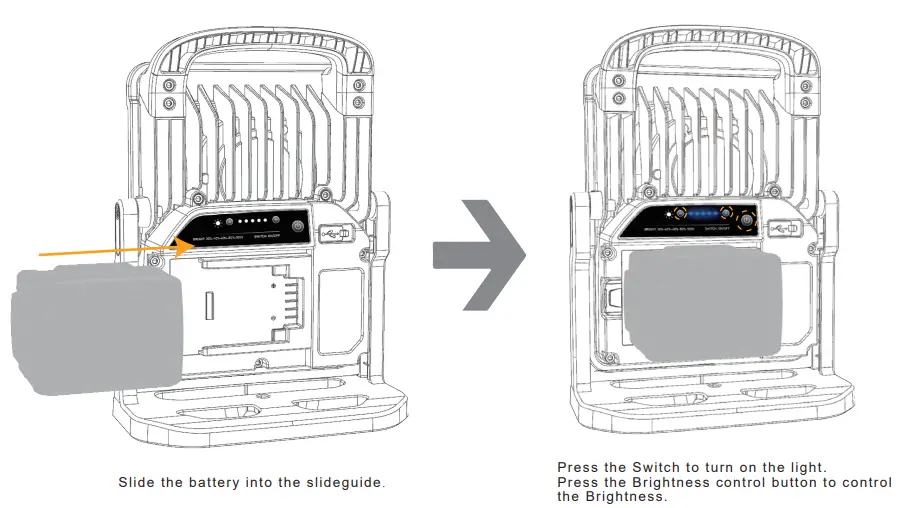

Install battery

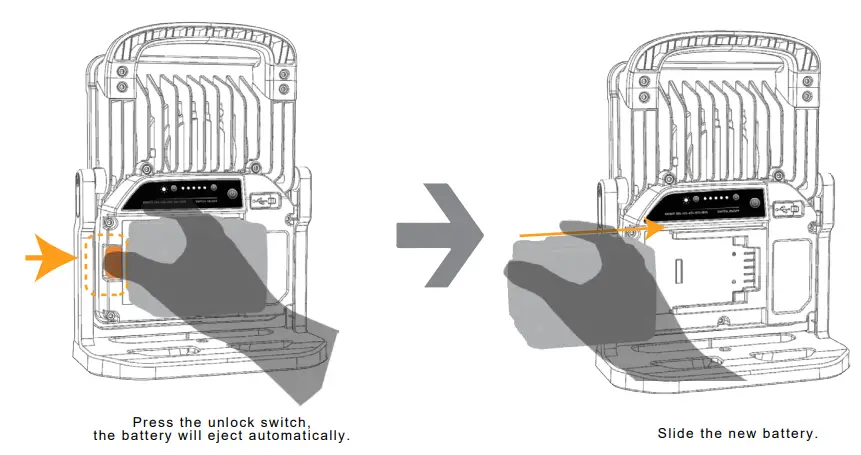

Replace battery

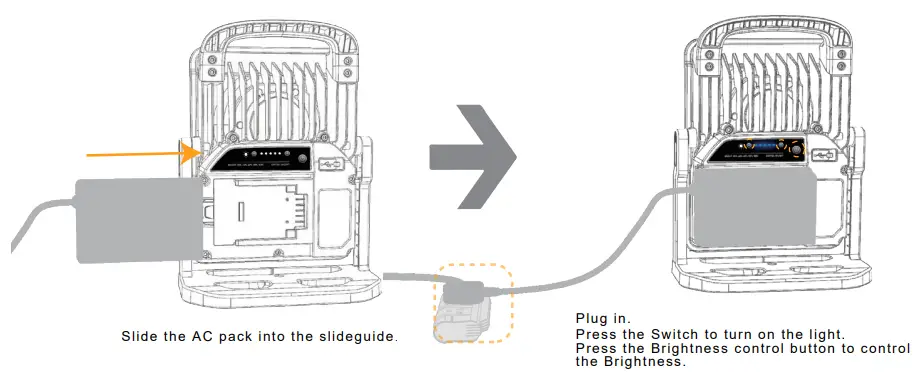

Install AC pack
Charging
Transform adaptor with tool battery power supply.

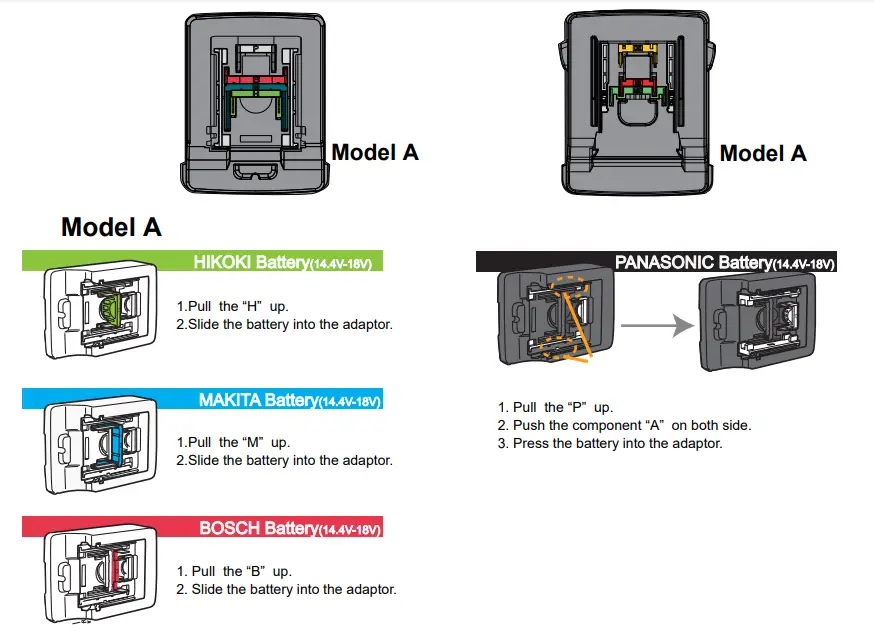

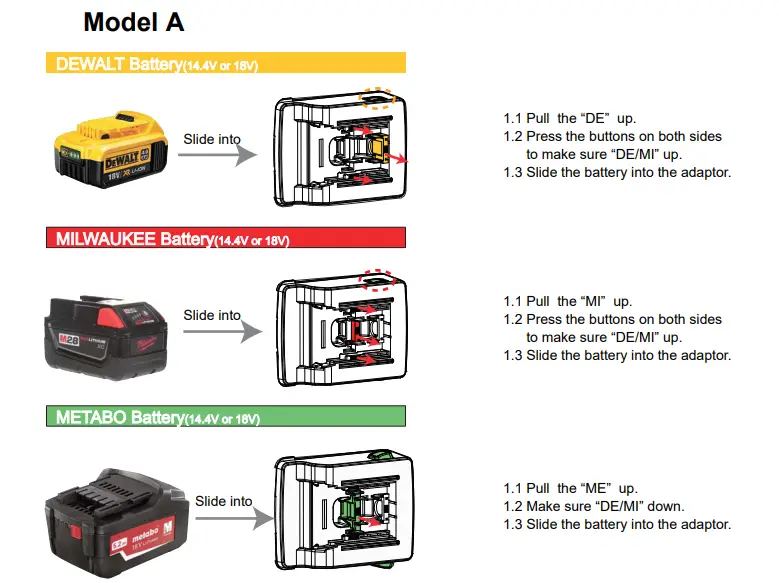

2.5.1 Battery installation

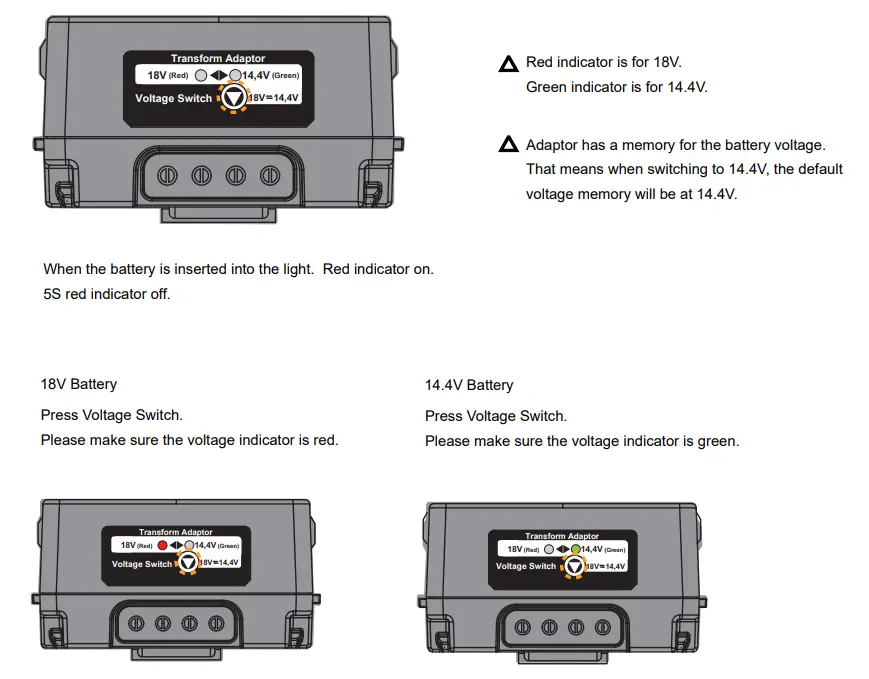

2.5.2 Choose the right battery voltage

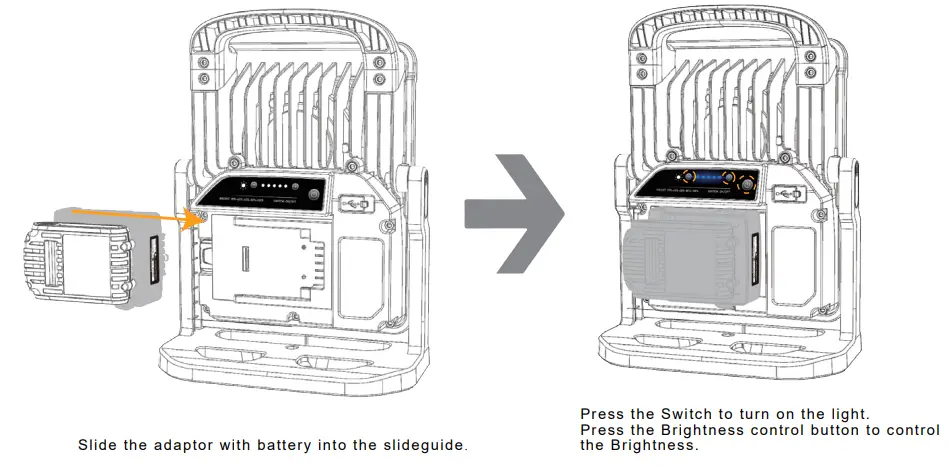

2.5.3 Turn on the light
Specification
| Model NO. | Kangar 5K | Kangar 10K | |
| Power | 40W | 80W | |
| LED Chip | COB chip | ||
| RA | >80 | ||
| CCT | 4000K | ||
| Lumens | 5000LM(mAx) | 10000LM(MX) | |
| Battery | 19.2V 6.0Ah LiFePO4 Batter(universal) | ||
| Burning Time | 5,000LM-2.5-3.5H 2,500LM-5-6H | 10,000LM-1.5-2H 5,000LM-2-3H | |
| Charging Time | 1.5-2h/battery(fast charging) | ||
| AC Pack/Charger | 21.6V 4A output .(universal) | ||
| Operation | 20%-40%-60%-80%-100%-OFF | ||
| Working Temp.(Ac supply) | -20 C — 50t | ||
| Working Temp.(cc supply) | -10 t — 45t | ||
| Storage Temp. | 0 t — 25t | ||
| Beam angle | 120degree | ||
| IP rate | IP 65 | ||
| NS CODE | NSKANGASTAR5K-A/B | NSKANGASTAR10K- A/B | |
| -Dimensions | 290x145x265mm | 265x145x360mm | |
| Weight | 1.48kg | 3kg | |
http://nightsearcher.com/en/warranty.html
All NightSearcher products have a 3-year standard warranty on all manufacturing defects and a 1-year warranty on all rechargeable batteries from the date of purchase.
For an extended 5 year warranty please visit https://nightsearcher.co.uk/en/extended-warranty.html proof of purchase is required
