OWNER’S MANUAL
PRO-X8.4RGBCAP
8″ MID-RANGE LOUDSPEAKER
4Ω
SPECIFICATIONS
Nominal Diameter …………………………………………………….8″ / 203.2 mm
Nominal Impedance ………………………………. 4 OHMS
RMS Power Handling………………………… 275 Watts
MAX Power Handling ………………………….. 550 Watts
Sensitivity (1w/1m) ……………………………………….. 96 dB

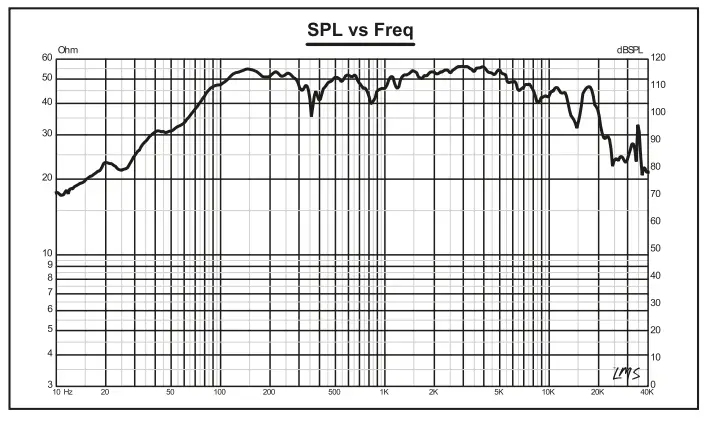

Frequency Response ………………………..115Hz-16KHz
Recommended Hi Pass Crossover ……………………… 120 Hz
Sold as Pair or Single ……………………………Single
Grill Included ……………………………….. No
Recommended Grill …………………………PRO-GRILL8, PRO-GRILL8RGB, PRO-GRILL8LGO, PRO-GTW8
MOTOR
Voice Coil Diameter …………………………..1.5″ / 38.6 mm
VC Former Material …………………………………….. Kapton
Winding Material …………………………………………. CCAW
Cone Material …………………………….Paper
Dust Cap Material…………………………………..Translucid PP with RGB LED
Surround Material ………………………. Cloth
Basket Material ………………………………. Steel
Basket Color ……………………..Glossy Red
Magnet Material …………………………………………….. Ferrite
Magnet Weight ………………………………………..30 Oz
Displacement Volume ………………………0.046 L
THIELE & SMALL PARAMETERS
Equivalent Volume ………………..Vas……………………………..7.12L / 0.25ft3
Excursion (one way) …………………..Xmax …………………………………….. 9.3 mm
Free Air Resonance …………….Fs ………………………………………….. 114 Hz
Mechanical Factor ………………….Qms …………………………………………..9.052
Electrical Factor …………………………Qes ……………………………………………0.877
Total Factor ……………………………………Qts ……………………………………………….. 0.8
Moving Mass …………………………..Mms …………………………………….. 17.699g
Compliance ………………………………Cms …………………………………….0.11 m/N
Bl Factor ………………………..Bl……………………………………………….6.945
Voice Coil Inductance …….Le …………………………………………..5.31mH
Diaphragm Area …………………Sd…………………………………….213.82 cm2
DC Resistance ………………………….Re………………………………. 3.2 ohms

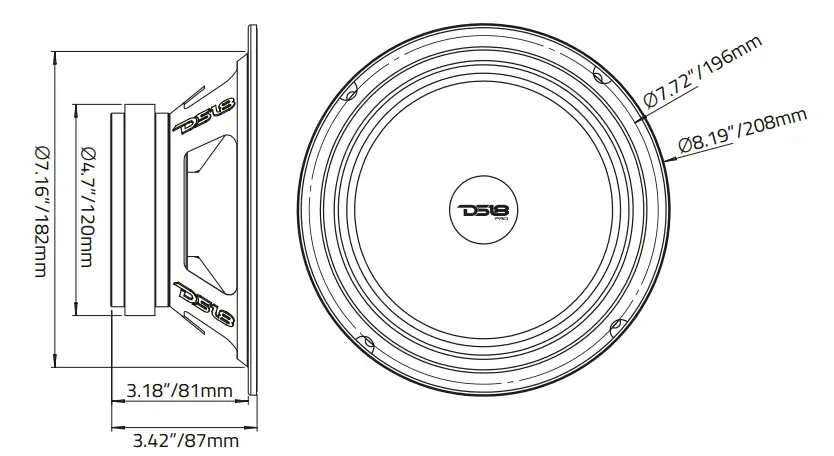

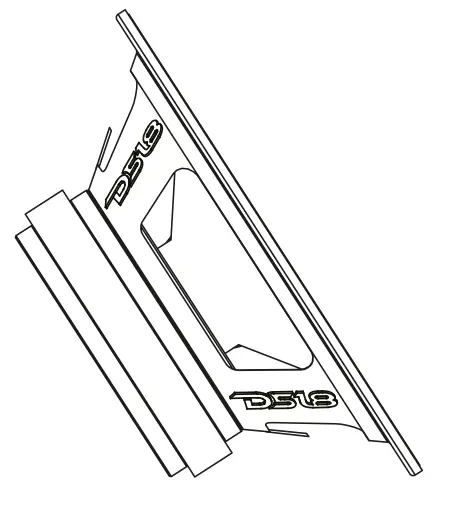

MEASUREMENTS
Overall Diameter…………………………… 8.19″ / 208mm
Overall Depth………………………………………………..3.42″ / 87mm
Front Mount Baffle Cutout ………………………………. 7.16″ / 182mm
Mounting Depth …………………………………………….3.18″ / 81mm
Motor Diameter……………………………………………………4.7″ / 120mm
MEASUREMENTS
WARRANTY
Please visit our website DS18.com for more information on our warranty policy.
We reserve the right to change products and specifications at any time without notice.
Images may or may not included optional equipment.
WARNING:
Cancer and Reproductive Harm.
www.P65Warning.ca.gov

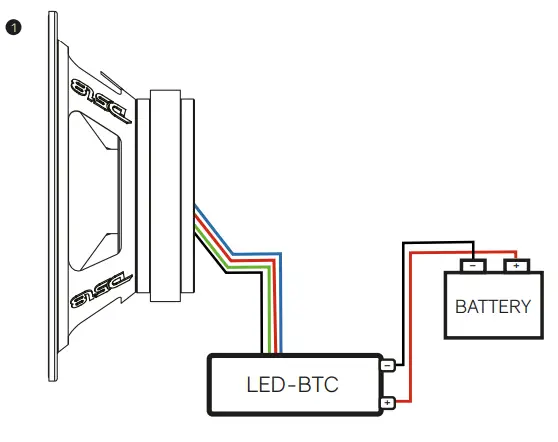

INSTALLATION & CONNECTION OPTIONS
Blue LED (-)
Red LED (-)
Green LED (-)
12V DC (+)

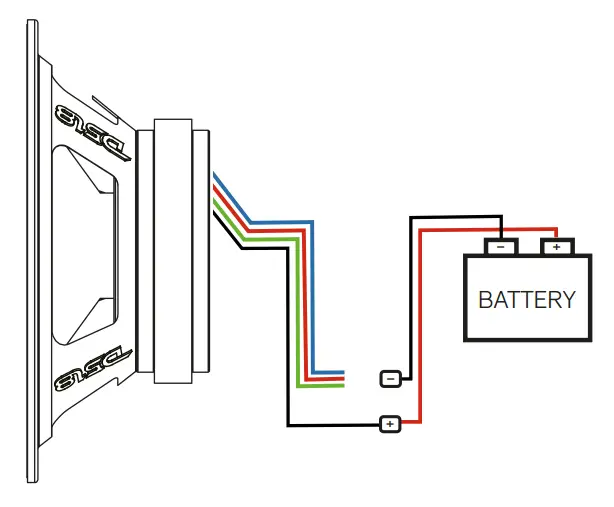

2 To connect without LED Control Module (LED-BTC), Connect as Shown in the Following Diagram:
Black wire “BK” Connected to Battery Positive (+) 12V
White Color Light “R” ; “B” and “G” Connected to Battery Negative (-)
Green Color Light “G” Connected to Battery Negative (-)
Red Color Light “R” Connected to Battery Negative(-)
Blue Color Light “B” Connected to Battery Negative (-)
Purple Color Light “R” and “B” Connected to Battery Negative(-)
Yellow Color Light “R” and “G” Connected to Battery Negative (-)
Cyan Color Light ”B” and “G” Connected to Battery Negative (-)
Blue LED (-) Red LED (-) Green LED (-) 12V DC (+)
FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
