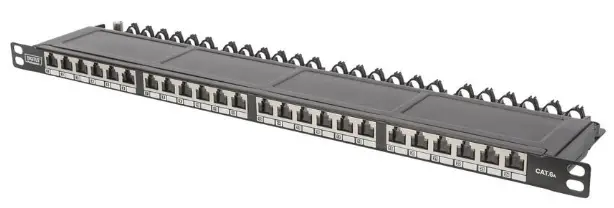

DIGITUS DN-91624S-SL-EA Patch Panel

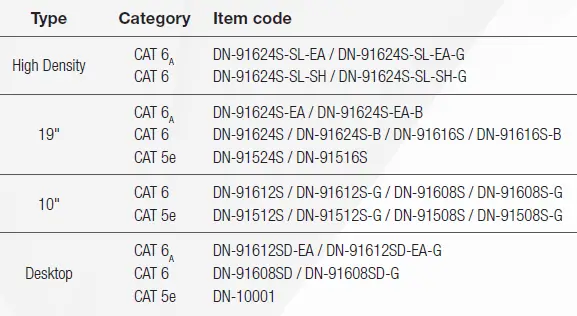

SPECIFICATION
INSTALLATION GUIDE

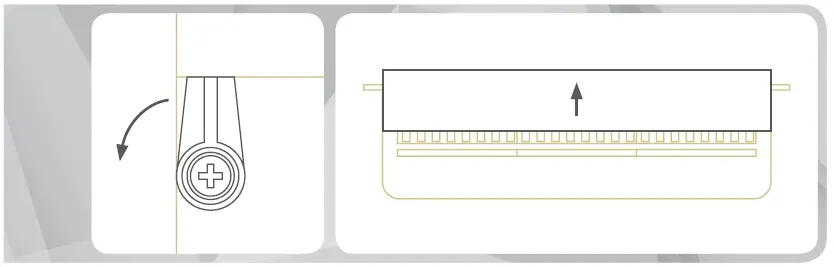

Step 1:
REMOVE THE COVER
Loosen the quick fasteners on the left and right and remove the housing cover.

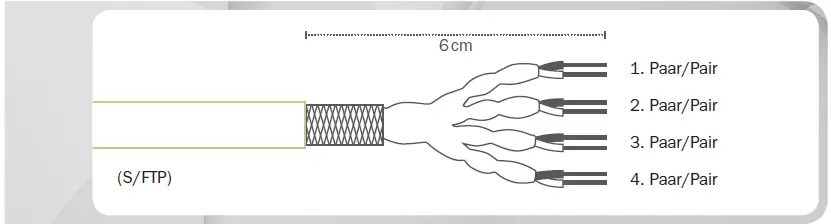

Step 2:
REMOVE THE CABLE SHEATH
Cut and remove approx. 6 cm of the cable sheath using a cable stripper.
- S/FTP: Route the braid shield twisted along the cable to the back.
- F/UTP: Wrap the drain wire around the cable sheath.
- U/FTP: Wrap the drain wire around the cable sheath.

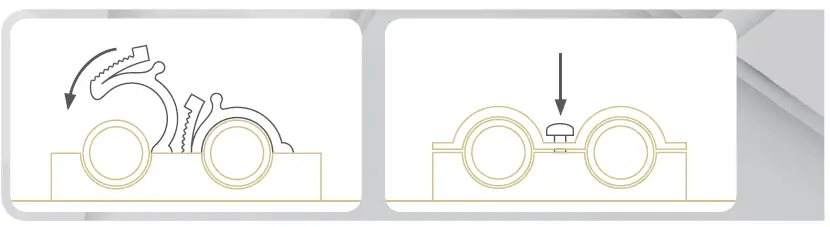

Step 3:
CABLE FIXINGS
Locking clamp – Fix the data cable with a locking clip. For grounding, the braid shield (S/FTP); drain wire (F/UTP, U/FTP) with the front locking clamp (metallized).
Cable clamp – Fix the data cable with a cable clamp and tighten the screw. Two data cables are fixed at the same time. For grounding, the braid shield (S/FTP); drain wire (F/UTP, U/FTP) with the cable clamp.

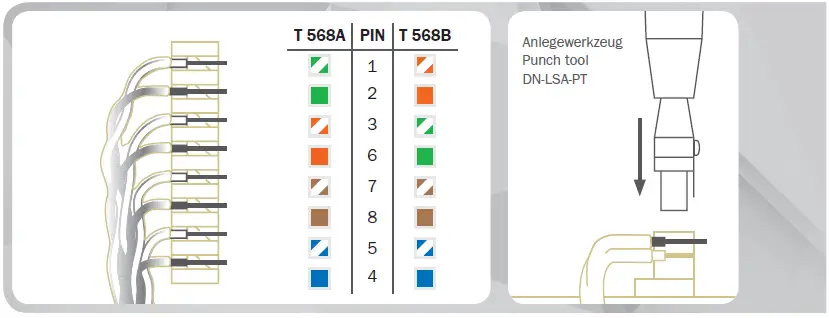

Step 4:
CONNECTION (T568A / T568B)
Lay the wires in the insulation displacement clamp according to the special ed coding, the twisting and the foil shield (S/FTP, U/FTP) must be maintained up to the insulation displacement terminal!
Press the wires into the insulation displacement clamp with the help of a punch-down tool (DN-LSA-PT) and cut off the excess wire ends.

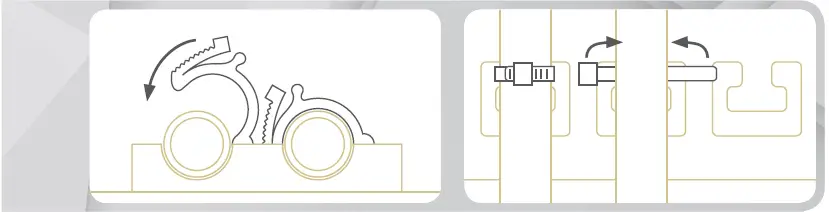

Step 5:
STRAIN RELIEF
Locking clamp – Fix the data cable to the strain relief by means of (rear) locking clamp.
Cable tie – Fix the data cable with a cable tie.

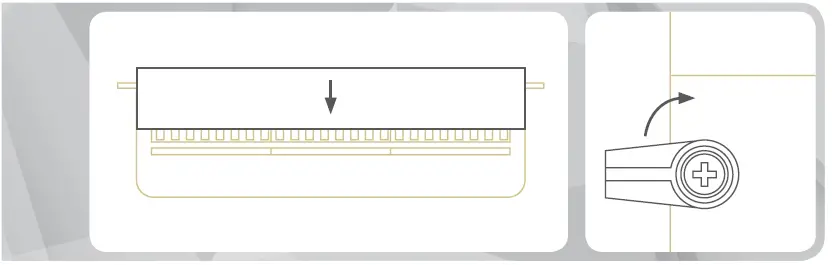

Step 6:
INSTALL THE COVER
Place the housing cover on the patch panel and close the quick fasteners.
ASSMANN Electronic GmbH declares that the product complies with the requirements and provisions of RoHS directive 2011/65/EU. You can request the complete Declaration of Conformity by post at the manufacturer’s address as stated below.
ASSMANN Electronic GmbH,
Manufactured in P.R.C.
