Intellinet 162470 Cat5e Wall-mount Patch Panel Instructions

Cat5e Wall-mount Patch
Panel Instructions

Model 162470
Important: Read before use.

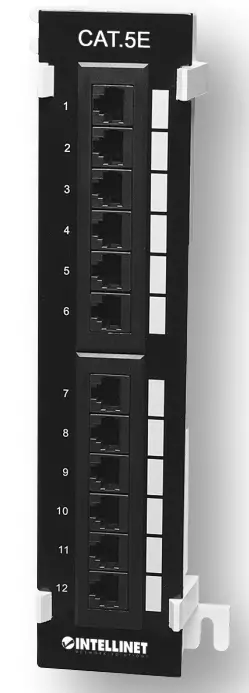

162470 Cat5e Wall-mount Patch Panel

Note:
These instructions can be used for any Patch Panel in the Intellinet line. Your model may differ from the one shown.

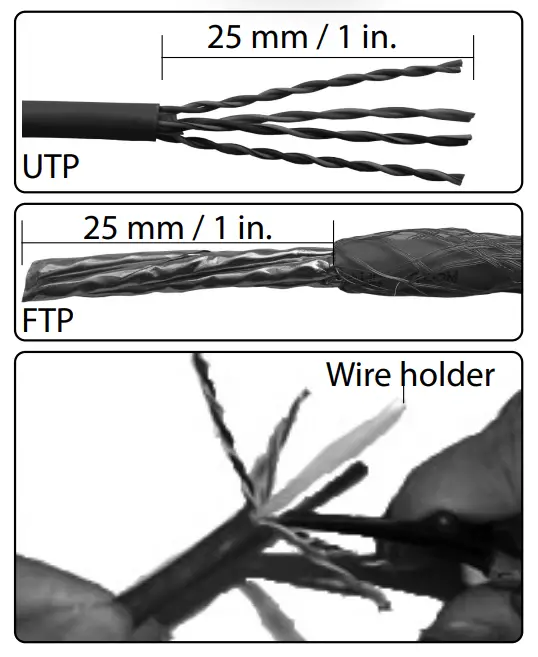

Strip away 25-30 mm of the cable jacket and separate the wires into 4 pairs. Cut the wire holder flush with the cable jacket.

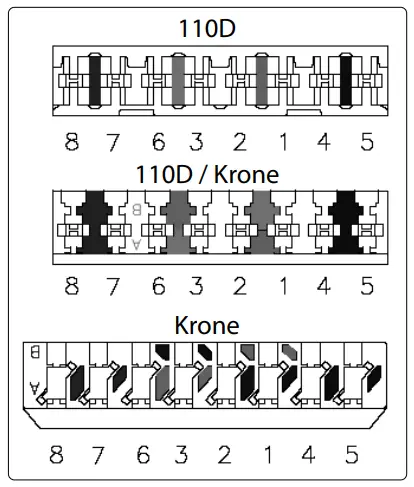

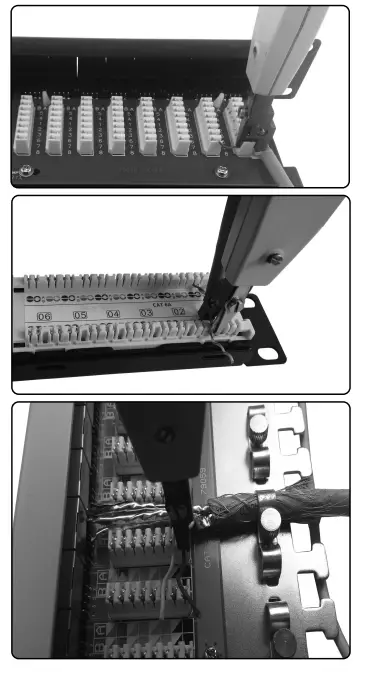

Refer to the IDC color codes on the back page to position each wire, and connect it to the patch panel using a Krone or 110D punch-down tool.

For additional benefits
Scan to register your product warranty or go to: register.intellinet-network.com/r/162470

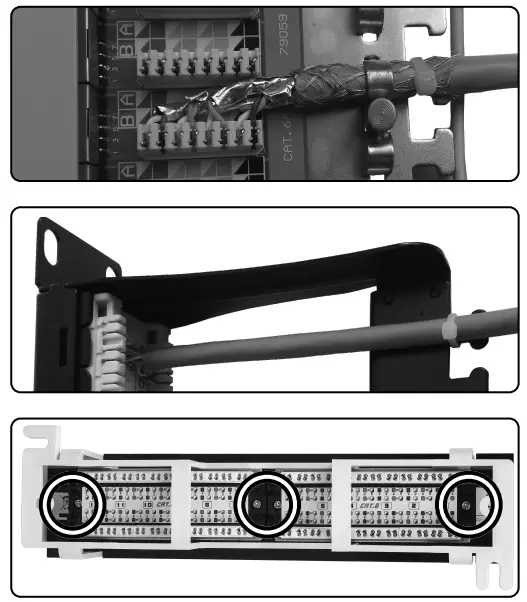

Attach the cables to a cable manager using cable ties, then position the patch panel as desired.

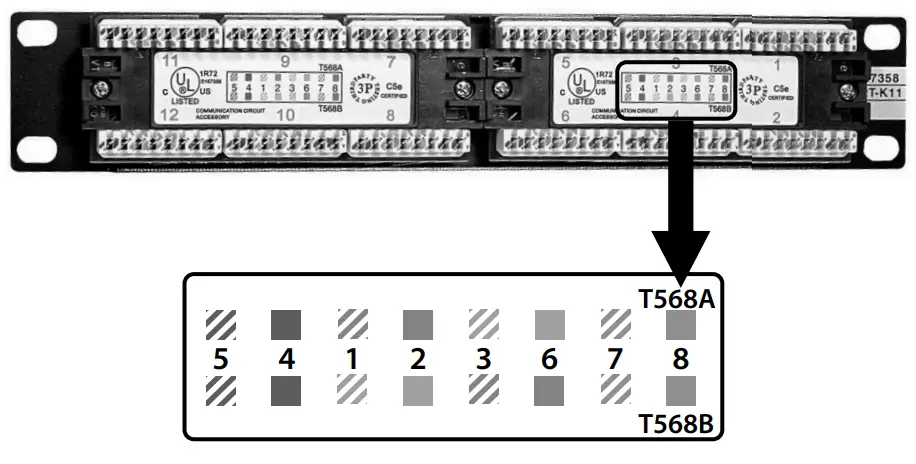

IDC COLOR CODES
T568A

T568B

REGISTRATION:

Scan the QR code on the other side or visit: register.intellinet-network.com/r/162470

WASTE ELECTRICAL & ELECTRONIC EQUIPMENT
Disposal of Electric and Electronic Equipment (applicable in the E.U. and other countries with separate collection systems)

This symbol on the product or its packaging means that this product must not be treated as unsorted household waste. In accordance with EU Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this electrical product must be disposed of in accordance with the user’s local regulations for electrical or electronic  waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality.

WARRANTY

intellinetnetwork.com

REGULATORY STATEMENTS
CE
The Declaration of Conformity for is available at: support.intellinet-network.com/barcode/162470

North & South America
IC Intracom Americas
550 Commerce Blvd.
Oldsmar, FL 34677, USA

All trademarks and trade names are the property of their respective owners. © IC Intracom.
All rights reserved. Intellinet Network Solutions is a trademark of IC Intracom, registered in the U.S. and other countries.

Printed on recycled paper.
