Cat6 Rackmount Patch
Model 720786

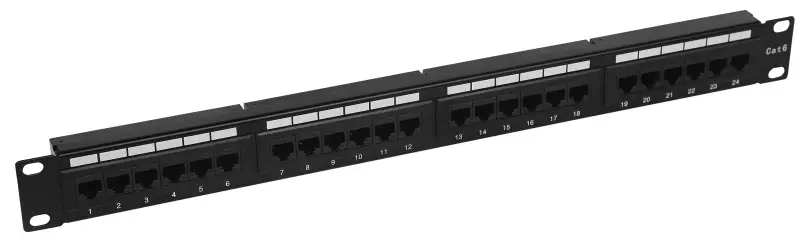

720786 Cat6 Rackmount Patch Panel
Important: Read before use.
These instructions can be used for any Patch Panel in the Manhattan line. Your model may differ from the one shown.

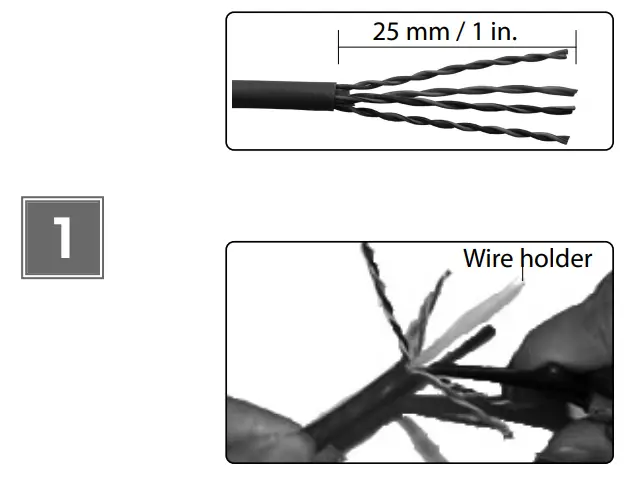

Strip away 1 – 1.2 in. (25 – 30 mm) of the cable jacket and separate the wires into 4 pairs. Cut the wire holder (if present) flush with the cable jacket.
Strip away 1 – 1.2 in. (25 – 30 mm) of the cable jacket and separate the wires into 4 pairs. Cut the wire holder (if present) flush with the cable jacket.

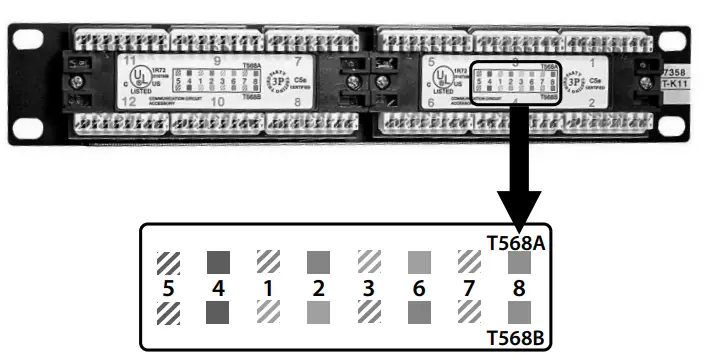

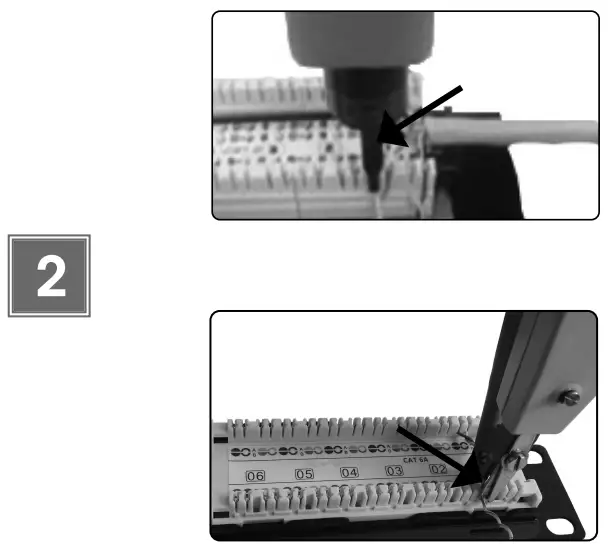

Refer to the IDC color codes on the back page to position each wire, and connect it to the patch panel using a Krone or 110D punch-down tool.

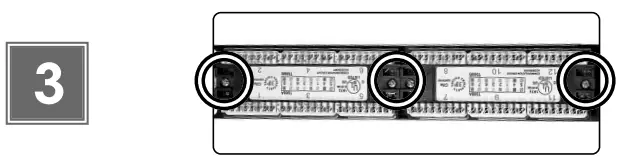

Attach the cables to a cable manager using cable ties, then position the patch panel as desired.
COLOR CODES
| T568A | |
| Pin 5 | White/Blue |
| Pin 4 | Blue |
| Pin 1 | White/Green |
| Pin 2 | Green |
| Pin 3 | White/Orange |
| Pin 6 | Orange |
| Pin 7 | White/Brown |
| Pin 8 | Brown |
| T568B | |
| Pin 5 | White/Blue |
| Pin 4 | Blue |
| Pin 1 | White/Orange |
| Pin 2 | Orange |
| Pin 3 | White/Green |
| Pin 6 | Green |
| Pin 7 | White/Brown |
| Pin 8 | Brown |
REGISTRATION:
Scan the QR code on the other side or visit: register.manhattanproducts.com/r/720786
WASTE ELECTRICAL & ELECTRONIC EQUIPMENT
Disposal of Electric and Electronic Equipment (applicable in the E.U. and other countries with separate collection systems)
This symbol on the product or its packaging means that this product must not be treated as unsorted household waste. In accordance with EU Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this electrical product must be disposed of in accordance with the user’s local regulations for electrical or electronic waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality.
