Dewertokin Technology Group Rf48 Remote Control User Manual

RF48
User Manual

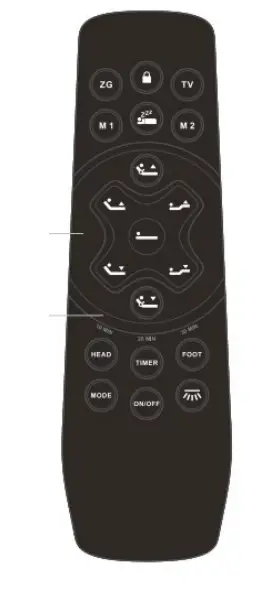

 appearance

• Key function

Key-value	Specification
PAIR	press and hold and button, the remote enters pairing mode
HEAD-UP	Press and hold button, the head actuator moves out, stop when released
HEAD DOWN	Press and hold button, the head actuator moves in, stop when released
FOOT UP	Press and hold button, foot actuator moves out, stop when released
FOOT DOWN	Press and hold button, foot actuator moves in, stop when released
LUMBAR UP	Press and hold button, Lumbar actuator moves out, stop when released
LUMBAR DOWN	Press and hold button, Lumbar actuator moves in, stop when released
FLAT	Press and hold button, the bed goes flat
ZG	Click the button, the bed moves to zero position, press and hold zero buttons for 5s, until backlight flashes, the control set the current position as zero position
TV	Click the button, the bed moves to TV position, press and hold TV button for 5s, until backlight flashes, the control set the current position as the TV position
Antisnore	Click the button, the bed moves to Anti snore position, press and hold Anti snore button for 5s, until backlight flashes, the control set the current position as Anti snore position
MI	Click the button, the bed moves to M I position, press and hold MI button for 5s until backlight flashes, the control set the current position as MI position
M2	Click the button, the bed moves to M2 position, press and hold M2 button for 5s, until backlight flashes, the control set the current position as M2 position
UBB	Click button, open or close under bed light
CHILD LOCK	Press and hold the button for 5s until the backlight flashes, then the lock/unlock is complete. In the locked state, press any button except this button and the pairing button, the backlight flashes
Massage head+	Click button, head massage motor switches massage intensity, massage intensity switches among 0-1-2-3 ；
Massage timer	Click If the massage motors do not work, the button is invalid, if the massage motors work, click the button to switch the massage time, when massage time switch to 0, turn off the massage;
Massage foot+	Click button, foot massage motor switches massage intensity, massage intensity switches among 0-1-2-3；
Massage Mode	Click the button, to switch the massage mode of massage motors, massage mode switches among type0→type1→type2→type3→type0; this button can only switch the massage mode, it can not open massage motors；
MASSAGE ON/OFF	click the button to turn on/off head&foot massage

• FCC Warning ：
• Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
• This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
• ISED Warning:
• This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
• (1) this device may not cause interference, and
  (2) this device must accept any interference, including interference that may cause undesired operation of the device.
