Dewertokin Technology Group RF4517 Remote Control

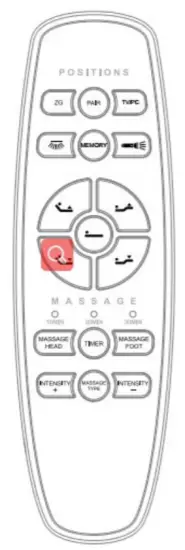

Appearance
Key function
Key value | Specification |
| PAIR | Press and hold  button ,the remote enters pairing mode, backlight LED flashes, When the pair succeeds, the backlight stops flashing then normally on. |
| HEAD UP | Press and hold  button, head actuator moves out, stop when released |
| HEAD DOWN | Press and hold button, head actuator moves in, stop when released |
| FOOT UP | Press and hold  button, foot actuator moves out, stop when released |
| FOOT DOWN | Press and hold  button,foot actuator moves in, stop when released |
| FLAT | Click  button, the bed goes flat |
| ZG | Click  button, the bed moves to zeroG position, press and hold zeroG button for 5s, until backlight flashes, the control set the current position as zeroG position |
| TV/PC | Click  button, the bed moves to TV/PC position, press and hold TV/PC button for 5s, until backlight flashes, the control set the current position as TV/PC position |
| UNDER BED LIGHT | Click  button, the under bed light switch its on/off state; After the under bed light opens, if do not manually close, it will automatically turn off after 5 minutes; |
| MEMORY | Click  button, the bed moves to MEMORY position, press and hold MEMORY button for 5s, until backlight flashes, the control set the current position as MEMORY position |
| FLASH LIGHT | Press and hold  button, open flash light, close when released |
| MASSAGE HEAD | Click  button, head massage motor switch its intensity among 1-2-3-0 |
| MASSAGE FOOT | Click  button, foot massage motor switch its intensity among 1-2-3-0 |
| TIMER | If the massage motors do not work, the button is invalid, if the massage motors work, click  button to switch the massage time, when massage time switch to 0, turn off the massage; |
| INTENSITY+ | if the massage motors work,click  button to increase massage intensity among 1-2-3-0. |

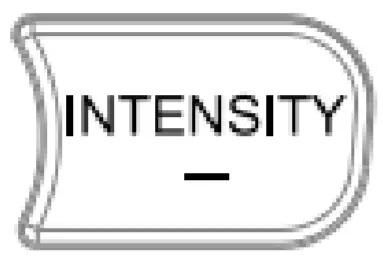

| INTENSITY- | if the massage motors work,click  button to decrease massage intensity among 3-2-1-0. |

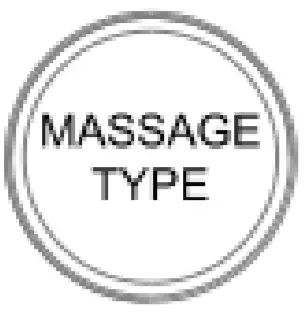

| MASSAGE TYPE | Click  button, to switch the massage mode of massage motors,massage mode switches among type0→ type1→ type2→ type3→ type0; this button can only switch the massage mode, it can not open massage motors； |
FCC Warning：
Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
ISED RSS Warning:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
