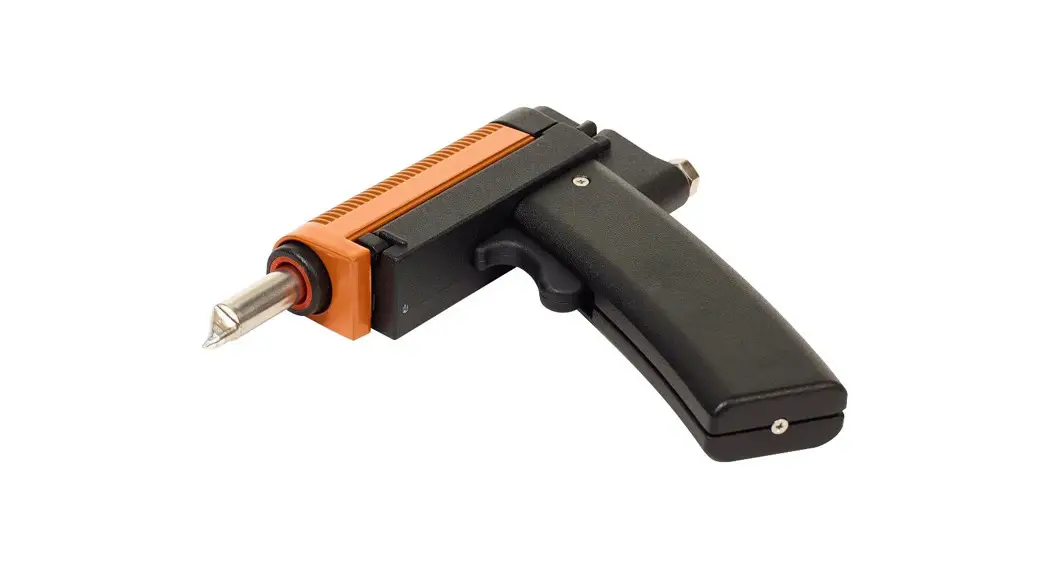

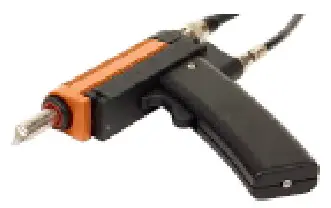

DSC-6 DSC De-Solder Cartridges
DSC De-Solder Cartridges are compatible with MX-500, MX-5000, MX-5200 AND CV-5200, CV-500 Systems – MX-DS1 and CV-H5-DS Hand pieces.
STDC De-Solder Cartridges are compatible with MX-500, MX-5000 and MX-5200 Systems – MX-DS1 Hand piece.
| Temperature | CV-Serie | MX-Serie | Application |
| 675 °F/357 °C | DSC-6 | STDC-0 | Temperature Sensitive |
| 775 °F/413 °C | DSC-7 | STDC-1 / 7xxL | Most Standard |
| 875 °F/468 °C | DSC-8 | Ceramic and High Thermal Demand | |
| 925 °F/496 °C | DSC-9 | STDC-8 |
Please note the above temperatures are the maximum temperatures of the heater. The idle temperature is dependent on the geometry of the cartridge (up to 15 ˚C lower.)
These tips will provide data via the CV series power supplies, but due to the nature of their application the Connection Validation function is not required and therefore, not enabled

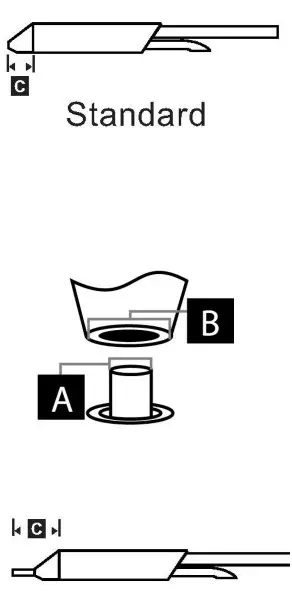

| Desolder Cartridges | A | B | C | |||
|
Long Reach DSC-xxxA /STDC-xxxL = Long Reach Desolder Cartridge to remove components form high density packed PCB’s. | DSC- CN0006S | STDC- 02 |
–
STANDARD | |||
| DSC- CN0006S | STDC- 02 | 0.64 mm | 1.40 mm | 11.43 mm | ||
| DSC- CN0006S | (0.025″) | (0.055″) | (0.45″) | |||
| DSC- CN0006S | STDC- 02 | |||||
| DSC- CN0008S | STDC- 03 | |||||
| DSC- CN0008S | STDC- 03 | 0.76 mm | 1.68 mm | 11.17 mm | ||
| DSC- CN0008S | (0.029″) | (0.066″) | (0.44″) | |||
| DSC- CN0008S | STDC- 03 | |||||
| DSC- CNO010S | STDC- 04 | |||||
| DSC- CNO010S | STDC- 04 | 1.02 mm | 1.78 mm | 10.92 mm | ||
| DSC- CNO010S | (0.04″) | (0.07″) | (0.43″) | |||
| DSC- CNO010S | STDC- 04 | |||||
| DSC- CNO013S | STDC- 05 | |||||
| DSC- CNO013S | STDC- 05 | 1.27 mm | 2.03 mm | 10.66 mm | ||
| DSC- CNO013S | (0.05″) | (0.08″) | (0.42″) | |||
| DSC- CNO013S | STDC- 05 | |||||
| DSC- CNO015S | STDC- 06 | |||||
| DSC- CNO015S | STDC- 06 | 1.52 mm | 2.29 mm | 10.41 mm | ||
| DSC- CNO015S | (0.06″) | (0.09″) | (0.41″) | |||
| DSC- CNO015S | STDC- 06 | |||||
| DSC- CNO024S | STDC- 07 | |||||
| DSC- CNO024S | STDC- 07 | 2.41 mm | 3.18 mm | 9.14 mm | ||
| DSC- CNO024S | (0.09″) | (0.12″) | (0.36″) | |||
| DSC- CNO024S | STDC- 07 | |||||
| DSC- CN0008A | ||||||
| DSC- CN0008A | STDC- 03L | 0.76 mm | 1.68 mm | 21.33 mm | ||
| DSC- CN0008A | (0.03″) | (0.06″) | (0.84″) | |||
| DSC- CN0008A | STDC- 03L | |||||
| DSC- CNO010A | ||||||
| DSC- CNO010A | STDC- 04L | 1.02 mm | 1.79 mm | 21.08 mm | ||
| DSC- CNO010A | (0.04″) | (0.07″) | (0.83″) | |||
| DSC- CNO010A | STDC- 04L | |||||
| DSC- CNO013A | LONG REACH | |||||
| DSC- CNO013A | STDC- 05L | 1.27 mm | 2.03 mm | 20.82 mm | ||
| DSC- CNO013A | (0.05″) | (0.08″) | (0.82″) | |||
| DSC- CNO013A | STDC- 05L | |||||
