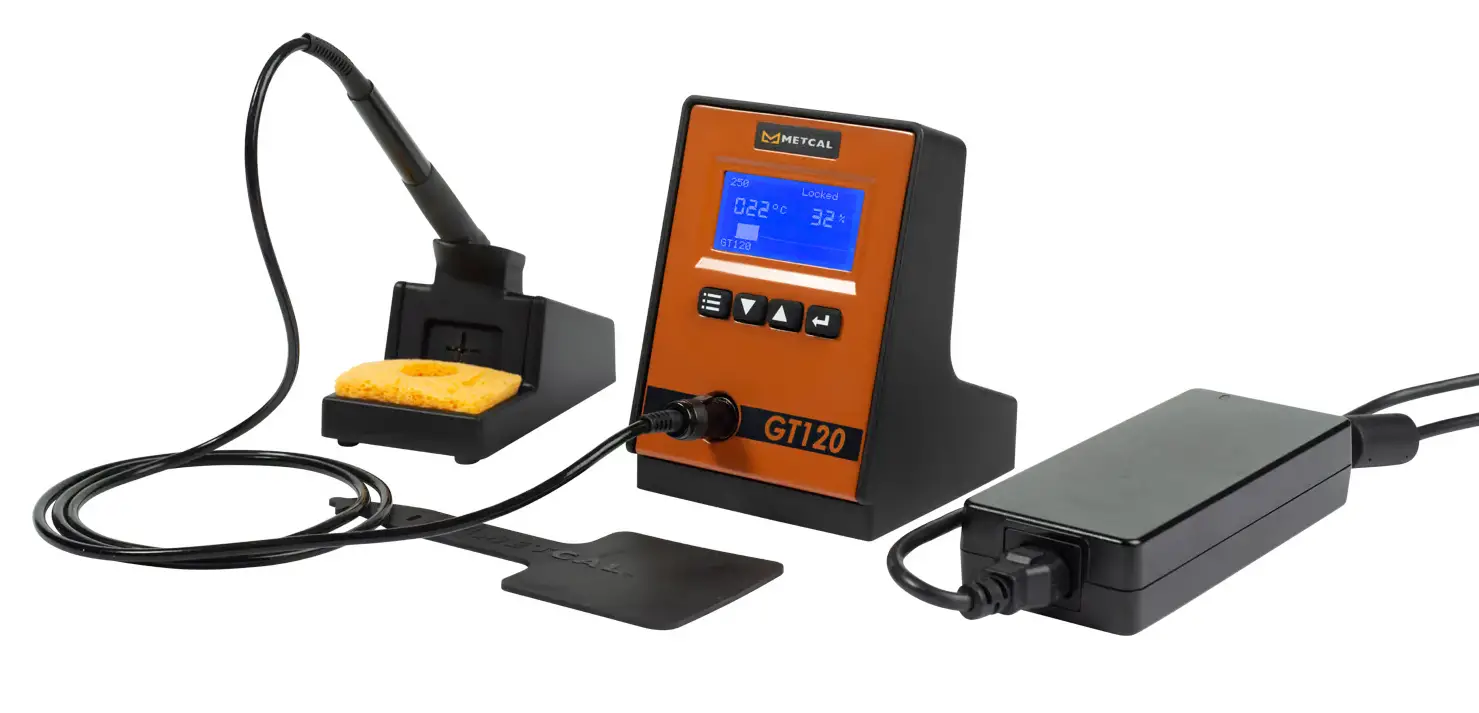

     Part Number

  Dimension Ax Length

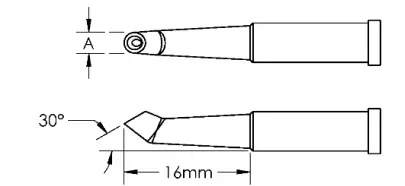

GT4-HF3025V

Concave, Bent 30°, (Bevel/L) 30° x 3.0 mm, (Ø X L) 2.5 x 16.0 mm

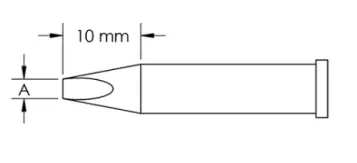

GT6-CH0010S GT6-CH0014S GT6-CH0018S GT6-CH0025S GT6-CH0032S GT6-CH0040S GT6-CH0050S GT6-CH0060S

1.0 x 10.0 mm

1.4 x 10.0 mm

1.8 x 10.0 mm

2.5 x 10.0 mm

3.2 x 10.0 mm

4.0 x 10.0 mm

5.0 x 10.0 mm

6.0 x 10.0 mm

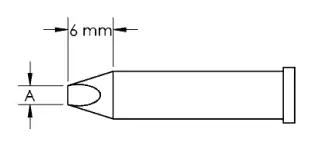

GT6-CN0005P

Power, (Ø X L) 0.5 x 6.0 mm Power, (Ø X L) 1.0 x 6.0 mm

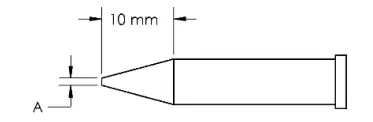

GT6-CN0005S

( Ø x L) 0.5 x 10.0 mm

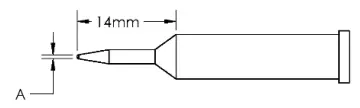

GT6-CN0005A

Conical, Access, (Ø X L) 0.5 x 14.0 mm Conical, Access, (Ø X L) 1.0 x 14.0 mm

      Dimension Ax Length

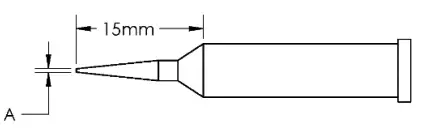

GT6-CN1502A GT6-CN1505A

Conical, Sharp, (Ø X L) 0.2 x 15.0 mm Conical, Sharp, (Ø X L) 0.5 x 15.0 mm

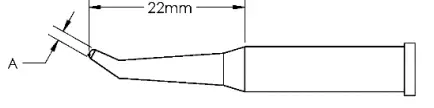

GT6-CN2213R

Conical, Bent, Reach, (Ø X L) 1.3 x 22.0 mm

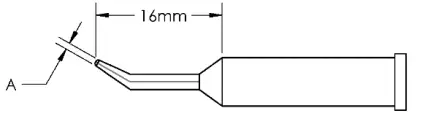

GT6-CN1608R

Bent, Access, (Ø X L) 0.8 x 16.0 mm

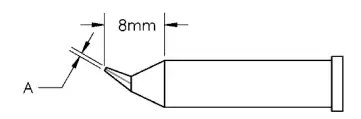

GT6-CN0002R GT6-CN0004R

Conical, Bent, (Ø X L) 0.2 x 8.0 mm Conical, Bent, (Ø X L) 0.4 x 8.0 mm

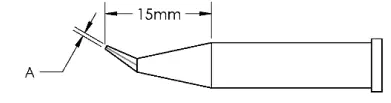

GT6-CN1505R

Conical, Bent, Reach, (Ø X L) 0.5 x 15.0 mm

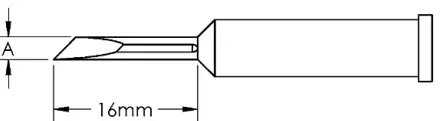

GT6-KN0025S

2.5 x 16.0 mm, 45°

5.0 x 16.0 mm, 45°

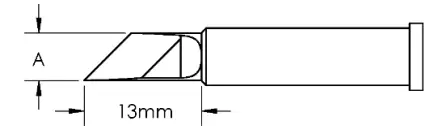

GT6-KN0025P

Power, 2.5 x 13.0 mm, 45°

Power, 5.0 x 13.0 mm, 45°

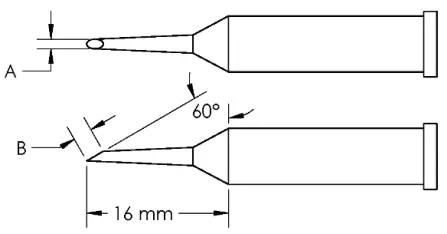

GT6-HF6010S

(Bevel/L) 60° x 2.0, (Ø X L) 1.0 x 16.0 mm

(Bevel/L) 60° x 3.0, (Ø X L) 1.5 x 16.0 mm

(Bevel/L) 60° x 4.0, (Ø X L) 2.0 x 16.0 mm

(Bevel/L) 60° x 6.0, (Ø X L) 3.0 x 16.0 mm

(Bevel/L) 60° x 8.0,  (Ø X L) 4.0 x 16.0 mm

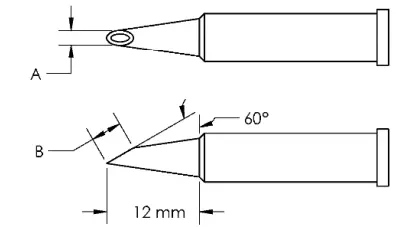

GT6-HF6010V

Concave, (Bevel/L) 60° x 2.1 mm, (Ø X L) 1.0 x 12.0 mm

Concave, (Bevel/L) 60° x 3.1 mm, (Ø X L) 1.5 x 12.0 mm

Concave, (Bevel/L) 60° x 4.1 mm, (Ø X L) 2.0 x 12.0 mm

Concave, (Bevel/L) 60° x 6.1 mm, (Ø X L) 3.0

x 12.0 mm

GT6-HF3025V

Bent 30°, (Bevel/L) 30° x 3.0 mm, (Ø X L) 2.5 x 16.0 mm
