METCAL UFT-6CH9006S UFT Ultra-Fine Tweezer Cartridges

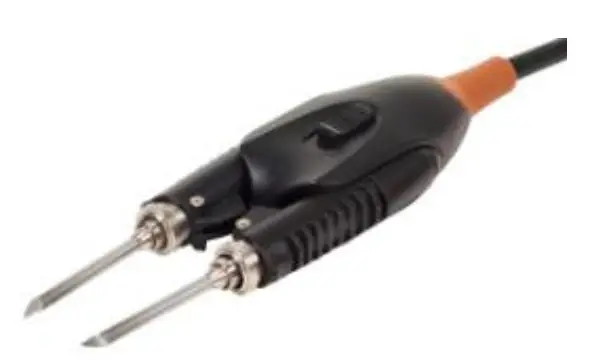

UFT Ultra-Fine Tweezer Cartridges are compatible with CV-5200, CV-500 Systems and CV-H4-UFT Ultra-Fine Tweezer Hand piece.
| Temperature | CV-Serie | Application |
| 675 °F/357 °C | UFT-6 | Temperature Sensitive |
| 775 °F/412 °C | UFT-7 | Most Standard |
Please note the above temperatures are the maximum temperatures of the heater. The idle temperature is dependent on the geometry of the cartridge
(up to 15 ˚C lower).
These tips will provide data via the CV power supplies, but due to the nature of their application the Connection Validation function is not required and therefore not enabled. – All tweezer cartridges are sold per pair!
| Ultra-Fine Tweezer Cartridge – Chisel | ||

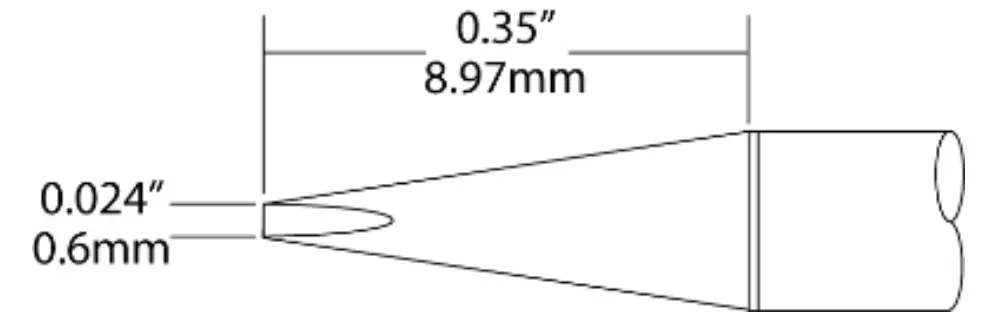

 | UFT-6CH9006S UFT-7CH9006S | (W x L) 0.6 x 9 mm (.0.024″ x .0.35″), Sold per pair |

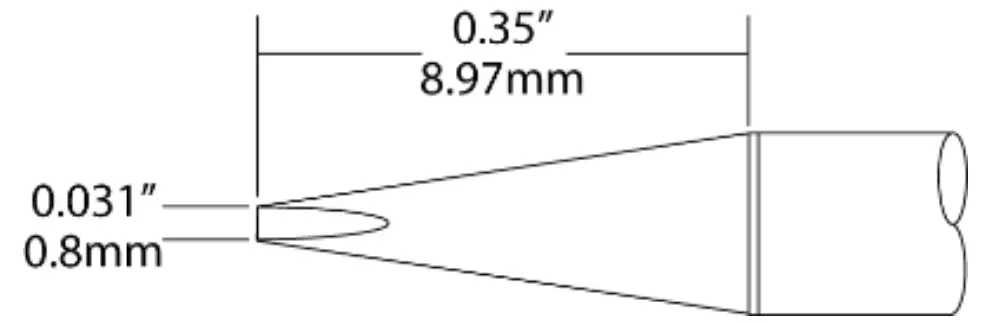

 | UFT-6CH9008S UFT-7CH9008S | (W x L) 0.8 x 9 mm (.0.031″ x .0.35″), Sold per pair |
| Ultra-Fine Tweezer Cartridge – Conical | ||

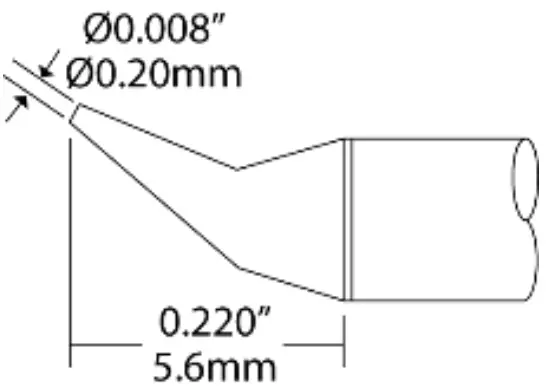

 | UFT-6CN5502R UFT-7CN5502R | Conical, Bent, for work under a microscope, (Ø x L) 0.2 x 5.6 mm (0.008″ x 0.220″) Sold per pair |

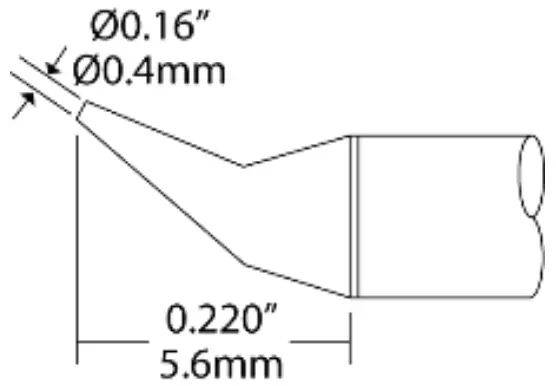

 | UFT-6CN5504R UFT-7CN5504R | Conical, Bent, for work under a microscope, (Ø x L) 0.4 x 5.6 mm (0.16″ x 0.220″), Sold per pair |
 | UFT-6CN8004S UFT-7CN8004S | Conical, (Ø x L) 0.4 x 8.7mm (0.16″ x 0.343″), Sold per pair |
| Ultra-Fine Tweezer Cartridge – Power Wedge | ||
 | UFT-6PW3150S UFT-7PW3150S | Power Wedge, two-way use, tip and long side, (Ø x L) 0.31 x 5.0 mm (0.012” X 0.196”), Sold per pair |
 | UFT-6PW2954C UFT-7PW2954C | Power Wedge, two-way use, tip and long side, (Ø x L) 0.29 x 5.4 mm (0.011” X 0.213”), Sold per pair |
www.okinternational.com – www.metcal.com
