SWIT VANGO70 Ultra Slim RGBW Panel Light Panel LED

Thank you for choosing SWIT products. Please read the instructions before using, and keep it for future reference.

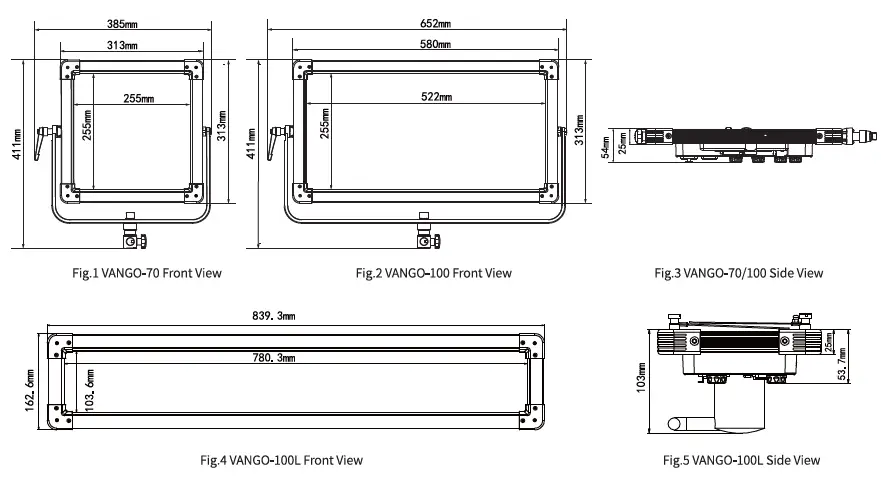

Specification

Warning

• Please do not disassemble the light or touch its inner part with metal object to avoid damage;
• Please do not put the light under conditions full of moisture or dust to avoid damage;
• Only use the light in the temperature range of -l0°C~40°C.

Maintenance

1. Please clean the front LED panel with soft dry cloth. If using soft cloth with slight clean neutral detergent solution, please wipe again with a soft dry cloth.
2. Do not use wet cloth, anhydrous alcohol, gasoline or a mixture of anhydrous alcohol and ether etc. to wipe the front LED panel.

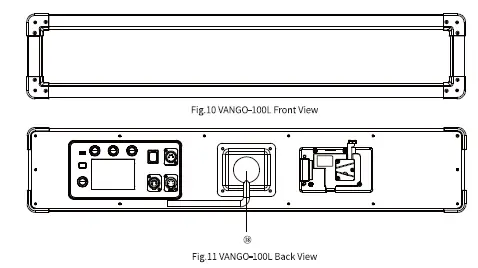

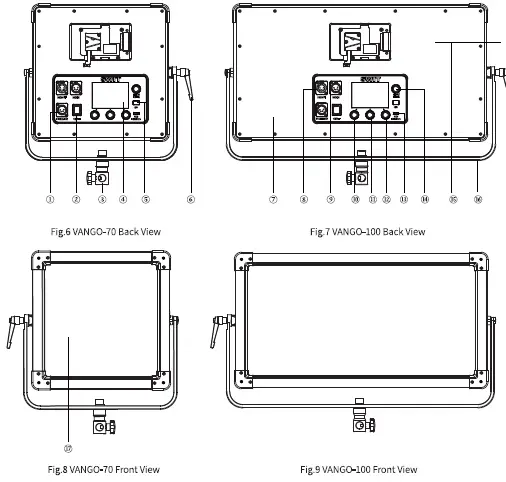

Appearance

1. CD DC IN ll-34V
2. POWER ON/OFF
3. STAND ADAPTOR
4. LCD SCREEN
5. “BACK”
6. YOKE TILT LOCK KNOB 0 BACK FRAME
7. DMXOUT
8. DMXIN
9. ADJUST KNOB
10. USB PORT
11. MENU/ENTER BUTTON
12. BATTERY PLATE
13. YORK
14. DIFFUSER
15. UNIVERSAi GIMBAI

TIPS:
FIG.7@/@/@parameter adjustment knob for reuse knob, different modes have different functions

Accessories Installation

1. Barndoor
2. Frame
3. Screws
4. Barndoor
5. Honeycomb (Small)
6. Spacer
7. Pressing plate
8. Screws

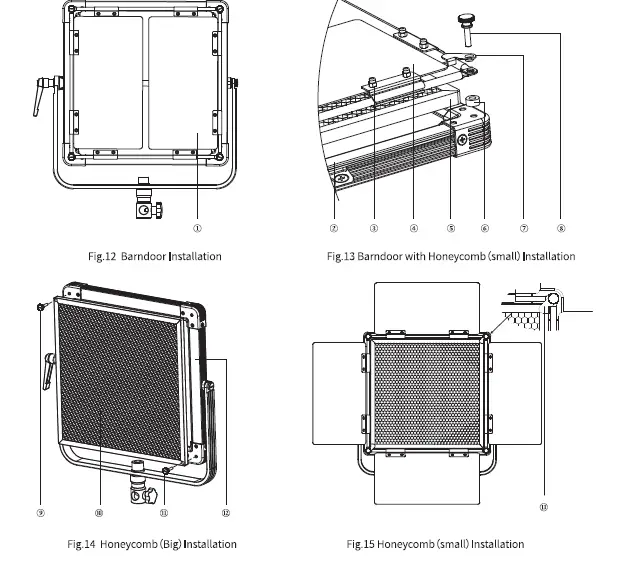

• The Installation of barndoor, please see Fig.12, 13.
  Tips:When installing, place the round head screw of the barndoor upward
• Please confirm the type of honeycomb before using(The size of honeycomb shown as below):
  • Big honeycomb
    The Installation of big honeycomb, please see Fig.14.
  • Small honeycomb
    Small honeycomb can be used with barndoor in the same time, rotate the pressing plate to lock the small honeycomb after Installation, see Fig.15.

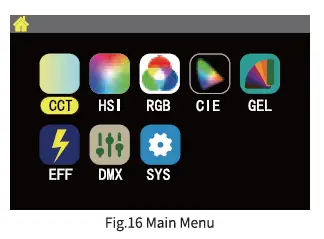

User control

When the light is working:

• User can return back to Menu via” “button (Fig.6 ®);
• Use “ADJUST KNOB” (Fig.7 @/®/@) to select different mode;
• Use”MENU/ENTER” (Fig.7 @) to enter different mode.

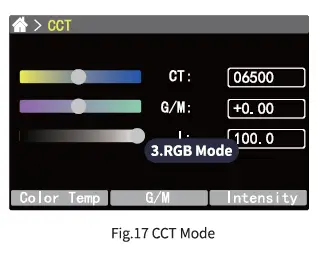

1. CCTMode
   In this mode, User can adjust”CT”, “G/M”, “I” via”ADJUST KNOB”

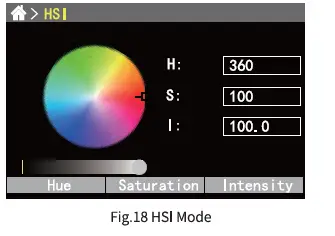

2. HSI Mode
   In this mode, User can adjust”H”, “S”, 11 111 via “ADJUST KNOB”


   	Parameter	Adjustment Step	Minimum Step
   1	CT(ColorTemp)	2800K-10000K	SOK
   2	G/M	-1.QQf– +Q.QQ-H 1.00	0.01
   3	I(Intensity)	0%-100%	0.1%

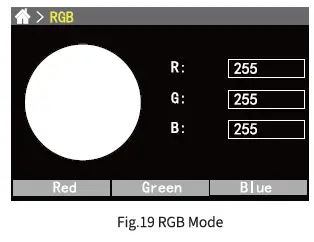

3. RGB Mode
   In this mode, User can adjust”R”, “G”, “B” via”ADJUST KNOB”


   	Parameter	Adjustment Step	Minimum Step
   1	H(Hue)	1°-360°	10
   2	S(Saturation)	0%-100%	1%
   3	I(Intensity)	0%-100%	0.1%

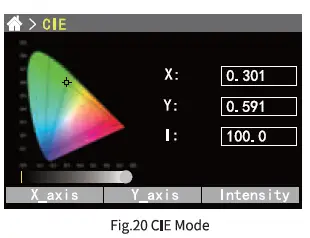

4. CIE Mod
   In this mode, User can adjust”X”, “Y”, “l”via “ADJUST KNOB”


   	Parameter	Adjustment Step	Minimum Step
   1	R(Red)	000-255	1
   2	G(Green)	000-255	1
   3	B(Blue)	000-255	1

5. GEL Mode
   User can choose different filters and adjust the “Intensity”, “Color Temp”in this mode:
   1. “MENU/ENTER”
      • Rotate:To choose different selection
      • Press: Enter into ROSCO/LEE/favourities, put the filters into your facourities.
   2. ADJUST KNOB”: Fig.7 @/@/@, to adjust different parameters.


      No.	Parameter	Adjustment Step	Minimum Step
      1	X_axis	0.131-0.708	0.001
      2	Y_axis	0.046-0.797	0.001
      3	!(Intensity)	0%-100%	0.1%

      No.	Selection	Adjustment
      1	ROSCO	1.20 kinds of Filters 2.Color temperature:3200K/5600K 3.lntensity:0%-100%, Minimum steps:0.1%
      2	LEE	1.20 kinds of Filters 2.Color temperature: 3200K/5600K 3.lntensity:0%-100%, Minimum steps:0.1%
      3	Favorites	I.Color temperature:3200K/5600K 2.lntensity:0%-100%, Minimum steps:0.1%

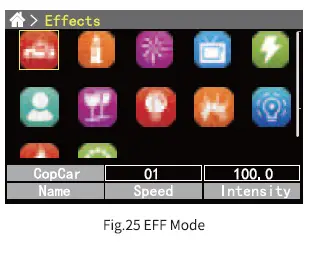

6. EFF Mode
   User can choose from 12 kinds of effect in this mode “COPCAR’\” CANDLE”, “FIREWORK”, “TELEVISION”, “LIGHTNING”, “PAPARAZZI”, “PARTY”, “BROKEN LIGHTS”, “EXPLODE”, “NEON LIGHT”, “FIRE”and “COLORCYCLE”.
   In this mode, User can select different Effect via “MENU/ENTER” button
   (Fig.7 @), adjust”Speed” , “Intensity” via “ADJUST KNOB” Fig.7 @/@/@:


   No.	Parameter	Adjustment Step	Minimum Step
   1	Effect	COPCAR, FIREWORKS Etc.	I
   2	Speed	1-10	1
   3	Intensity	0%-100%	0.1%

7. DMX Mode
   User need to switch on DMX function in “SVS”-DMX ON/OFF, then user can adjust”DMX Address”,”DMX Mode” via “ADJUST KNOB” Fig.7@/@/@


   No.	Parameter	Adjustment Step	Minimum Step
   1	DMXAddress	001-512	001
   2	DMX Mode	CCT, HIS, RGB,CIE, CCT&HSk CCT&CIE, CCT&RGB	I

   • DMX Address and DMX Mode
     The DMX address and DMX Mode can be set in the following two ways:
     • Set in “DMX mode”(Fig.26);
     • Set in “SVS”-“DMXAddress”/”DMX Mode”.
   • DMX Channel Setting


     No.	DMX Mode	Channel	Definition
     1	CCT	N	Intensity: 0%-100%
     		N+l	Color Ternperature: 2800K-10000K
     		N+2	G/M: -1.00—H1.00
     2	HSI	N	Intensity: 0%-100%
     		N+l	Hue:1°-360°
     		N+2	Saturation: 0%-100%
     3	RGB	N	Red :0-255
     		N+l	Green: 0-255
     		N+2	Blue:0-255
     4	CIE	N	Intensity: 0%-100%
     		N+l	X_axis: 0.131-0.708
     		N+2	Y_axis: 0.046-0.797
     5	CCT&HSI	N	Intensity: 0%-100%
     		N+l	Color Temperature:2800K-10000K
     		N+2	G/M: -1.00—H1.00
     		N+3	Mode Change (CCTHSI)
     		N+4	Hue:1°-360°
     		N+5	Saturation: 0-100%
     6	CCT&CIE	N	Intensity: 0%-100%
     		N+l	Color Temperature: 2800K-10000K
     		N+2	G/M: -1.00 +1.00
     		N+3	Mode Change (CCTCIE)
     		N+4	X_axis:0.131-0.708
     		N+5	Y_axis: 0.046-0.797
     7	CCT&RGB	N	Intensity: 0%-100%
     		N+l	Color Temperature: 2800K-10000K
     		N+2	G/M: -1.00 +1.00
     		N+3	Mode Change (CCTRGB)
     		N+4	Red :0-255
     		N+5	Green: 0-255
     		N+6	Blue:0-255

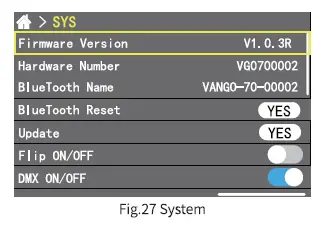

8. SVS(System)

   Select[SYS], press MENU/ENTER to enter into the sub menu:
   1. tFirmware Version]& [Hardware Numberl Show the information of the version of the device.
   2. (Bluetooth Name) User can rename the Bluetooth of the device via “MENU/ENTER” button.
   3. [Bluetooth Reset) In the process of using the APP to control the lamp, if the APP loses control or the target lamp cannot be found, the user can choose to try to reset the target lamp. The bluetooth reset steps is as follows:
      Choose lBluetooth Reset)-[Yes] to reset the bluetooth.
   4. Update Prepare the update firmware and U-disk (Make sure the format of U-disk is :FAT32),connect U-disk with USB port of the light, ChooselUpdate)-fYes), after updating, reboot your light to finish the updating
      Tips: The firmware need to be saved into the root of the U-disk.
   5. LCD Flip Choose[Flip ON/OFF to switch ON/OFF screen flip function.
   6. DMX Mode Choose [DMX ON/OFF]to switch ON/OFF DMX function.
   7. DMX Address Choose [OMX Address)to set DMX address from 001-512.
   8. DMX Mode Choose[OMX ON/OFFlto select from different DMX Mode.
   9. Light Cunve ChooselLight Curve) to select from different Light Curve.
   10. Language Choose[Language) to change language to Chinese or English, reboot your light after choosing the language.
   11. EFF File Import Put the Effect files in your U-disk, choose [EFF File Import). select the Effect files you want to import, choose-[yes] to import the Effect files Tips:Make sure the Effect files you saved is in the U-Disk VANG0-70″or”U-Disk> VANGO-100
   12. GEL File Delete
       Choose [GEL File Delete], select the GEL files you want to delete, choose [Yes] to delete the GEL files. 8.15 All Files Import
       User can Import all Effect files and GEL files from the U-disk via this function:
       Choose [All Files lmport]-[Yes] to import all Effect and GEL files from your U-disk to the light.
   13. System Reset
       User can do factory reset to reset Bluetooth and Userdata.
   14. Factory Menu
       Not available to users.

APP

1. APP name and download
   • Name:SWIT Console
   • Download
     Android: Scan QR to lnstall(Fig.28); IOS:Apple Store

Packing list
