Hoin Hypolee 80mm Thermal Receipt Printer User Manual

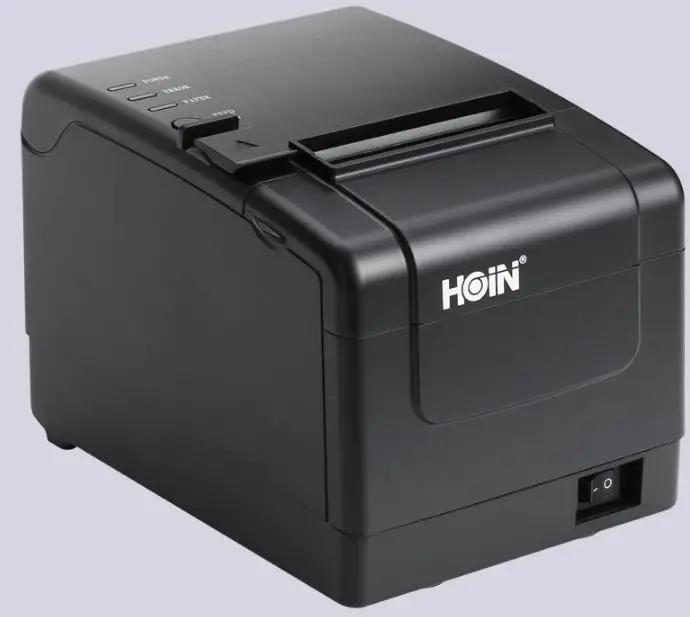

HOIN HypoLee 80MM Thermal Receipt Printer

Safety tips

• Do not disassemble the printer personally, Please read this manual before use.
• The printer should be installed in a solid place to avoid vibration or impact damage to the printer.
• Do not store and use the printer in the environment of high temperature, high humidity, and heavy pollution.
• The power adapter of the printer should be connected to the grounding socket, should be avoided to connected to the same socket with large motor or other can lead to voltage fluctuation equipments, or may lead abnormal to printer and even damage to the printer.
• Please use the standard power adapter to the printer.
  When plug connection line, please make sure the printer power is closed.
• When the printer is printing, please do not open the paper cover, otherwise it may cause unexpected situation, and even damage the printer.
• After printing, print head is still at high temperature, Please do not touch, to avoid burn.
• Please do not use dissolved substances, such as: benzene, thinner or alcohol wipe to clean the printer casing. At the same time, please do not use corrosive chemicals and detergent to contact printer. To avoid damage to the printer.
• Please use our company approved or regular factory produced printing paper, otherwise it may lead to poor print quality, and even damage the printer core.
• Thermal printing paper printing letter save time is related to thermal printing paper quality, if you want to print the long-term preservation bills, please choose a long-term thermal paper.
• The printer is only suitable for using in the altitude below 2000M.
• The printer is only suitable for use in non tropical climates.

Application Area:

• Electronic cash register POS system printing
• Electronic transfer system printing
• Sports, postal, civil aviation bill printing
• Query, service system bill printing
• Catering industry bill printing
• Tax bill printing

Package

• Printer 1PC
• Standard power adapter (including power line) 1SET
• Paper roll 1ROLL
• Data line 1PC
• User manual 1PC
• Driver CD 1PC

Printer Features

• 300 mm / second ultra high-speed printing, improve the printing efficiency
• Excellent waterproof, anti – oil, anti-dust structure design
• Support wall hanging function, meet the special environment printing
• Movable baffle design, support 80MM, 58MM different width of the paper roll printing
• Support 80MM large diameter roll
• Support kitchen printing and Internet printing
• Support printer monitoring function, to avoid losing bills
• Using 100M Ethernet, connect printer faster, to avoid losing bills
• Recover printing after netwok disconnection,to avoid losing bills
• 2048K super input buffer,to avoid losing bills
• Support LOGO Graphical download and print
• Support 1D,2D bar code printing
• Support order come remind and error alarm
• Support Multi language printing
• Optional Rich interface: USB,Internet(100M),COM,WIFI,Bluetooth(Optional combination)
• Compatible with ESC/POS print instruction mode
• Support Windows, Linux, Android and IOS system printing

Printer Parameters:

Printer connection:

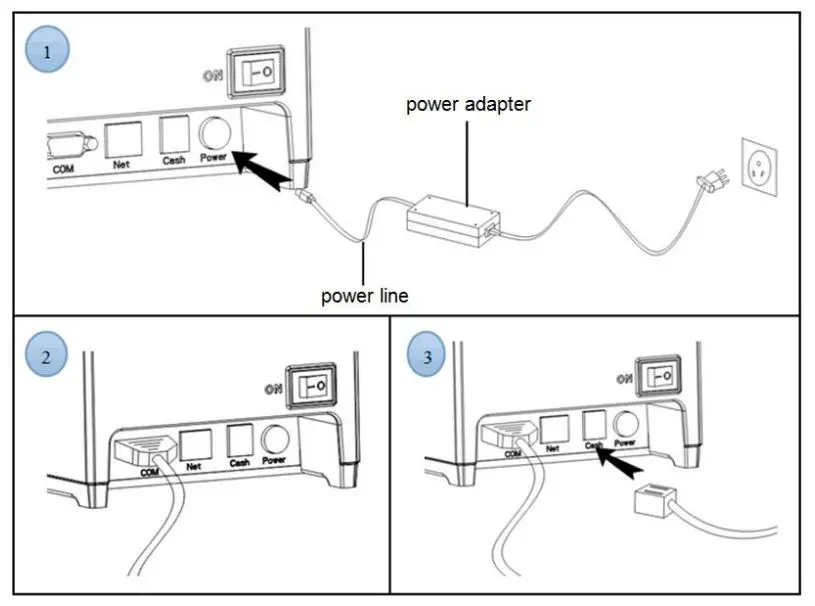

1. connect the power adapter cable to the printer power supply interface.
2. connect the data cable to the printer’s interface.
3. the cashier drawer cable connected with printer interface.

Install the print paper
80MM series thermal printer using 58MM thermal paper, using easy paper structure, convenient to install paper.

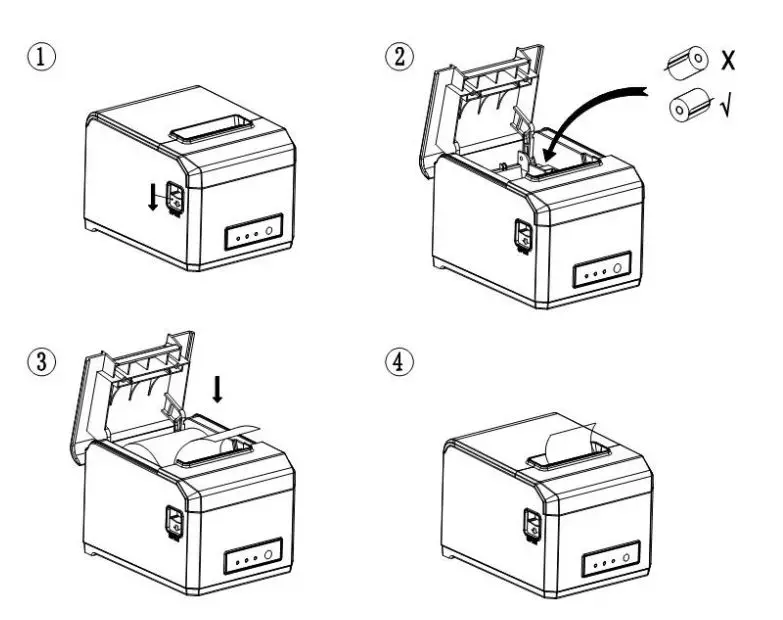

1. Pressing down the cover open button, open the printer cover
2. Put thermal print paper in the paper holder according to the pic below
3. Pull a little paper out of the warehouse
4. tear excess printing paper

Note: take care of the roll direction, if reverse direction, the content won’t be print out.
Switch, key name, indicator and function

1. power switch
   The switch can turned on and off the printer power supply.
2. (feed) key (FEED)
   Press the button can feed, if keep on press this button will continued to feed.
3. (short paper) light (Paper)
   This indicator and the Error lamp flashing at the same time indicates that the printer is short of paper, this indicator and the Error lamp off means the printer has paper.
4. (power) lamp (power)
   The indicator light on indicates that the printer is connected to the power supply, this light off indicates that the printer power is off.
5. (error) light (Error)
   When the printer is missing paper, print head overheating, the lid is not closed well etc., the indicator lights will flashing.

Self-test
Printer self-test method is as follow: when the printer connected to the power adapter, press (feed) key and open the printer power at the same time, released the button key after approximately 3-5 seconds, printers will print a self test page.

Cutter stuck maintenance
Solution 1:Press the power switch to turn off the printer power, restart, let the cutter back.

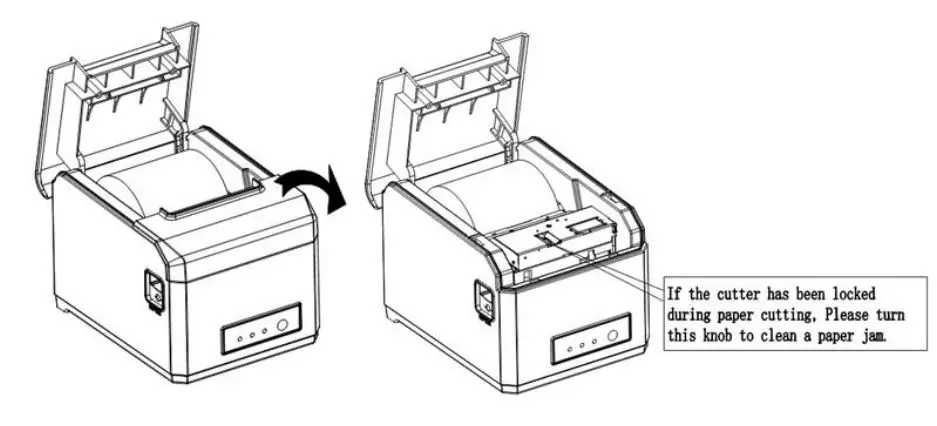

Solution 2:Open the printer cover, rotating the printing head cutting knife gear, let the cutter return to its initial position, open the cover and install paper roll then can print normally.

Printer driver
80MM series thermal printer driver mode has two kinds, one is using the port for directly drive printing, one is in stall driver in Windows system to print.

1. port direct drive
   In this way, do not need to install the driver, only need to output the character (instructions and data) directly to a port, and to achieve character conversion of print by internal printer hard character library , using port directly drive, make the print control more convenient.
   If you use port direct drive mode, you need to use the print command set to control the printer’s printing, 58MM series thermal printer has been integrated within the ESC/POS instruction set.
2. Install driver in windows system
   To install the driver in CD in windows, you only need to call the driver in the program to achieved print. In this way, in fact there is a Windows driver to turn the character into a graphic dot matrix way to print.

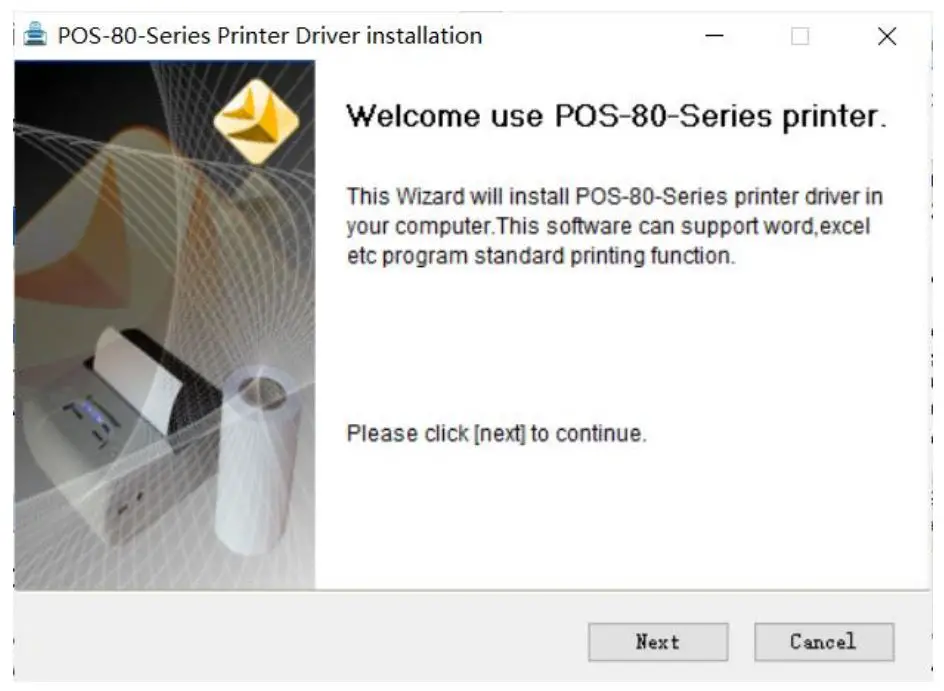

Windows driver installation steps and instructions:

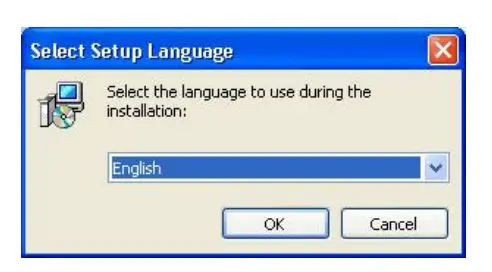

1. Double click the driver setup “ok”
2. Click the “next”

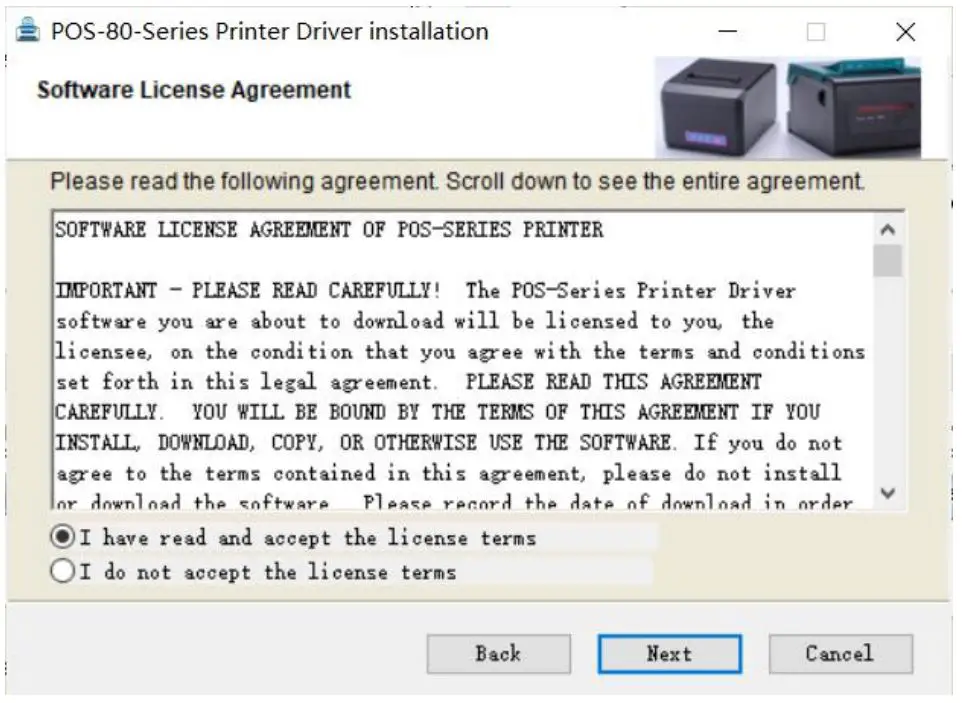

3. Select “I accept this Agreement”, click “next”

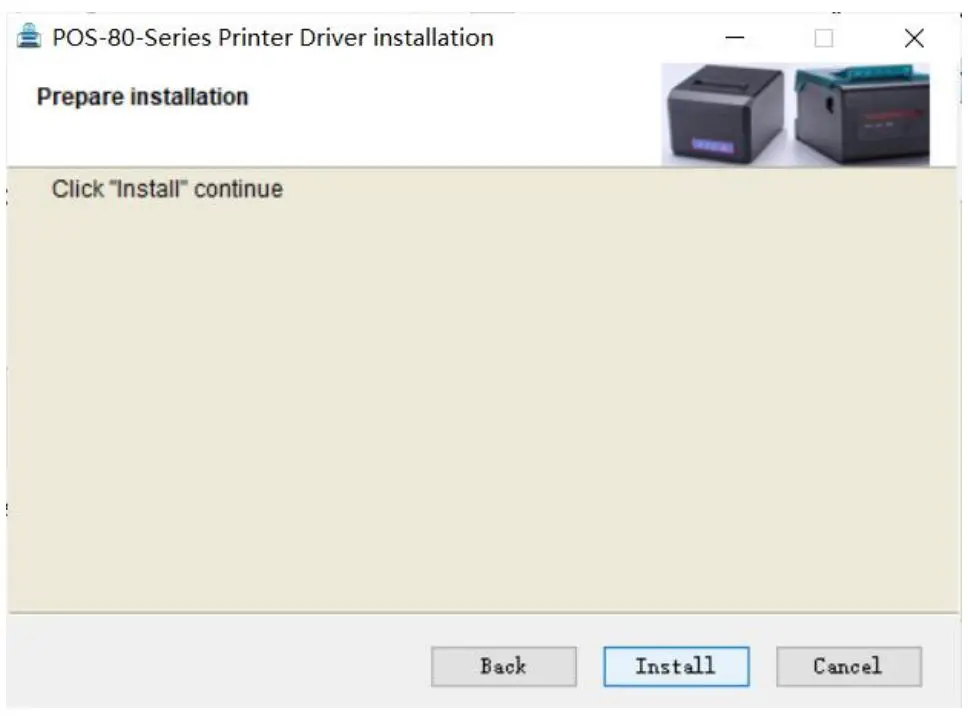

4. Click “install”
5. Select the corresponding port(if you want to use with USB, you can choose the default port) and click “Next”

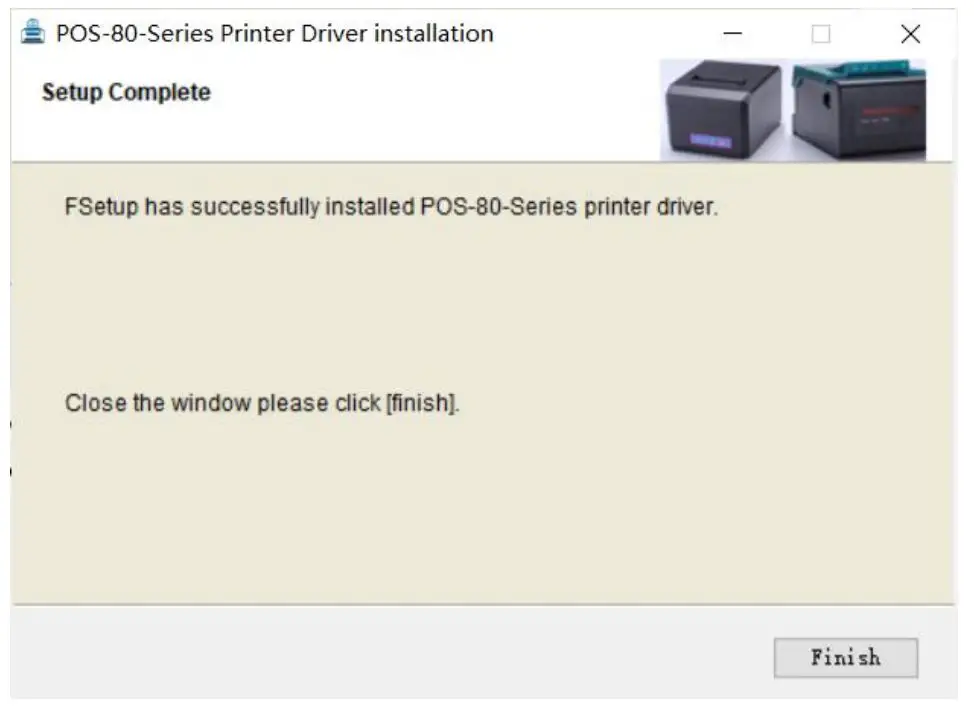

6. Click “Finish” to complete the driver installation

Printer Repair and maintenance

1.  printer external and warehouse cleanings: please use a wet cloth gently wipe the printer surface and internal paper warehouse.
2.  Printer core clean: printer core must be clean on time, especially the quality of printing is decline, cleaning methods are as follows: put cotton dipped in anhydrous alcohol and gently wipe the printer core ceramic parts as shown in the picture below until clean enough.
3. If find water inside the printer, Please immediately disconnect the printer power, and dry the printer naturally.

Failure Analysis
