TWINK Solar Light Tower
User Manual
APPLICATIONS
Unlike other construction site light towers, TWINKO has removable double mast heads for storage. SOLTECH provides solar light fixtures for every application. At 16 feet high, TWINKO creates a wider illumination area that is ideal for parking lots, construction sites, mining camps, events, roadwork, and more.
DESCRIPTION

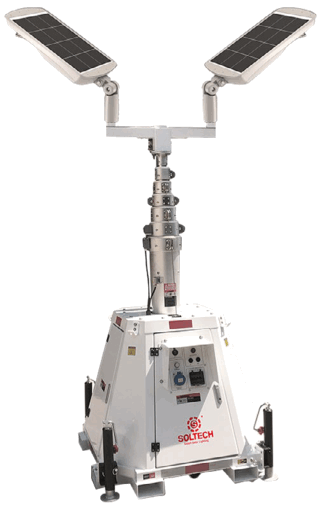

TWINK mobile solar light tower provides versatile temporary lighting. It’s ideal for construction sites, natural disasters, and mining operations. The double heads can be assembled with SUNLIKE 20W/30W and SUNLIKE PRO 30W. TWINK light towers can be easily transported from location to location.
| CATALOG | COMMENTS | |
| PROJECT | ||
| PREPARED BY | ||
| DATE |
LIGHTING FIXTURE OPTIONS
- SUNLIKE PRO 30W X1 6,000 lumen
- SUNLIKE 30W X1 6,000 lumen
- SUNLIKE 20W X2 8,000 lumen
(SOLAR FIXTURE NOT INCLUDED)
ORDERING INFORMATION
| TOWER | FIXTURE | ||||||
| STLTWR01E=TWINKO Solar Mobile Tower | SERIES | WATTAGE | OPTIC TYPE | COLOR TEMPERATURE | MOUNTING OPTIONS | FINISH | FIXTURE QTY |
| STLSTC=SUNLIKE STLSTCPRO =SUNLIKE PRO | 20=20W 4000 Lumens (only for SUNLIKE) 30=30W 6000 Lumens | T2=TYPE II (only for UNLIKE 30W SUNLIKE PRO 30W) T3=TYPE III T4=TYPE IV (only for SUNLIKE 30W SUNLIKE PRO 30W) | 3=3000K 4=4000K 5=5000K 6=5700K | SF=Slip Fitter | GY=Gray | SUNLIKE 20W) | |
SPECIFICATION FEATURES
Flexible Range of Visibility
- 150 AH, 1,500 W integrated gel battery ensures 120 cycles of raising and lowering the mast, one charge lasts an entire month.
- 16-foot tower height provides a wider range of illumination area.
Heavy Duty Guarantee
- Aluminum mast, 4 sections, 16 ft max.
- Electrical winch rated to 3,000 lbs with limit sensor, DC 12V
Clean, Quiet & Environmentally Friendly
- No generator emissions
- Quiet and produce no exhausts
- Direct alternative to diesel, gas, or electric grid
Easy Deploy & Move
- Forklift pocket, base 1m x 1m (40 in x 40 in, matches a standard pallet)
- 4 manual stabilizer legs
Lower Costs
- No trenching, cabling, electricity, or diesel costs
- Zero emission of greenhouse gases
Meet Specific Lighting & Operating Requirements
- 120VAC input plug
- SUNLIKE mounting accessories included
- Creates a wider illumination area at 16 ft high

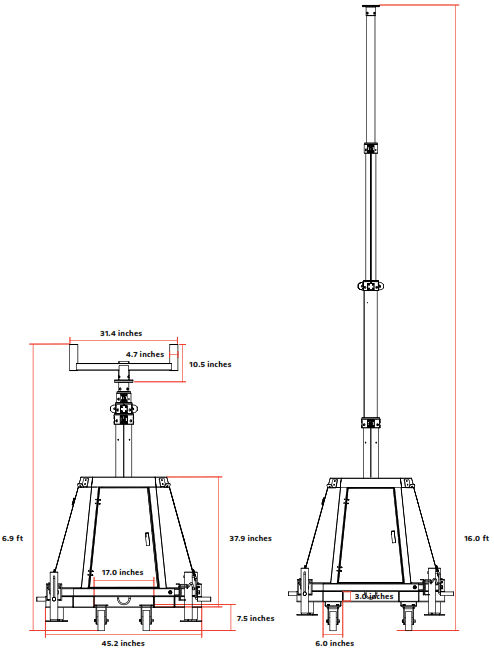

PRODUCT SIZE
SPECIFICATIONS
| Specifications | TWINK |
| Max Height | 16 ft (Without Luminaire) |
| Collapsed Height | 6.9 ft (Without Luminaire) |
| Mast Material | Steel |
| Mast Profile | Round |
| Mast Sections | 4 |
| Operation | Electric Winch 3000 Lbs, DC12V |
| Battery | GEL DC12V 150AH, 1,200 times Lift and Down Autonomy |
| Charger | 1,500W AC 110V Input |
| Mast Max Load | 88 Lbs |
| Max Wind Speed | 90 mph |
| Warning Strips | Included |
| Lift Limit Stopper | Included |
| Lifting Eyes | X4 |
| Fork Pockets | Included |
| Wheel | Included (With Brake) |
| Mast Flange | Included |
| Weight | 1,210 Lbs (Without Luminaire) |
| Dimensions | 45.2 inches X 45.2 inches X 83.0 inches (Collapsed Without Luminaire) |

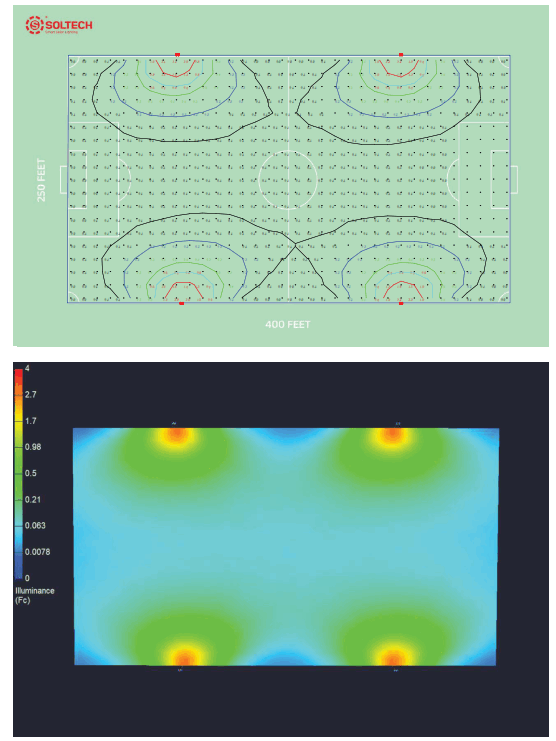

TWINK with SUNLIKE 20W (Four light towers on a regular soccer field)
Lights: Two 20W fixtures per tower
Light height: 16ft
Lighting Area: 400 X 250 ft
Luminosity: 0.23 FC average across the entire area

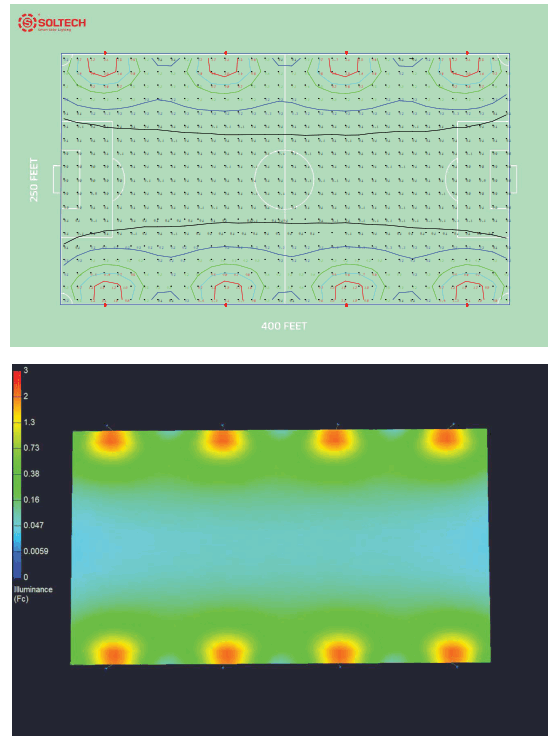

TWINK with SUNLIKE 30W (Eight light towers on a regular soccer field)
Lights: One 30W fixture per tower
Light height: 16ft
Lighting Area: 400 X 250 ft
Luminosity: 0.33 FC average across the entire area
WARRANTY
TWINK Solar Mobile Tower products are covered by a 5-year limited warranty. SOLTECH warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 5 years from the date of purchase. To obtain warranty service please contact your local distributor or sales rep for further instruction.
1460 Park Avenue.
Emeryville, CA 94608 USA
www.soltechlighting.com
SOLTECH LLC reserves the right to update all
product data sheets at any time. Consult SOL TECH
marketing specialists for publication updates at
[email protected]
Copyright©2022–2023 SOLTECH LLC, All Rights Reserved.
