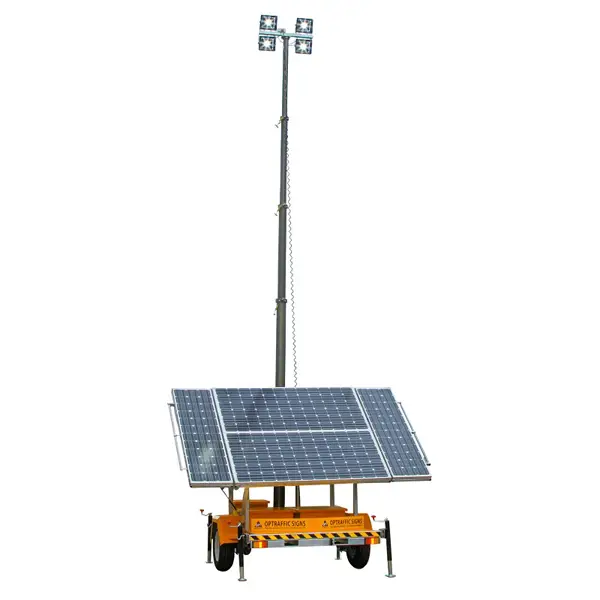

SOLTECH TEMPO Mobile Solar Light Tower
Introduction
Outdoor solar lighting systems use solar cells which convert sunlight into electricity. Electricity is stored in batteries for use at night. TEMPO Mobile Solar Light Tower combined with SUNLIKE solar lights are easy to install and virtually maintenance-free. Using them avoids trenching, cabling, and electricity costs.
Important
In order to avoid deep discharge of the battery during storage, please fully recharge your battery every 4 months. Please make sure that the light is installed in an area with sufficient sunlight. A strict minimum of 3.5 hours/day of sunshine on average is recommended. Select the right operating mode according to local codes and solar conditions. Keep it away from shadows. Self-cleaning occurs when the light fixture has a minimum angle of 15 degrees above horizontal. Please save these instructions. Read all of the instructions carefully before attempting to carry out any installation or wiring. Do not open or attempt to repair an SOL TECH luminaire on your own, as it may cause serious damage and would void the product warranty. Contact your local distributor for any questions concerning the installation. The range of the lighting fixtures is 20–26 feet (6–8 meters). The ideal installation spacing between fixtures is <16 feet (5 meters). When installing two or more light fixtures on one pole, select desired operating mode before installation. Radiofrequency interference can cause delay or malfunction of the remote control when changing operating modes, after installation.
Precautions when working with solar panels
When the solar panel is exposed to sunlight, a voltage appears at the output terminals of the solar panel, turning it into a source of electricity. To avoid a shock hazard, make sure the solar panel is covered with an opaque (dark) covering, such as paper or cloth, during the installation. Do not make contact with the terminals when the panel is exposed to sunlight or any other light source.
Specifications
| Specifications | TEMPO |
| Max Height | 14.3 ft (Without Luminaire) |
| Collapsed Height | 7.5 ft (Without Luminaire) |
| Mast Material | Steel |
| Mast Profile | Square |
| Mast Sections | 3 |
| Operation | Manual Winch 1500 Lbs |
| Mast Max Load | 110 Lbs |
| Max Wind Speed | 90 mph |
| Warning Strips | Included |
| Lift Limit Stopper | Included |
| Lifting Eyes | X4 |
| Fork Pockets | Included |
| Wheel | N/A |
| Mast Flange | Removable |
| Weight | 770 Lbs (Without Sand Ballasting and Luminaire) |
| Dimensions | 40.0 inches X 40.0 inches X 90.0 inches (Collapsed Without Luminaire) |

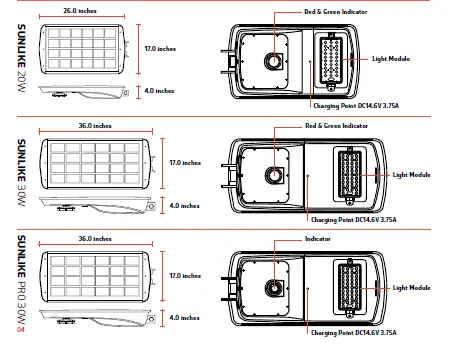

| Luminaire Specifications | SUNLIKE 20W | SUNLIKE 30W | SUNLIKE PRO 30W |
| LED Nominal Power | 20W | 30W | 30W |
| Solar Panel | 18V 36W | 18V 52W | 18V 52W |
| Battery | 256WH 12.8V 20AH LiFePO4 | 384WH 12.8V 30AH LiFePO4 | 320 WH 12.8V 25AH Superior |
| Weight | 21.4 lbs | 29.8 lbs | 47.1 lbs |
| Lumen Output@5000K | 4,000 | 6,000 | 6,000 |
| CRI | > 70 | > 70 | > 70 |
| LED Chip | Lumileds 5050 (215lm-CR>70) | Lumileds 5050 (215lm-CR>70) | Lumileds 5050 (215lm-CR>70) |
| EPA | 4.75 | 6.26 | 6.26 |
| Waterproof Rate | IP65 | IP65 | IP65 |
| Casting | Aluminum | Aluminum | Aluminum |
| Efficiency@5000K | 200 lm/W | 200 lm/W | 200 lm/W |
| * Charging Time | 7hrs | 7hrs | 7hrs |
| Run Time(@Full Power) | 10hrs | 10hrs | 11hrs |
| Operation Mode | Remote control and One-key Setting | Remote control and One-key Setting | Remote control and One-key Setting |
| Installation Height | 9 to 16ft | 9 to 20ft | 9 to 20ft |
| * Operating Temperature | -4 °F to 122 °F | -4 °F to 122 °F | -4 °F to 140 °F |
| * Charging Temperature | 32 °F to 149 °F | 32 °F to 149 °F | -58 °F to 140 °F |
| Maximum Autonomy | |||
| Motion Sensor Mode | 40%–100% 35hrs 20%–80% 55hrs | 40%–100% 35hrs 20%–80% 55hrs | 40%–100% 25hrs 20%–80% 50hrs |
| Time Control Mode | Night Owl 28hrs Early Bird 25hrs | Night Owl 28hrs Early Bird 25hrs | Night Owl 23hrs Early Bird 20hrs |
| Constant Mode | 100% 11hrs 70% 15.5hrs 40% 27hrs | 100% 11hrs 70% 15.5hrs 40% 27hrs | 100% 11hrs 70% 15hrs 40% 26hrs |
Installation and Wiring Requirements
- Installation and wiring must comply with the State and National Electrical Codes.
- The SUNLIKE 20W/30W/30W PRO models are intended for outdoor use only and should not be installed in an unventilated area, and must be installed in an environment within the operating temperatures defined for the product.
- The average sunshine in the installation area should be above 3.5 hours/day in order to ensure the full functionality of the light fixture. Avoid areas with shade.
- Before installation, if applicable, please ensure the light pole and its foundation are stable enough to withstand the lighting fixture(s).
- Before installation, please ensure that the battery is fully charged. Install during sunny days if possible.
- Before installation, press the ON/OFF key on the remote control and check whether it shows a red light on the indicator. Cover the solar panel and check if the light module turns on normally within 1 minute.
After Installation: The light fixture will automatically turn on at night and turn off during daylight.
Important: Always orient the solar panel facing the equator (e.g. facing south if in the northern hemisphere). Always have a tilt angle of at least 15° to avoid dust accumulation (0°=horizontal plane).
Ordering Information
| Tower | Fixture | |||||
| STLTWR02M=TEMPO Solar | Series | Wattage | Optic Type | Color Temperature | Mounting Options | Finish |
| Mobile Tower | STLSTC=SUNLIKE | 20=20W | T2=TYPE II | 3=3000K | SF=Slip Fitter | GY=Gray |
| STLSTCPRO =SUNLIKE PRO | 4000 Lumens (only for SUNLIKE)
30=30W | (only for SUNLIKE 30W SUNLIKE PRO 30W) T3=TYPE III | 4=4000K 5=5000K | |||
| 6000 Lumens | T4=TYPE IV | 6=5700K | ||||
| (only for SUNLIKE 30W | ||||||
| SUNLIKE PRO 30W) | ||||||
For example: STLTWR02MSTLSTC020T33SFGY
This means the customer wants a Solar Mobile Tower Tempo, SUNLIKE 20W, TYPE III, 3000K CCT, Slip Fitter installation, with a Gray finish.
DO NOT send the sample number directly to our salesperson. Use the information in the chart above to create a model number with
the correct series, wattage, temperature, mounting option, and finish for the product that you want.
Installation
- Install The Pole

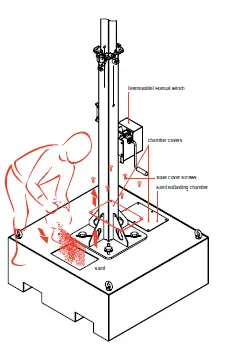

- Sand Ballasting

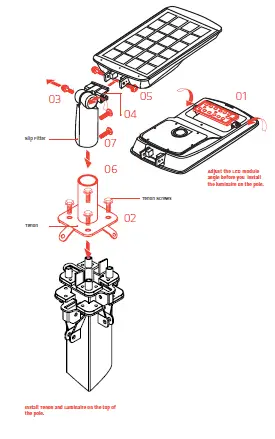

- Install Tenon and Luminaire
- Adjust The Pole Height

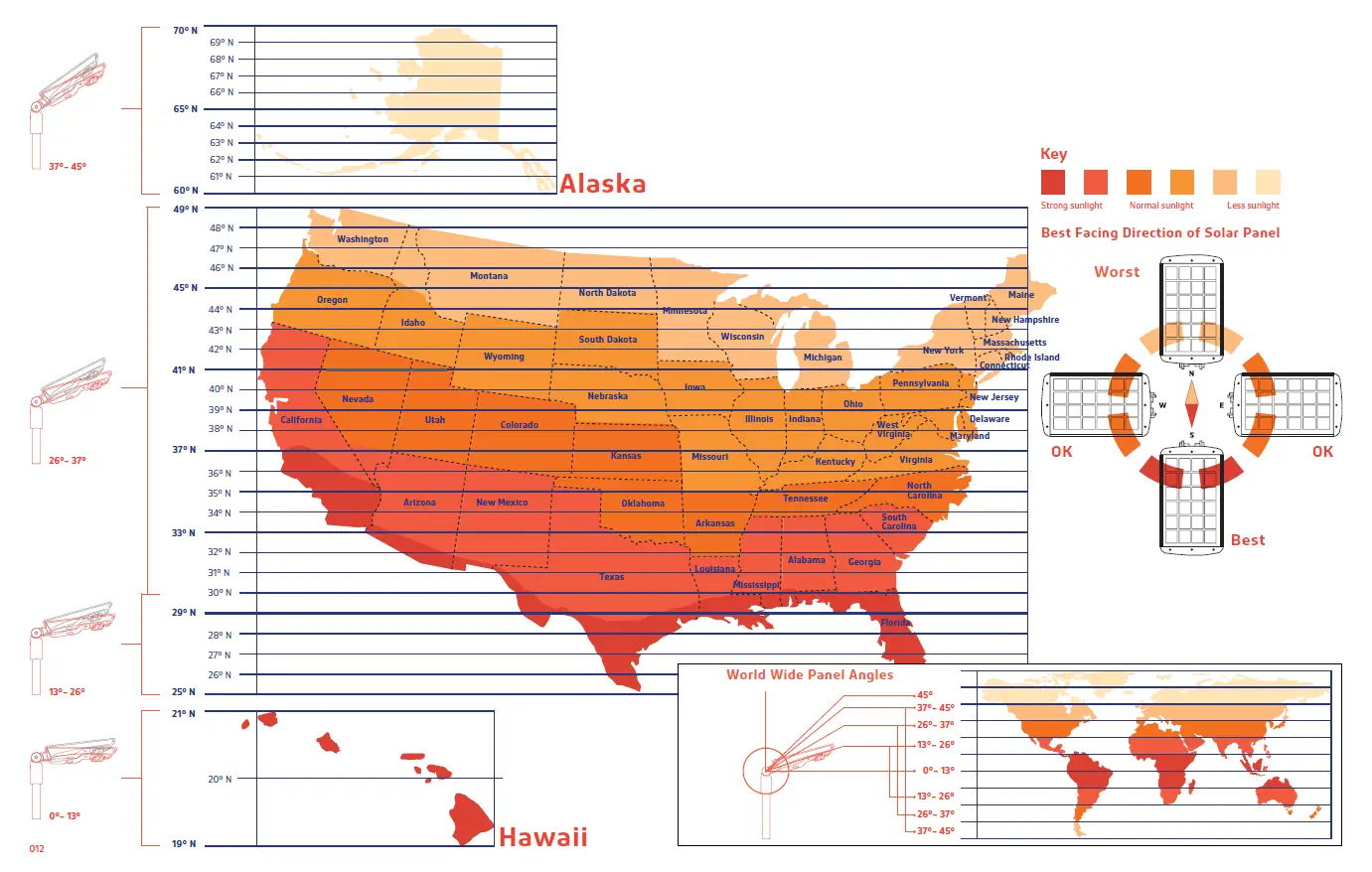

Panel Angle
The Solar charge in a battery pack won’t last forever. The off-grid system relies on stored solar energy for autonomy. Angling your solar panels properly can boost the power intake of your solar lighting system. You want to angle your solar panels at a tilt based on the area’s latitude.
Tip: You can increase the tilt by 15° in the winter or decrease it by 15° in the summer. In this way, you can get the maximum sunlight to recharge the battery bank.
The area will dictate the installation of the fixtures and will sometimes prevent the lights from facing south. But that’s okay! Panels facing West & East won’t get as much light as Southern facing panels, but will still collect a good amount of sunlight. A North facing panel also works, but it will take longer to charge than any other direction. This would mean that the solar charge will be less optimal if installations are facing North.
