User Manual
DINO Solar Light Tower
KEY FEATURES

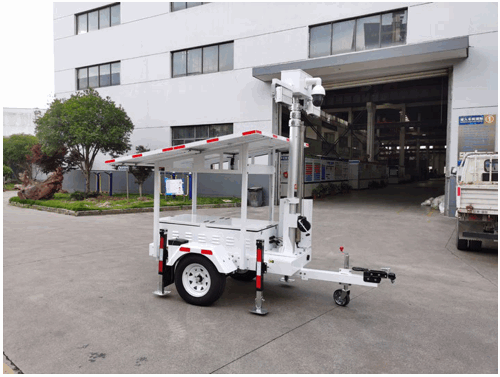

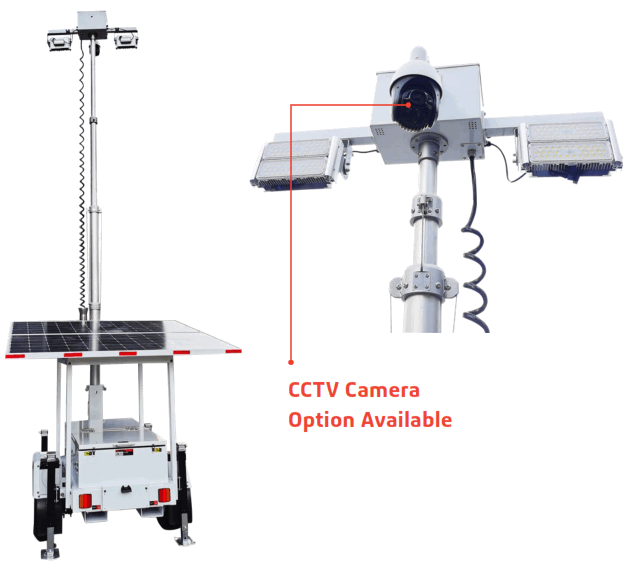

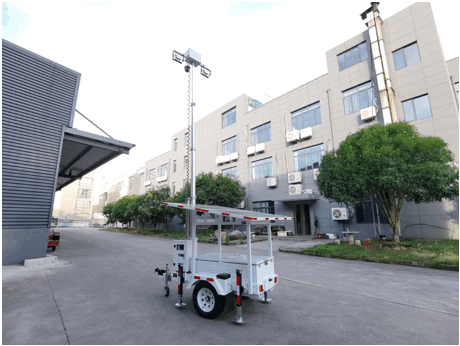

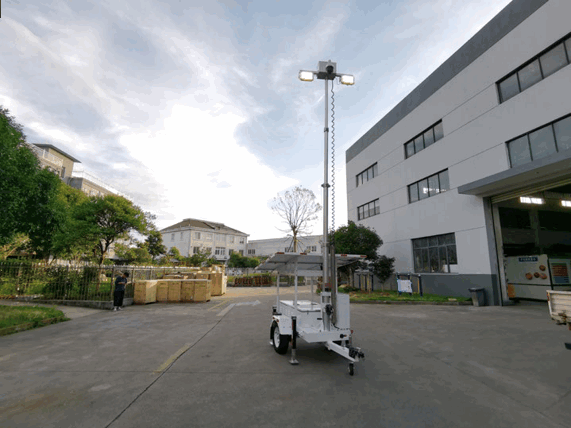

Mobile solar trailer units utilize 2 units of solar panel and 18ft vertical mast with one man job trailer to keep a rapid deployment system, no fuel cost, and no noise.
APPLICATIONS
This solar trailer is ideal for a wide range of applications including construction, industrial, civil works, rental, monitoring, and government projects.
ORDERING INFORMATION
STLTWR03S
| CATALOG | COMMENTS | |
| PROJECT | ||
| PREPARED BY | ||
| DATE |
SOLAR SPECIFICATIONS
| Solar Panel | 2*380W Monocrystal Silicon Solar Panel |
| Battery | Gel Battery |
| Capacity | 4*150AH DC 12V |
| System Voltage | DC 24V |
| Charge Time | 10 Hours |
| Charge Temp | -25°C/-13°F to 60°C |
TRAILER SPECIFICATIONS
| Tow Hitch | 1.96 Ball / 2.76 Ring |
| Tire & Rim | 185R14C |
| Axle | Single Axle. |
| Dimensions | 118.5 inches X 77.4 inches X 104.7 inches |
| Weight | 1565 Lb |
LIGHT MAST SPECIFICATIONS
| Mast Head Length | 26 inches |
| Materials | Galvanized Steel |
| Type of Mast | Round Type, Telescopic |
| Height | 18–23ft 5 Sections |
LED LAMP SPECIFICATIONS
| Lamp Qty | 4 |
| Lamp Type | LED |
| Voltage | DC 24V |
| Total Watts | 240W |
| Single-lamp Watts | 60W |
| Total Lumens | 36,000 LMS |
| Single Lamp Lumens | 9,000 LMS |
| LED Life Expectancy | 80,000+Hours |
| Color Temp | 5700±300K |
| Beam Angle | 40° Narrow Flood / 60° Flood / 120° Wide Flood |
| Ambient Temp Range | -40°C/-40°F to 50°C |
| Materials | Aluminum Extrusion |
| Mount | U Bracket |
| Housing Color | Gray |
 |  |  |
1460 Park Avenue.
Emeryville, CA 94608 USA
soltechlighting.com
SOLTECH LLC reserves the right to update all product data sheets at any time.
Consult SOL TECH marketing specialists for publication updates at [email protected]
Copyright©2022–2023 SOLTECH LLC,
All Rights Reserved.
