836632 – PURE-LINES
This product contains a light source of energy efficiency class <E>.
| LED | 20 W 2.400 lm |
|
 | 23 W 950 lm | |
| t | 25.000 h | |
| Tk | 2.700 – 5.000 K | |
 | 15.000 x | |
 | < 0,5 s | |
433,92 MHz | ||
836632 | |
| 230V / 50Hz~ | |
| LED | 1x LED-Board 24V DC / 20 W |

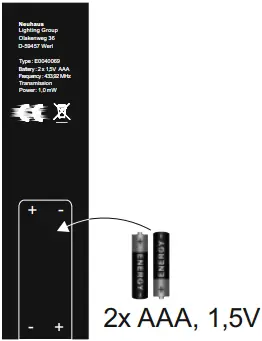

1x  2x  AAA,1,5V | |

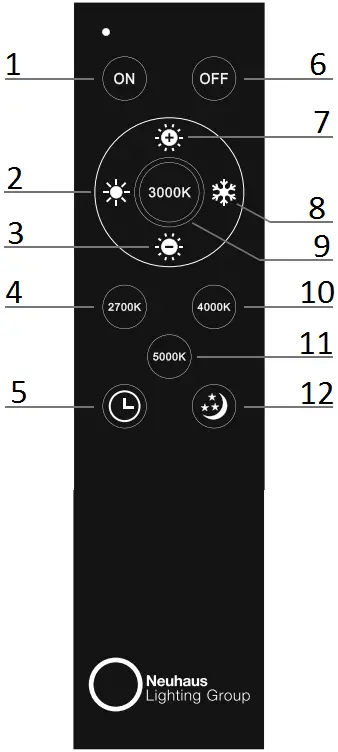

- On
- 5.000 – 2.700 K
- Reduce brightness
- 2.700 K
- Timer (off after 1 min.)
- Off
- Increase brightness
- 2.700 – 5.000 K
- 3.000 K
- 4.000 K
- 5.000 K
- Night light
a) b) c)

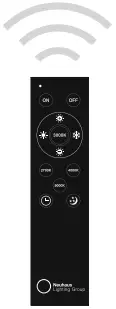

Assigning the remote control to the light
Switch the light on via the wall switch. Press the ON button on remote control within 5 seconds. The light is now assigned and can be operated by the remote control.
!!! A remote control can control an unlimited number of lights. A light can be operated by one remote control !!!
| Description | Operation data |
| Battery | 2x AAA, 1,5V |
| Transmission frequency | 433,92 MHz |
| Transmitting power | 1,0 mW |
| No-load current | 0,001 mA |
| Operating current | max.15 mA |
| Range of the remote control | 6-8 m |
Paul Neuhaus GmbH
Olakenweg 36 · D-59457 Werl
+49(0)2922 9721 9290
[email protected]
www.paul-neuhaus.de
