Made in Germany

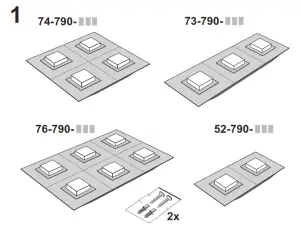

BASIC LED 52-790- 73-790- 74-790- 76-790-
For production and batch-related reasons, slight color deviations cannot be excluded for anodized surfaces. However, this does not represent a product defect.
Disconnect the supply cable to the lamp.

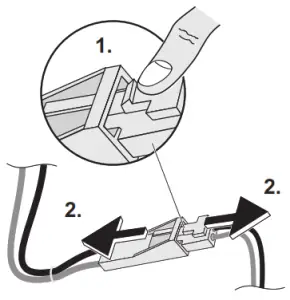

Release the LED plug connection by pressing the button.

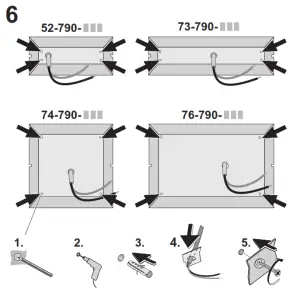

Choose the type of fastening (dowel…) according to the construction material!

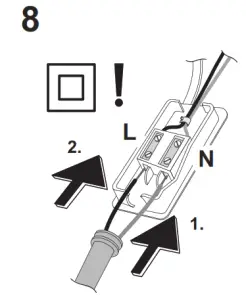

| L | N |
| black (brown) | blue |
Connection of mains cable to be performed by a skilled electrician. Compliance with the protection category is essential!

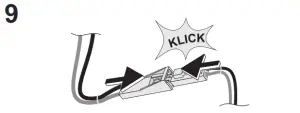

Connect the LED plug connector.
Switch the power back on.
GROSSMANN Leuchten GmbH & Co. KG l Oesterweg 29 l 59469 Ense / Germany l www.grossmann-leuchten.de
