QUICK START GUIDE
JBL CINEMA SB120
Before using this product, read the safety sheet carefully.

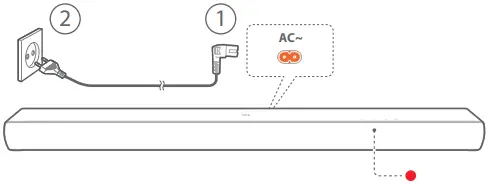

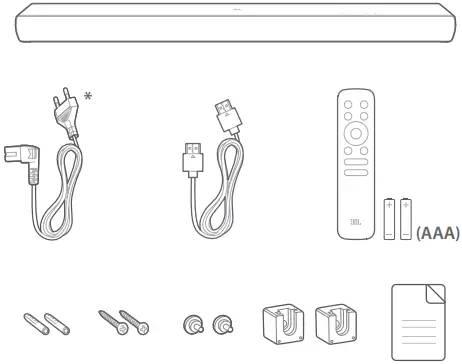

* Power cord quantity and plug type vary by regions.
 |  |

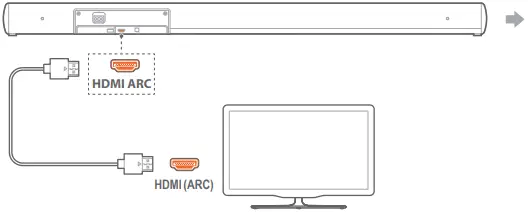

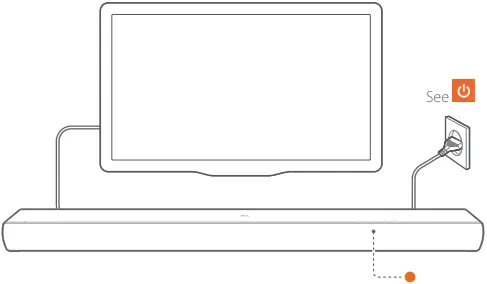

HDMI ARC
 |
|

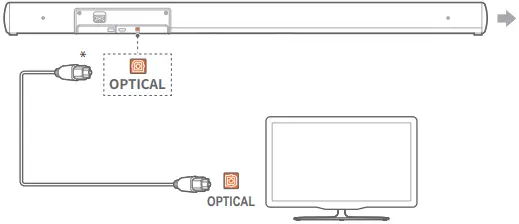

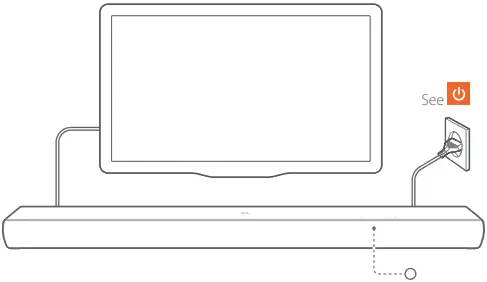

OPTICAL
 |   |
Pre-defined EQ Settings
With the remote control, select the pre-defined EQ (equalizer) settings for your audio playback.
Voice mode for clarity
 |
|

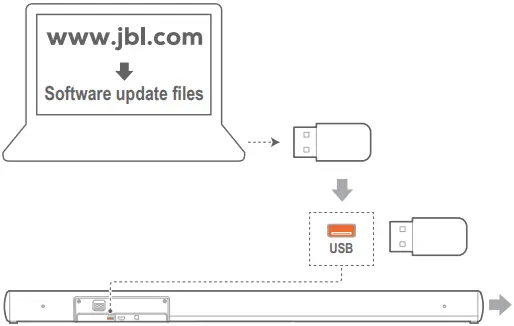

For software upgrade. USB playback is available in the US version only.
General specification:
- Power supply: 100 – 240 V~, 50/60 Hz
- Total speaker power output (Max. @ THD 1%): 110 W
- Soundbar power output (Max. @ THD 1%): 2 x 27 W full range driver + 56 W woofer
- Soundbar transducer: 2x 2.25″ full · range driver + 2x 2.5″ woofer Standby consumption: 0.5 W
- Operating temperature: 0°C – 45°C
HDMI specification:
- HDMI Video output (With Audio return channel): 1
- HDMI HDCP version: 1.4
Audio specification:
- Frequency response : 40 Hz – 20 kHz
- Max SPL: 82 dB
- Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
USB specification:
- USB port: Type A
- USB rating: 5 V DC / 0.5 A
- Supporting file format: mp3
- MP3 Codec: MPEG 1 Layer 1/2/3, MPEG 2/2.5 Layer 1/2/3
- MP3 sampling rate: 8 kHz – 48 kHz
- MP3 bitrate:
MPEG 1 Layer 1: 32 kbps – 448 kbps; MPEG 1 Layer 2: 32 kbps – 384 kbps; MPEG 1 Layer 3: 32 kbps – 320 kbps; MPEG 2/2.5 Layer 1: 32 kbps – 256 kbps; MPEG 2/2.5 Layer 2/3: 8 kbps – 160 kbps
Wireless specification:
- Bluetooth version: 5.1
- Bluetooth profile: A2DP V1.3.2, AVRCP V1.5
- Bluetooth frequency range: 2402 – 2480 MHz
- Bluetooth Max. transmitting power: < 10 dBm (EIRP)
- Bluetooth modulation: GFSK, π/4 DQPSK
Dimensions:
- Dimensions (W x H x D) : 950 x 62 x 105 mm / 37.4″ x 2.44″ x 4.13″
- Weight: 2.85 kg
- Packaging dimensions (W x H x D): 1160 x 110 x 155 mm / 45.67″ x 4.33″ x 6.10″; 1180 x 115 x 170 mm / 46.46″ x 4.53″ x 6.69″ (Europe Version Only)
- Packaging weight (Gross weight): 3.6 kg; 3.8 kg (Europe Version Only)
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
