Paul Neuhaus Q-ETIENNE LED pendant light, matt brass, Smart Home

Paul-Neuhaus-Q-ETIENNE-LED-pendant-light,-matt-brass,-Smart-Home-PRODUCT

This product contains a light source of energy efficiency class E. This product contains light sources of energy efficiency class F.

  • 230V/50Hz~
  • 1x LED-Board 27 4V DC/5 7 W
  • 3x LED-Board 27 4V DC/8 W not changeable

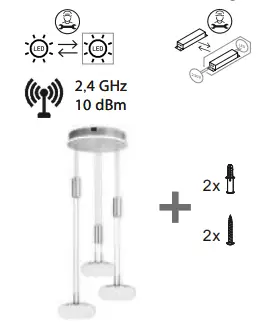

TOOL REQUIRED

Paul-Neuhaus-Q-ETIENNE-LED-pendant-light,-matt-brass,-Smart-Home-FIG1

FEATURE

Paul-Neuhaus-Q-ETIENNE-LED-pendant-light,-matt-brass,-Smart-Home-FIG2

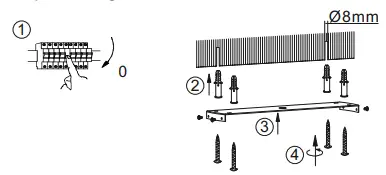

fitting

Paul-Neuhaus-Q-ETIENNE-LED-pendant-light,-matt-brass,-Smart-Home-FIG3

as pendant light

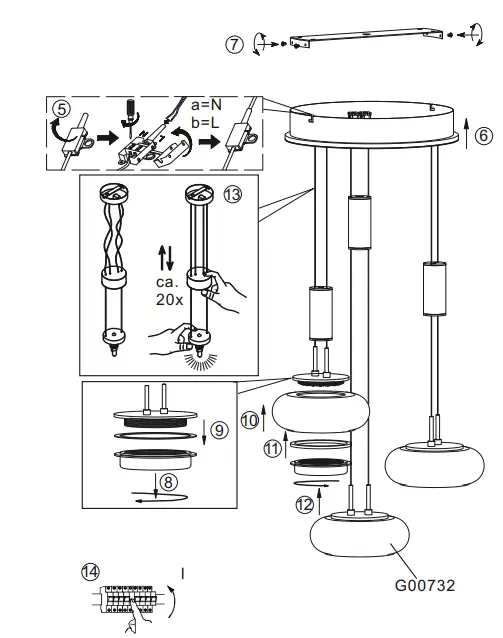

electrical connection

Paul-Neuhaus-Q-ETIENNE-LED-pendant-light,-matt-brass,-Smart-Home-FIG4

230 voltage/50 Hz connection

teach remote control

Paul-Neuhaus-Q-ETIENNE-LED-pendant-light,-matt-brass,-Smart-Home-FIG5

See Q-remote control manual

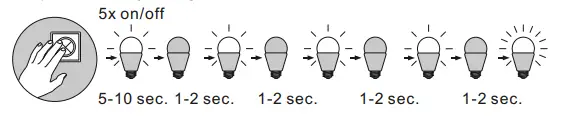

Reset

Paul-Neuhaus-Q-ETIENNE-LED-pendant-light,-matt-brass,-Smart-Home-FIG6

To integrate the lamp into a ZigBee network, reset the lamp to the factory setting.

Paul Neuhaus GmbH
Olakenweg 36. 59457 Well
Germany
Telefon: + 49 (0) 29 22-97 21- 0
Telefax: + 49 (0) 29 22-97 21- 9120
E-mail: [email protected]
https://scm.paul-neuhaus.de/public/conformity/
