Paul Neuhaus 2078-18-01 Q-etienne Led Pendant Light Instruction Manual

Fitting instructions

This product contains a light source of energy efficiency class <E>.
This product contains light sources of energy efficiency class <F>.

836510

230V/50Hz~
1x LED-Board 27,4V DC/5,7W
3x LED-Board 27,4V DC/8W

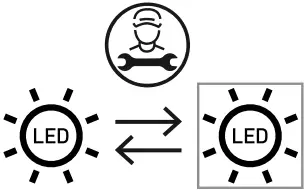

not changeable

2,4 GHz
10 dBm

5,7 W / 8 W
700 lm / 950 lm

35 W
2.000 lm

     LED-Board

t             25.000 h / 20.000 h

T_K           2.700 – 5.000 K

   15.000 x

    < 0,5 s

AAA, 1,5V

Incl. IR remote control

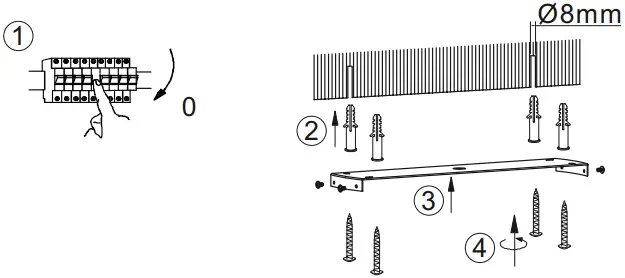

1 | Fitting

as pendant light

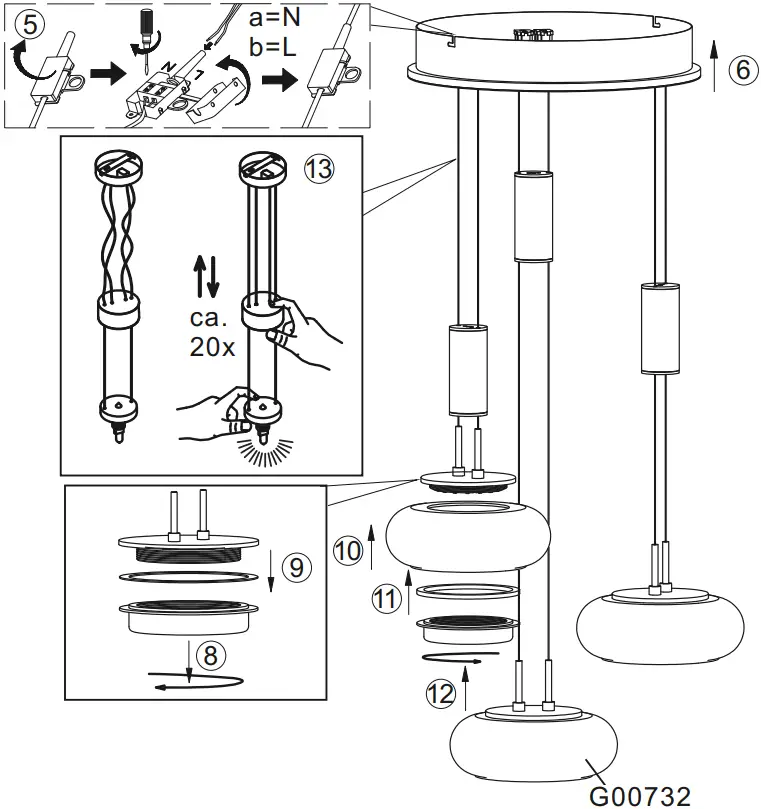

2 | Electrical Connection

230 voltage/50 Hz connection

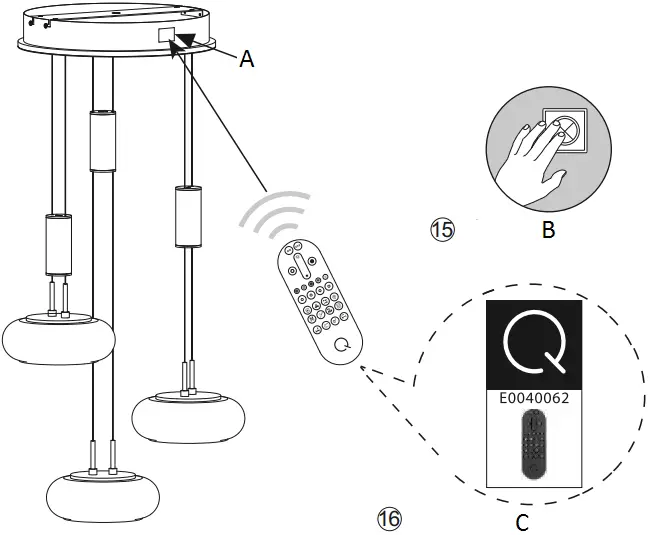

3 | Teach Remote Control

See Q-remote control manual

A Q-receiver
B Switch on the lamp
C Read instruction manual

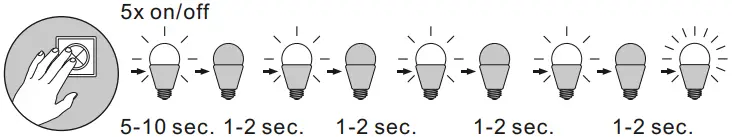

Reset

To integrate the lamp into a ZigBee network, reset the lamp to the factory setting.

Paul Neuhaus GmbH
Olakenweg 36 • 59457 Werl
Germany

Telefon: + 49 (0) 29 22-97 21- 0
Telefax: + 49 (0) 29 22-97 21- 9120
E-mail : [email protected]
https://scm.paul-neuhaus.de/public/conformity/
