SMART HOME LIGHTS
Fitting instructions
834293
230V/50Hz~

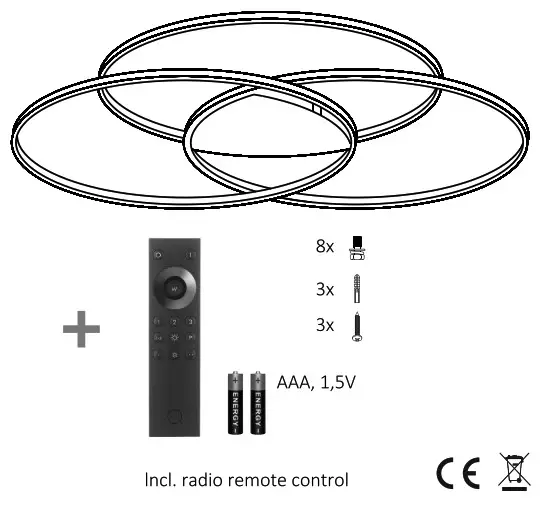

-3x 18W LED-Board not changeable
2,4 GHz
10 dBm
 | 18 W 1.980 Im 62 W 2.870 Im LED-Board 25.000 h 2.700 – 5.000 K 15.000 x <0,5 s dimmable with rrc |

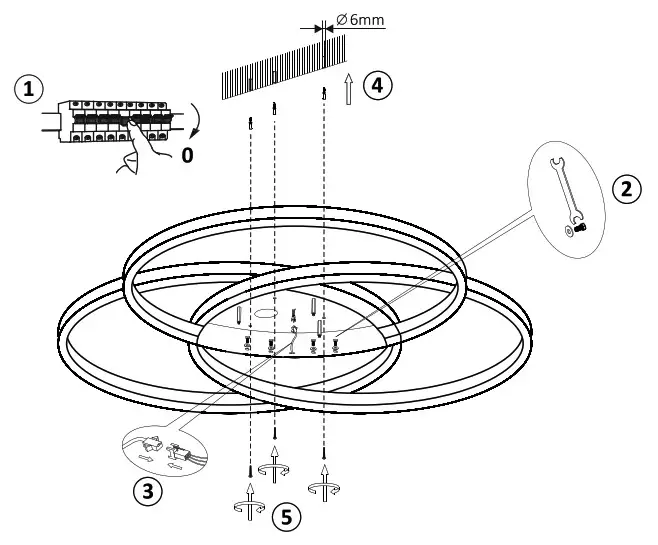

Fitting
As ceiling Light

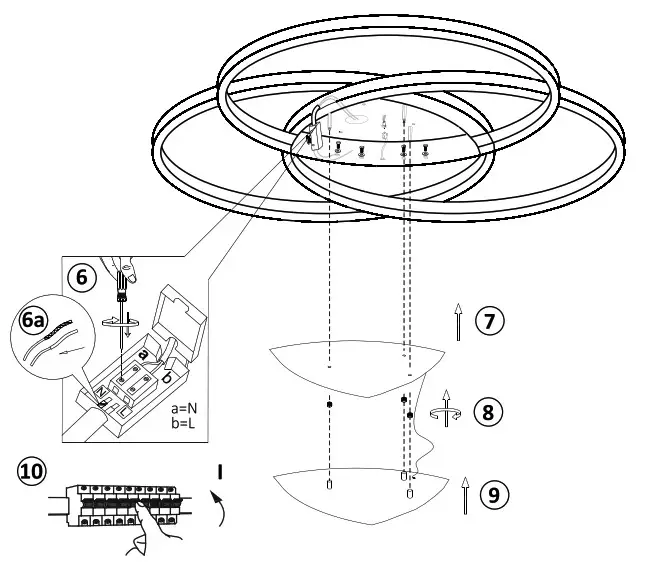

Electrical connection
230 Voltage/ 50Hz connection

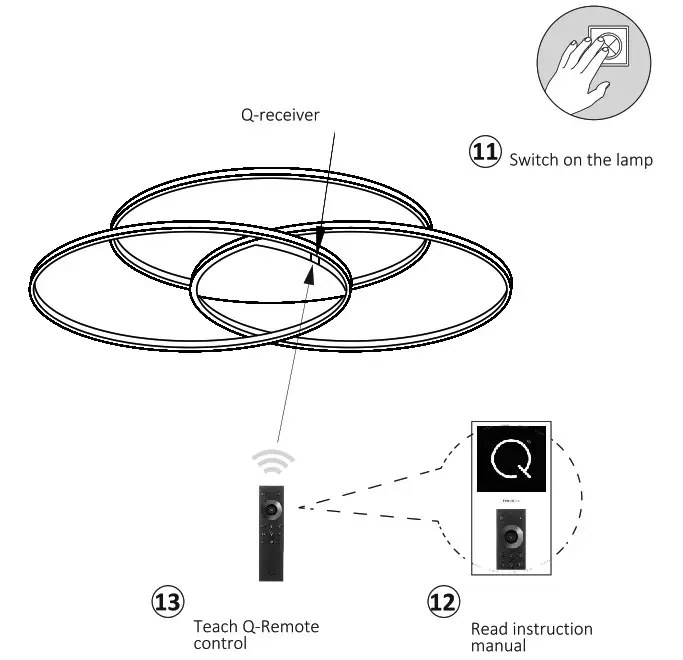

Teach remote control
See Q-remote control Manual
http://www.paul-neuhaus.de/cms-wAssets/img/Videos/Q_Video02.mp4
http://q.paul-neuhaus.de/

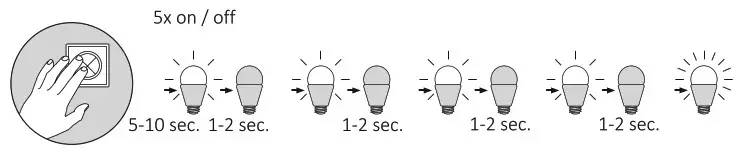

Rest
RestRest the lamp, factory new
This device fulfills the fundamental requirements of Directive 2014/53/EU (Radio Equipment Directive) of the European Parliament and of the Council of the European Union dated 16.04.2014 on items of radio equipment.
The full declaration of conformity can be accessed at the Internet address given below.
Paul Neuhaus GmbH
Olakenweg 36
• 59457 Werl Germany
Telefon: +49(0)2922-9721-0
Telefax: +49(0)2922-9721-9120
E-mail: [email protected]
https://scm.paul-neuhaus.de/public/conformity/
