SMART HOME LIGHTS
Fitting instructions
This product contains a light source of energy efficiency class <E>.
This product contains light sources of energy efficiency class <F>.
835044
230V/50Hz~
1x LED-Board 27 4V DC/5 7 W
3x LED-Board 27 4V DC/8 W

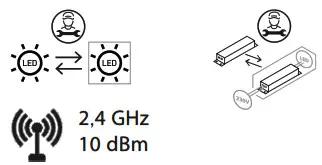

not changeable
 | 5,7 W / 8 W 700 lm / 950 lm 35 W 2.000 lm LED-Board 25.000 h / 20.000 h 2.700 – 5.000 K 15.000 x < 0,5 s |

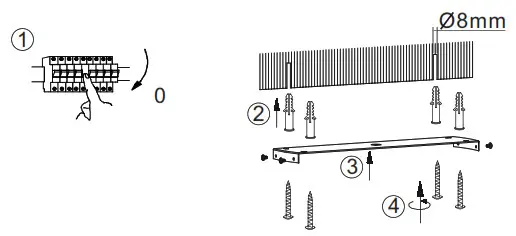

Fitting
As pendant light

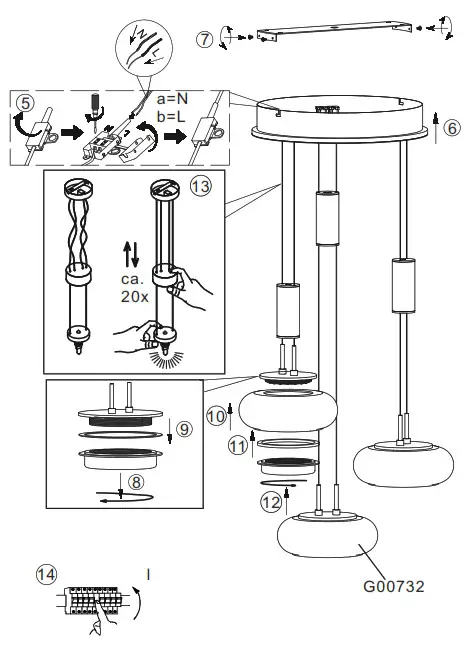

Electrical connection
230 voltage/50 Hz connection

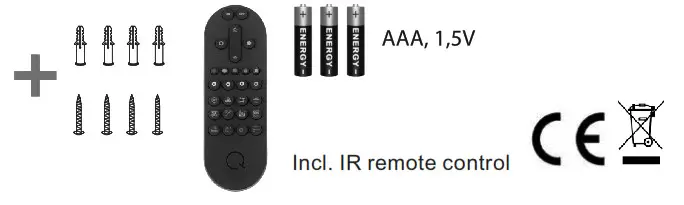

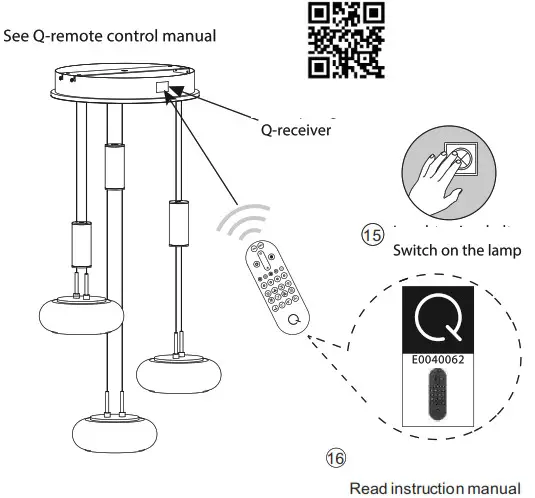

Teach remote control
See Q-remote control manual

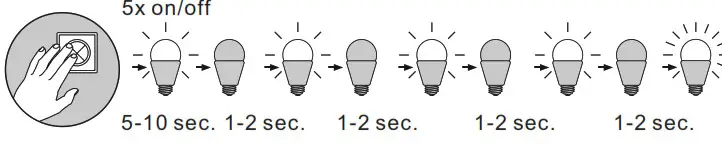

Reset
To integrate the lamp into a ZigBee network, reset the lamp to the factory setting.
Paul Neuhaus GmbH
Olakenweg 36. 59457 Well
Germany
Telefon: + 49 (0) 29 22-97 21- 0
Telefax: + 49 (0) 29 22-97 21- 9120
E-mail: [email protected]
https://scm.paul-neuhaus.de/public/conformity/
