Paul Neuhaus 2076-55 Q Etienne Led Pendant Light Instruction Manual

2076-55 Q ETIENNE LED Pendant Light
Instruction Manual

This product contains a light source of energy efficiency class <E>.
This product contains light sources of energy efficiency class <F>.

835040

230V / 50Hz~
1x LED-Board 27,4V DC / 5,7W
2x LED-Board 27,4V DC / 8W

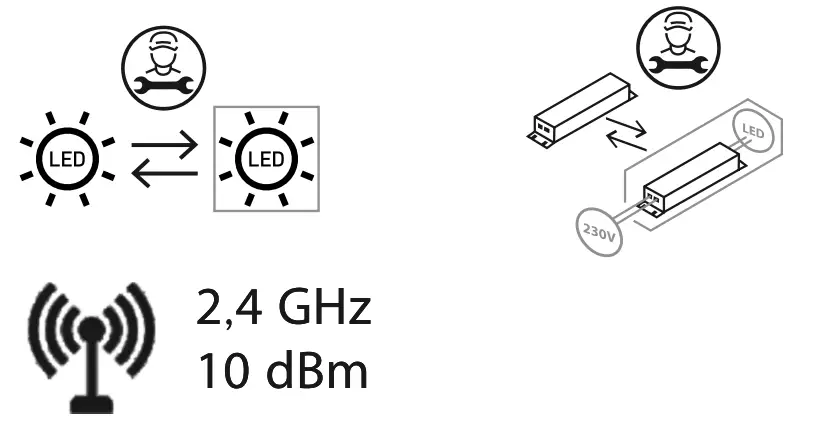

nicht wechselbar / not changeable

	5,7 W / 8 W 700 lm / 950 lm
	25,5 W 1.300 lm
	LED-Board
t	25.000 h / 20.000 h
Tk	2.700 – 5.000 K
	15.000 x
	< 0,5 s

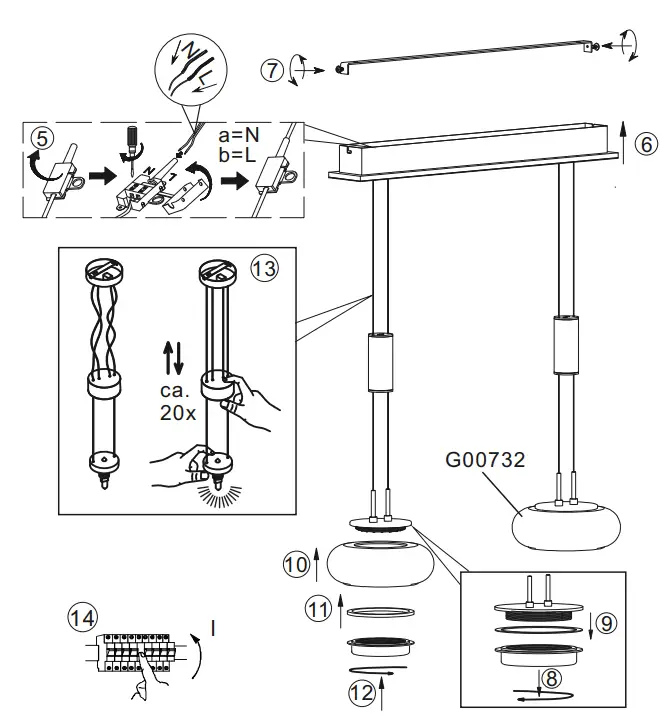

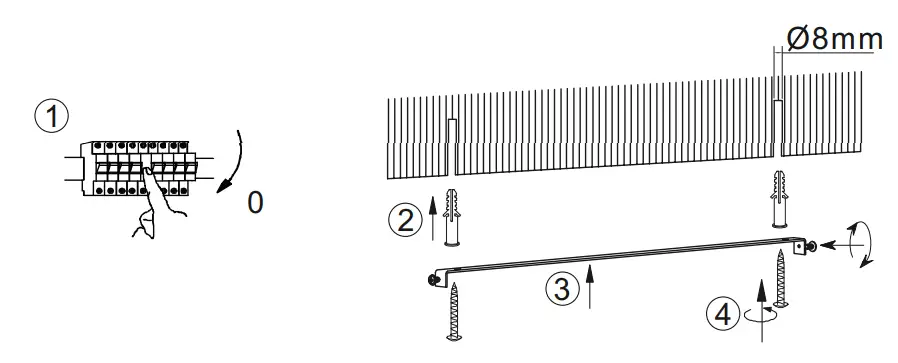

fitting

as pendant light

electrical connection

230 voltage/50 Hz connection

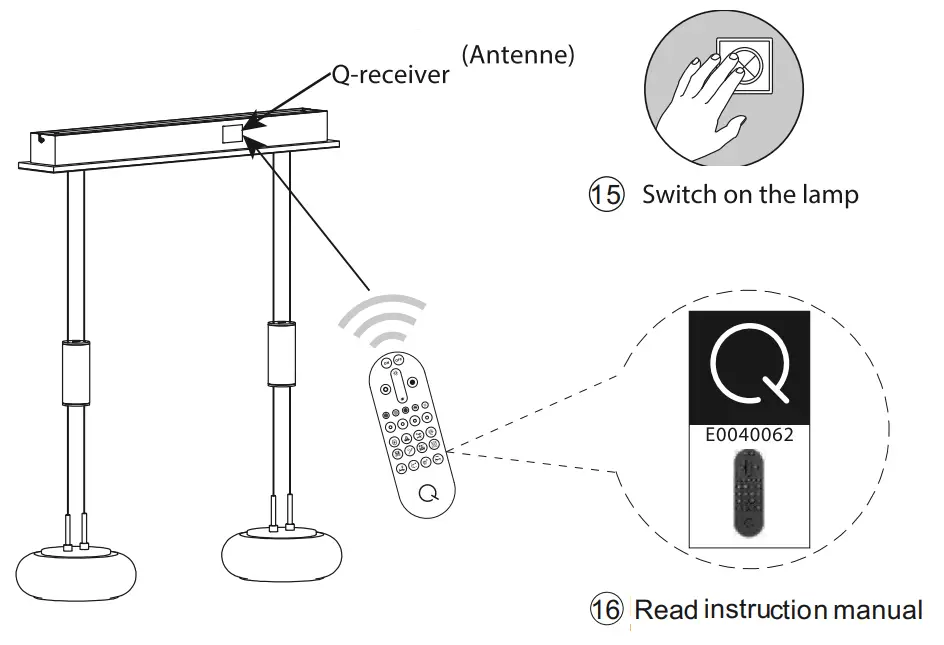

Teach remote control

See Q- remote control manual

http://q.paul-neuhaus.de/

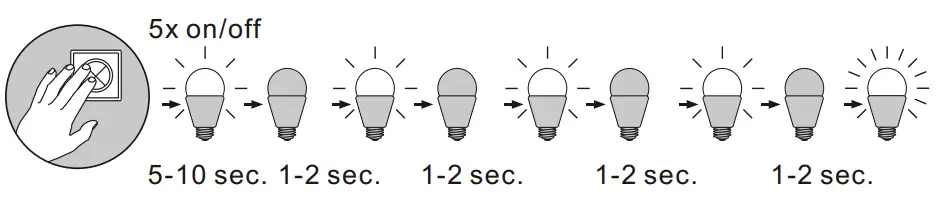

Reset

To integrate the lamp into a ZigBee network, reset the lamp to the factory setting.

Paul Neuhaus GmbH
Olakenweg 36 . 59457 Werl
Germany
Telefon: + 49 (0) 29 22-97 21- 0
Telefax: + 49 (0) 29 22-97 21- 9120
E-mail: [email protected]
https://scm.paul-neuhaus.de/public/conformity/
