Higdon Outdoors 50033 Xs Pulsator Mallard Drake 12v Instructions

HIGDON OUTDOORS 50033 XS Pulsator Mallard Drake 12V

Product Information

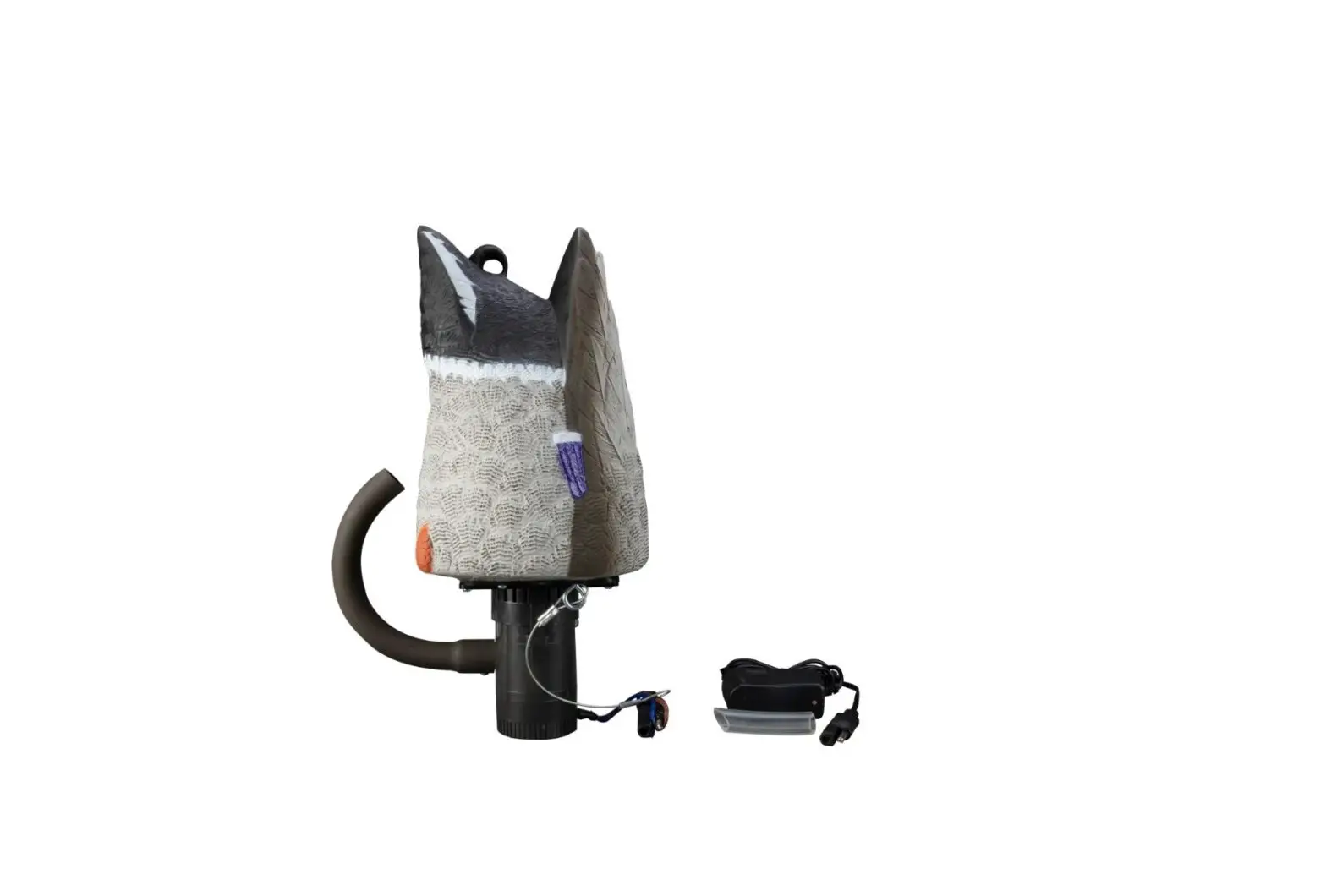

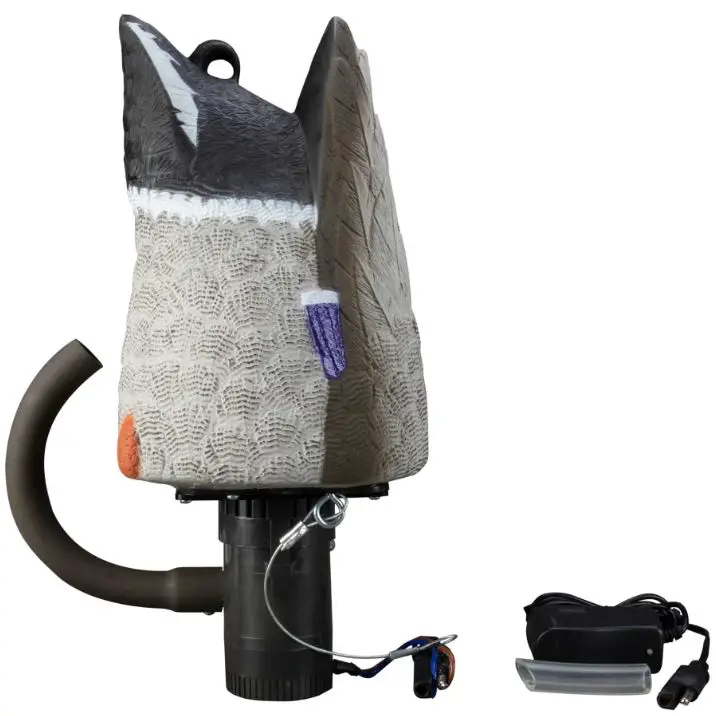

The Pulsator XS is a battery-operated bilge pump assembly used in hunting decoys. The product comes in various models such as Mallard Drake, Mallard Hen, Pintail, Canada Goose, and a combination of Mallard Drake/Drake and Drake/Hen. The product also includes a waterproof battery box and a Sun Li-Ion Battery 12V 2.5Ah that powers the bilge pump. The battery has been recalled, and customers need to check if their battery is part of the recall by following the instructions below.

Product Usage Instructions

1. Identifying if your battery has been recalled:
   • Tools needed: Phillips Head Screwdriver
   • Pinch tabs and remove bilge pump.
   • Using a Phillips head screwdriver, remove four screws, freeing the bilge pump assembly.
   • Remove waterproof battery box.
   • Release tabs to open battery box and remove the battery.
   • Check the label on the battery for make and model information.
   • If the TOP line on the battery sticker reads Sun Li-Ion Battery, it IS part of the recall. If your battery says Sun Li-Ion battery on the top line, your next step is to complete our recall form at: www.higdonoutdoors.com/recall
   • Please Note: ANYTHING other than these exact words on the top line means your battery is NOT part of the recall.
2. Replacing the recalled battery:
   • If your battery is part of the recall, you can fill out the recall form at www.higdonoutdoors.com/recall to receive a free replacement battery.
   • Once you have received your replacement battery, follow the instructions provided in the user manual for installing the new battery.

Tool Needed

Phillips Head Screwdriver

INSTALLATION

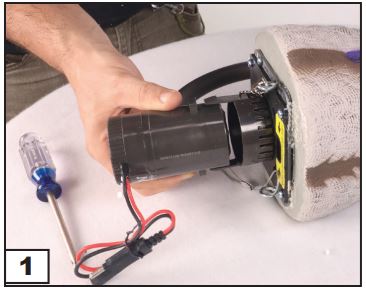

1. Pinch tabs and remove bilge pump

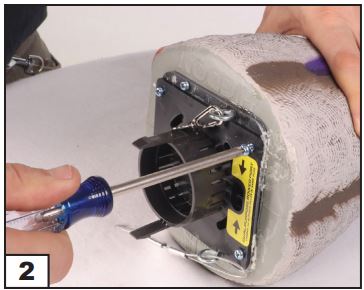

2. Using a phillips head screw driver, remove four screws, freeing the bilge pump assembly.
3. Remove waterproof battery box

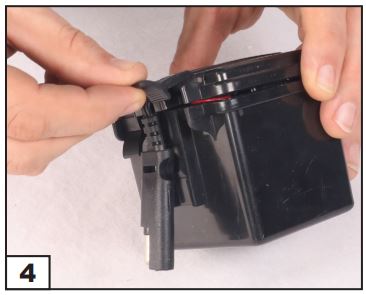

4. Release tabs to open battery box and remove battery.

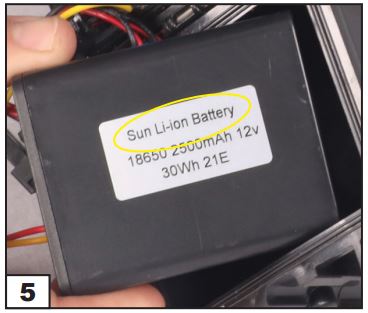

5. Remove battery and check the label for make and model information. If the TOP line on the battery sticker reads “Sun Li-Ion Battery,” it IS part of the recall. If your battery says “Sun Li-Ion battery” on the top line, your next step is to complete our recall form at: www.higdonoutdoors.com/recall.

Please Note: ANYTHING other than these exact words on the top line means your battery is NOT part of the recall
