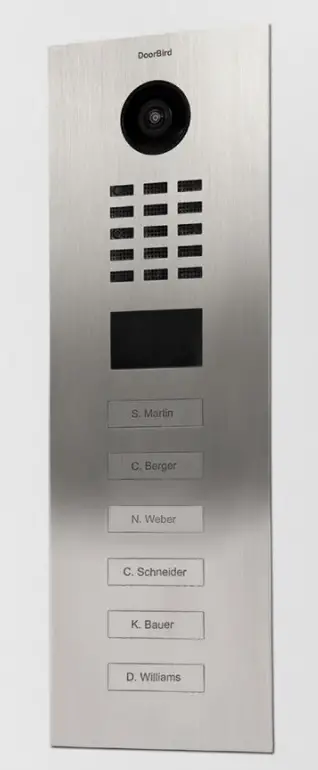

DoorBird D2106V IP Video Door Station
HOW DOES IT WORK?

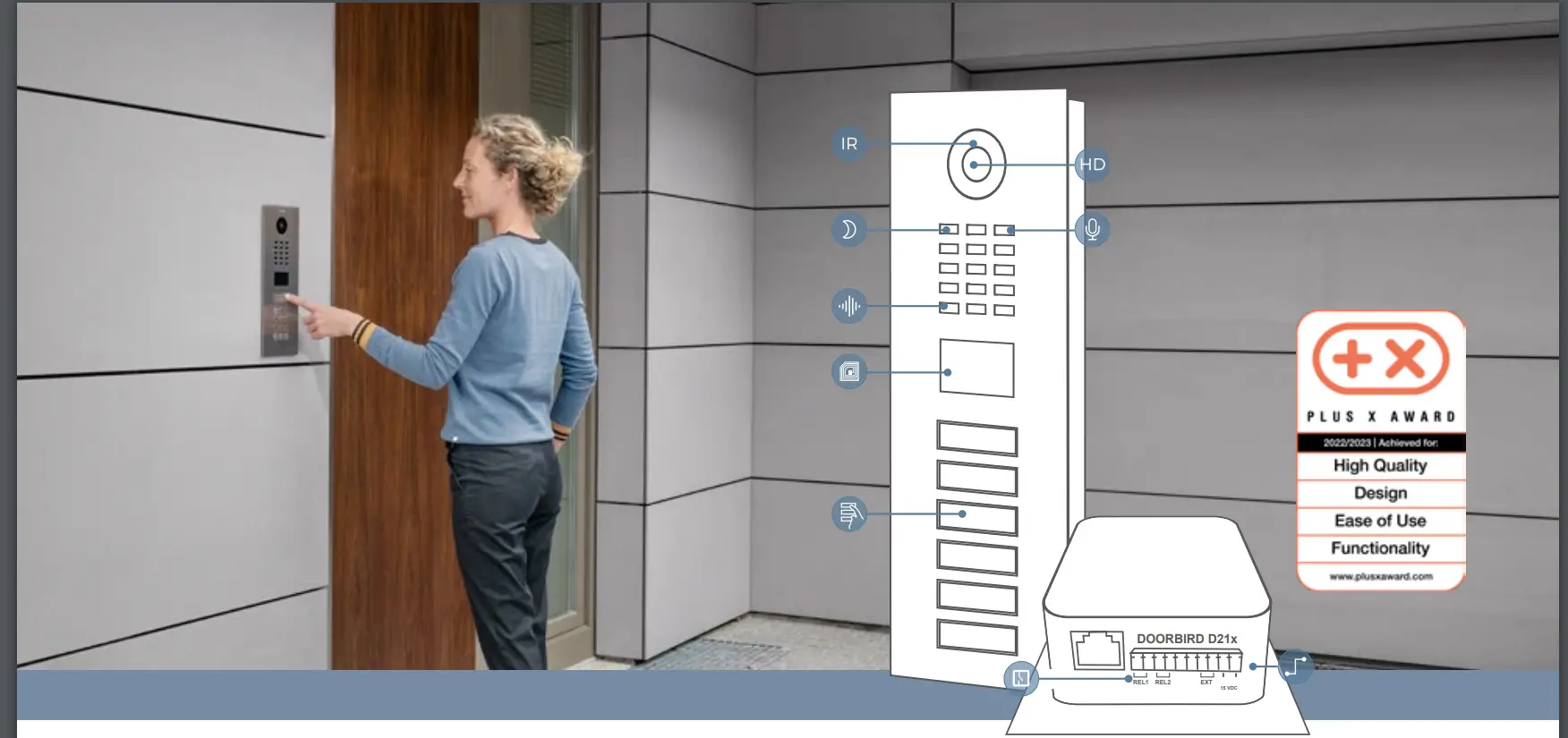

Imagine, you are not at home and your children have locked themselves out or the courier wants to deliver a parcel. With Door Bird this is no longer a problem. Every time someone rings the doorbell you will get a push notification on your smartphone or tablet. Via the Door Bird App you can talk to visitors and also see them live in HD quality. You will never miss a visitor again. With Door Bird you are on the move and yet at home, even if a burglar rings at the door to check if someone is at home.
SMART HOME STARTS AT THE FRONT DOOR
Door Bird is the smart solution for your house entrance. Simply connect your Door Bird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a stand-alone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as an electric door opener can still be used and controlled via the Door Bird App.
QUALITY MADE IN GERMANY
All Door Bird products are designed, developed and produced by Bird Home Automation Group in Berlin, Germany. We manufacture all products with the greatest care and precision, and deliver them to our customers all over the world.
ADVANTAGES
Open API
- Local interface for integration with third-party systems and SIP
Video and audio call
- On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
Smart Transmission Mode (STM)
- Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
Smart Home & NVR compatible
- Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and other
Individual action schedules, e.g.:
- RFID card “abc” has only access on Wednesday from 9 am until 11 am
- 4D motion sensor switches on external lamp between 9 pm and 6 am
HDTV Video
- Ultra wide-angle, hemispheric lens, 180°
Motion sensor with 4D technology
- Distance up to 10 m adjustable via App (interval: 1 m)
Light sensor
- For night vision mode
Call button
- With backlit nameplate
Automatic door buzzer
- For use in medical offices and office environments
Microphone
- Clear voice transmission
Easy connection to the network
- Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DooBird A1071” (PoE, network data)
Geofencing
- Automatic door and gate opening when returning home
Noise reduction and echo cancellation (AEC, ANR)
Two freely configurable bi-stable switching relays
- Two doors or gates can be controlled via App
- Status configurable via App: temporary or permanent circuit
Night vision
- With 12 Infrared LEDs
RFID reader
- Configurable remotely via App (e.g. time frame)
TECHNICAL SPECIFICATIONS
| GENERAL | |
| Front panel | 3 mm (0.12 in) Available in brushed stainless steel V2A / V4A and V2A with bronze and titanium finish, DB 703, RAL 7016, Graphite Black (Raven Polar) |
| Mounting type | Flush- or surface-mounted, mounting housing sold separately |
| Call button | Illuminated |
| Nameplate | Plastic. Engravable metal nameplate sold separately, see www.doorbird.com/buy |
| Power supply | 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
| Weight | 1208 g |
| Connectors |
|
| Weather-proof | Yes, IP65 |
| Approvals | IP65, CE, FCC, IC, RoHS, IK08, REACH, IEC/EN 62368, IEC/EN 62471 |
| Dimensions | 403 x 131 x 45,75 mm (H x W x D) 15.87 x 5.16 x 1.80 in (H x W x D) |
| Operating conditions | -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non condensing) |
| Scope of delivery | 1x Main Electrical Unit 1x Front panel 1x RFID key fob 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
| Warranty | see www.doorbird.com/warranty |
| CURRENT SYSTEM REQUIREMENTS | |
| System requirements | Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server Network: Ethernet Network, with DHCP |
| Recommended installation height | Camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height. |
| VIDEO | |
| Camera | HDTV 720p, dynamic (VGA – HDTV) |
| Lens | High-end ultra wide-angle hemispheric lens 180° (D), 140° (H), 100° (V), straightened, IR-capable |
| Night-vision | Yes, light sensor, automatic IR-cut filter, 12 Infrared LEDs (850 nm) |
| AUDIO | |
| Audio components | Speaker and microphone, noise reduction and echo cancellation (ANR, AEC) |
| Audio streaming | Two-way, full duplex |
| NETWORK | |
| Ethernet | RJ45 jack, PoE 802.3af Mode-A, 10/100 Base-T |
| Supported protocols | HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM |
| MOTION SENSOR | |
| Type | Active |
| Detection angle | 54° (H), 70° (V) |
| Range | 1 – 10 m (3.3 – 32.9 ft), depends on environment, configurable in 1 m (3.3 ft) steps. |
| Technology | 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE) |
| Configuration | Via App, e.g.
|
| RFID | |
| Type | Active Reader Passive Tag (ARPT) system |
| Standard | ISO/IEC 18000-2:2009 Part 2, EM4100, EM4102 |
| Frequency | 125 KHz |
| Range | 0 – 3 cm, depends on environment |
| Antenna | Internal |
| Compatible Transponder | RFID key fobs, sold separately, see www.doorbird.com/buy Up to 500 tags manageable |
| Configuration | Via App, e.g.
|
| INTEGRATED WIRELESS MODULES | |
| RFID | 125 KHz |
| Sensor | 24 GHz, can be disabled |
| THIRD-PARTY INTEGRATION (DOORBIRD CONNECT) | |
| Partnerintegrations | see www.doorbird.com/connect |
| API | see www.doorbird.com/api |
| Simultaneous video streams | One, for event-based and continuous recording |
| OPTIONAL ACCESSORIES | |
| Sold separately |
|

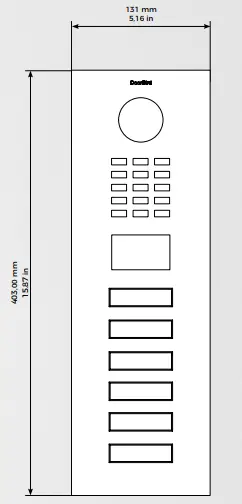

TECHNICAL DRAWINGS
Front panel material thickness: 3.0 mm (0.12 in)
Special remarks:
Assembly requires professional skills or a technician.
Errors and omissions excepted. | Last update 11/2022 – Copyright © Bird Home Automation GmbH – www.doorbird.com
