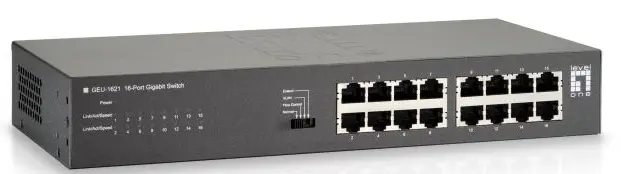

levelone GEU-1621 16 Port Gigabit Switch
Hardware Installation Figures

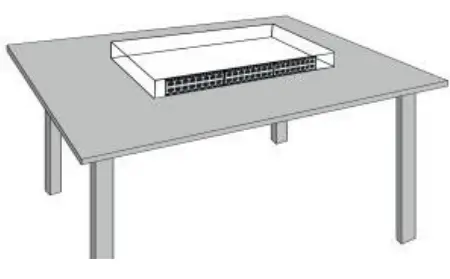

Flat Surface Installation
Installation

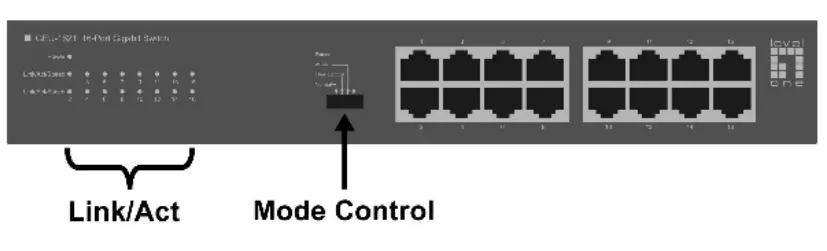

LED Indicator
| LEDIndicator | Status | Meaning |
| Power | Solid green | Power is on. |
| Off | Power is off. | |
| Link/Act/Speed | Solid green | A device is connected to the port at a speed of 1000Mbps |
| Solid orange | A device is connected to the port at a speed of 10/100Mbps | |
| Off | The port is NOT connected. |
Mode Control:
You can select the switch mode.
- Normal mode: All ports can communicate with each other.
- Flow control mode: The flow control function is close, all ports can communicate with each other.
- VLAN mode:1~14 ports can not communicate with each other but can communicate with 15~16 ports.
- Extend mode: Speed of 1~8 ports is reduced to 10 Mbps, transmission the distance can reach 250m
Connecting Equipment
- Step1. Inspect the PowerAdapter carefully, and make sure that it is properly connected to a power source.
- Step2. Plug-in the Power Adapter to the Switch.
- Step3. Connect your network devices with the switch by using an Ethernet cable. (e.g. Cat-5e)

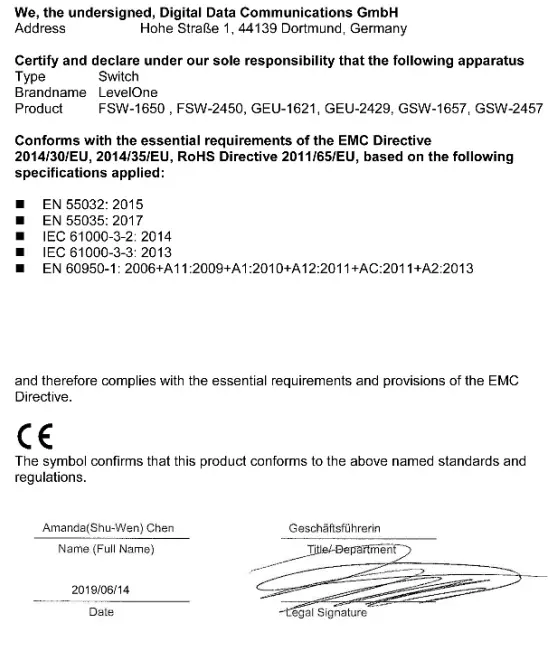

Declaration of Conformity
