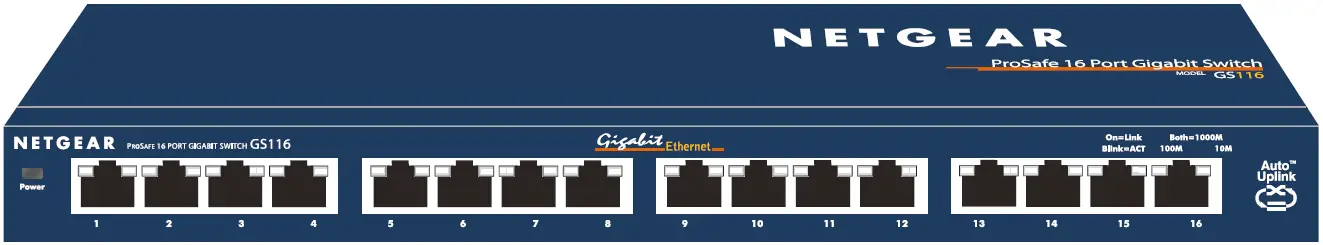

NETGEAR GS116 ProSafe 16-Port Gigabit Switch
How to Install ProSafe 16-Port Gigabit Switch GS116v2h2
The steps are the following:
Step 1. Connect equipment

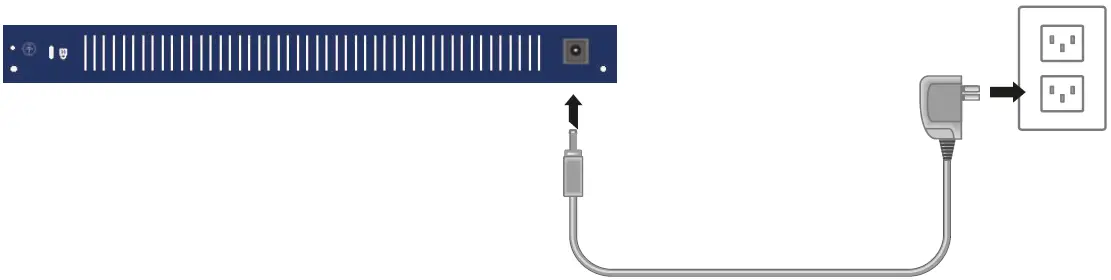

Step 2. Connect power
Step 3. Check Status
Power LED

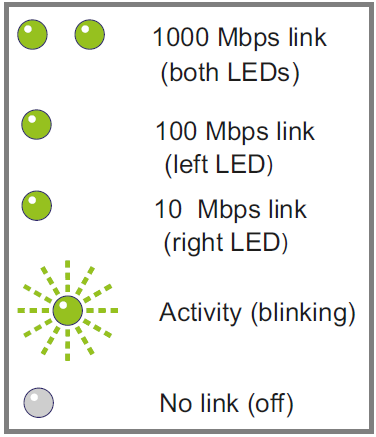

Port LEDs
Specifications
| Specification | Description |
| Network interface | RJ-45 connector for 10BASE-T, 100BASE-TX, or 1000BASE-T |
| Network cable | Category 5e (Cat 5e) or better Ethernet cable |
| Ports | 16 |
| Power adapter | 12W max. and 12V@ 1A DC input |
| Power consumption | 9.5W max. |
| Weight | 895g (1.973 lb.) |
| Dimensions (W x D x H) | 286 mm x 101 mm x 27 mm
11.26 in. x 3.98 in. x 1.06 in. |
| Operating temperature | 0 to 50° C (32 to 122° F) |
| Operating humidity | 10% to 90% relative humidity, non-condensing |
| Electromagnetic compliance | CE Class A, FCC Class A, VCCI Class A, C-Tick Class A, CCC |
| Safety agency approvals | CE mark, CB, CCC |
Technical Support
After installing your device, locate the serial number on the label of your product and use it to register your product at https://my.netgear.com. You must register your product before you can use NETGEAR telephone support. NETGEAR recommends registering your product through the NETGEAR website. For product updates and web support, visit http://support.netgear.com.
User Support
For the complete EU Declaration of Conformity, visit http://support.netgear.com/app/answers/detail/a_id/11621/.
Statement of Conditions: In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
This symbol appears in accordance with the European Union Directive 2002/96 on the Waste Electrical and Electronic Equipment (the WEEE directive). If you dispose of this product in the European Union, treat and recycle it in accordance with your jurisdiction’s laws that implement the WEEE directive.
NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. Other brand and product names are registered trademarks or trademarks of their respective holders. © NETGEAR, Inc. All rights reserved.
For indoor use only in all EU countries and Switzerland.
FAQ’s
The NETGEAR GS116 ProSafe 16-Port Gigabit Switch is a network switch that allows you to connect multiple devices to a network using Ethernet cables. It is designed to provide fast and reliable data transfer between devices, making it ideal for small businesses, home offices, and households with multiple devices.
The NETGEAR GS116 ProSafe 16-Port Gigabit Switch can connect up to 16 devices to a network.
The NETGEAR GS116 ProSafe 16-Port Gigabit Switch has a maximum data transfer rate of 1 Gbps per port.
Yes, the NETGEAR GS116 ProSafe 16-Port Gigabit Switch supports Quality of Service (QoS), which allows you to prioritize certain types of network traffic over others.
Yes, the NETGEAR GS116 ProSafe 16-Port Gigabit Switch supports jumbo frames, which can improve network performance for certain types of data transfers.
No, the NETGEAR GS116 ProSafe 16-Port Gigabit Switch is a plug-and-play device that does not require any configuration. Simply connect your devices to the switch using Ethernet cables, and the switch will automatically detect and configure the connections.
Yes, the NETGEAR GS116 ProSafe 16-Port Gigabit Switch comes with a limited lifetime warranty.
The NETGEAR ProSafe 16-Port Gigabit Switch is a network switch designed to connect multiple devices, such as computers, servers, and printers, to a local area network (LAN) with gigabit Ethernet speeds.
The key features of the NETGEAR ProSafe 16-Port Gigabit Switch include 16 gigabit Ethernet ports, plug-and-play setup, auto-sensing and auto-negotiation of network speeds, and support for jumbo frames up to 9KB.
The benefits of using the NETGEAR ProSafe 16-Port Gigabit Switch include faster data transfer speeds, reduced network congestion, improved network performance and reliability, and easier network management.
The NETGEAR ProSafe 16-Port Gigabit Switch is designed for plug-and-play setup, so you can simply connect your devices to the switch using Ethernet cables and it will automatically detect and configure the network settings. However, you may need to configure some advanced settings using the web-based management interface.
The NETGEAR ProSafe 16-Port Gigabit Switch comes with a limited lifetime warranty, which covers defects in materials and workmanship for the life of the product.
Yes, the NETGEAR ProSafe 16-Port Gigabit Switch is compatible with any Ethernet-enabled device, regardless of the brand or model.
Download this PDF Link: NETGEAR GS116 ProSafe 16-Port Gigabit Switch Installation Guide
