Grandstream Gwn7701 8 Port Unmanaged Gigabit Switch Installation Guide

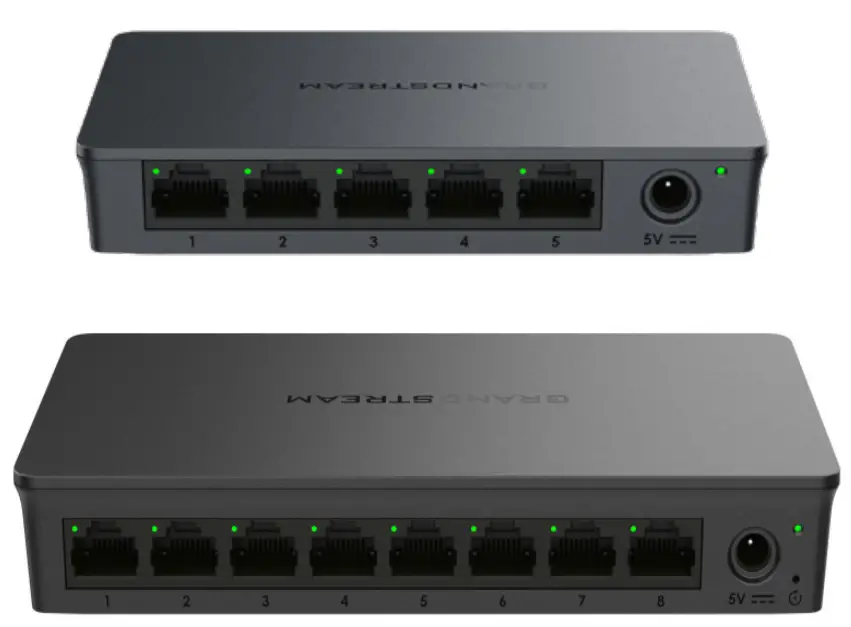

GRANDSTREAM GWN7701 8 Port Unmanaged Gigabit Switch

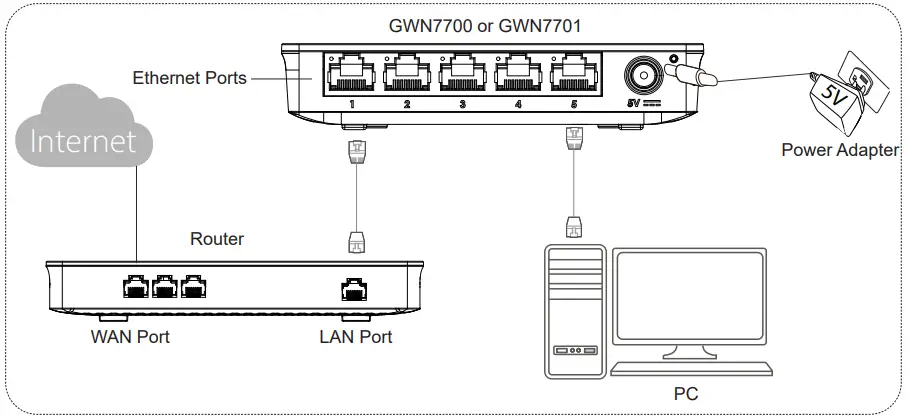

CONNECTION

LED indicator

The operation environment and peripheral

• Operation Temperature: 0°C to 40°C
• Storage Temperature: -10°C to 60°C
• Humidity: 10% to 90% Non-condensing
• Adapter: Output: +5VDC, 0.6A, 3W, UL certified
• Ethernet port: 10/100/1000Mbps RJ-45 port
• Power Jack: 5V DC power port; UL Certified
• Refer to online documents and FAQ for more detailed information:

• https://www.grandstream.com/our-products

FCC

U.S. FCC Part 15 Regulatory Information

• This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: this device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation.
• Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
• Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
• This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
• However, there is no guarantee that interference will not occur in a particular installation.
• If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAN ICES-003(B) / NMB-003(B)

• If trouble is experienced with this equipment, please contact (Agent in the US):
• Company Name: Grandstream Networks, Inc.
• Address: 126 Brookline Ave, 3rd Floor Boston, MA 02215, USA
• Tel: 1-617-5669300
• Fax: 1-617-2491987
• Grandstream Networks, Inc.
• 126 Brookline Ave, 3rd Floor
• Boston, MA 02215. USA
• Tel : +1 (617) 566 – 9300
• Fax: +1 (617) 249 – 1987
• www.grandstream.com
• For Certification, Warranty, and RMA information, please
• visit: www.grandstream.com
