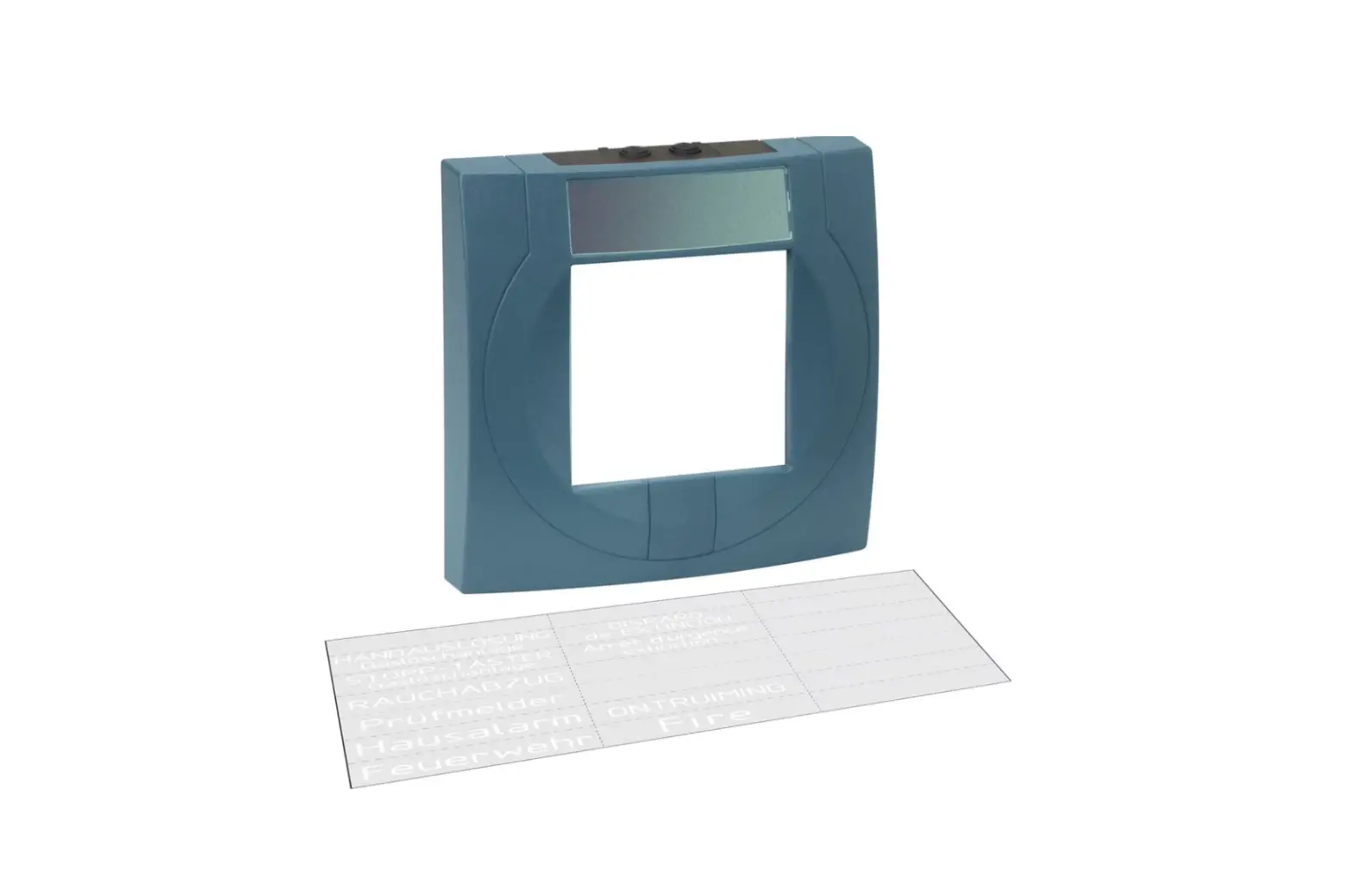

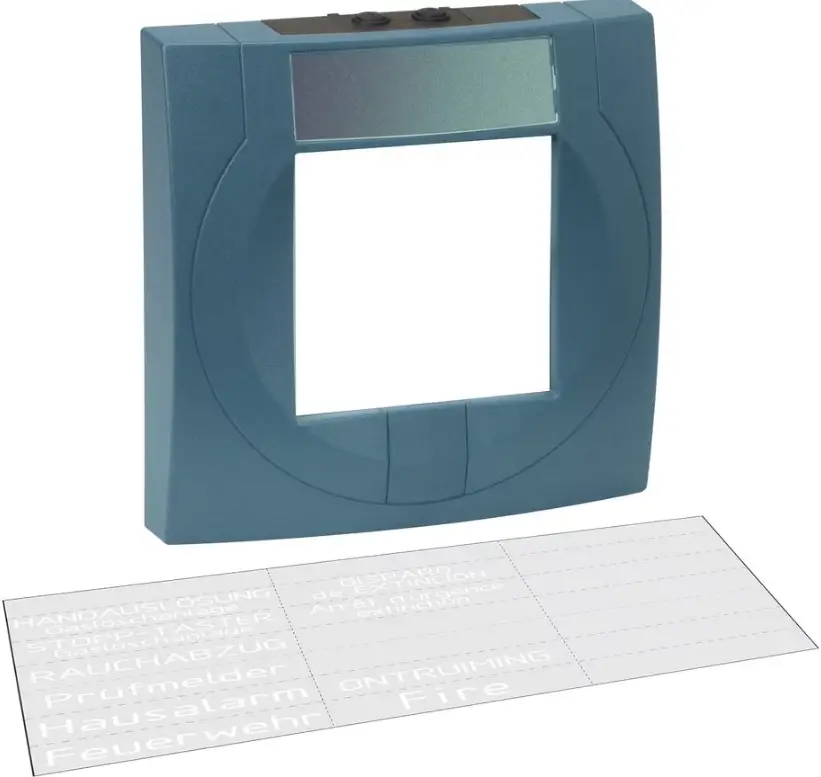

ESSER RAL 5015 MCP Housing Large with Glass Pane Owner’s Manual
Features
- Slimline design
- Low power consumption
- Plug-in connection clamps
- Optional terminal clamps
- 2 x cable entries on top, at the bottom and on the rear panel
- Fixing on standard flush mounted installation box
- Test function via manual call point service key
- Detectors that are not ready for operation can be marked with the “Out of order” label by reversing the enclosed operating front foil
Common technical data
- Type of protection: IP 44
- Housing: ASA plastic
- Installation: surface mount
- Weight: approx. 83 g (w/o electronic module)
- Dimensions: W: 133 mm H: 133 mm D: 36 mm
The Part No. 804902 electronic module in a blue housing complies with the EN 12094-3 and thus can be applied as an electronic stop button for gas extinguishing systems in dry, non-hazardous production sites. For different use such as application as “HOUSE ALARM” push button, ready-made labels are provided. Take note, for a LARGE MCP you have to order the electronic module and the MCP housing separately to have a complete MCP.
Labeling foil set (white) for various international applications.
Accessories
- 704910: Spare glass for manual call points
- 769910: Plastic spare key
- 769911: Metal key for large MCP
- 769916: Service key
- 704917: Option IP 55 shrink sleeve for large MCP 80490x
- 704911: Universal foil for large MCP housing ABS
Support
Part-No.: 704901
