Danfoss V20nf Vane Pump Owner's Manual

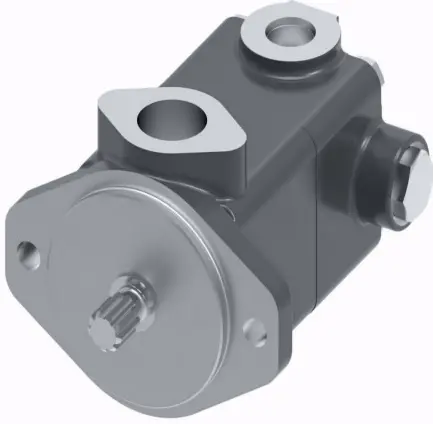

Danfoss V20NF Vane Pump

Vane Pump

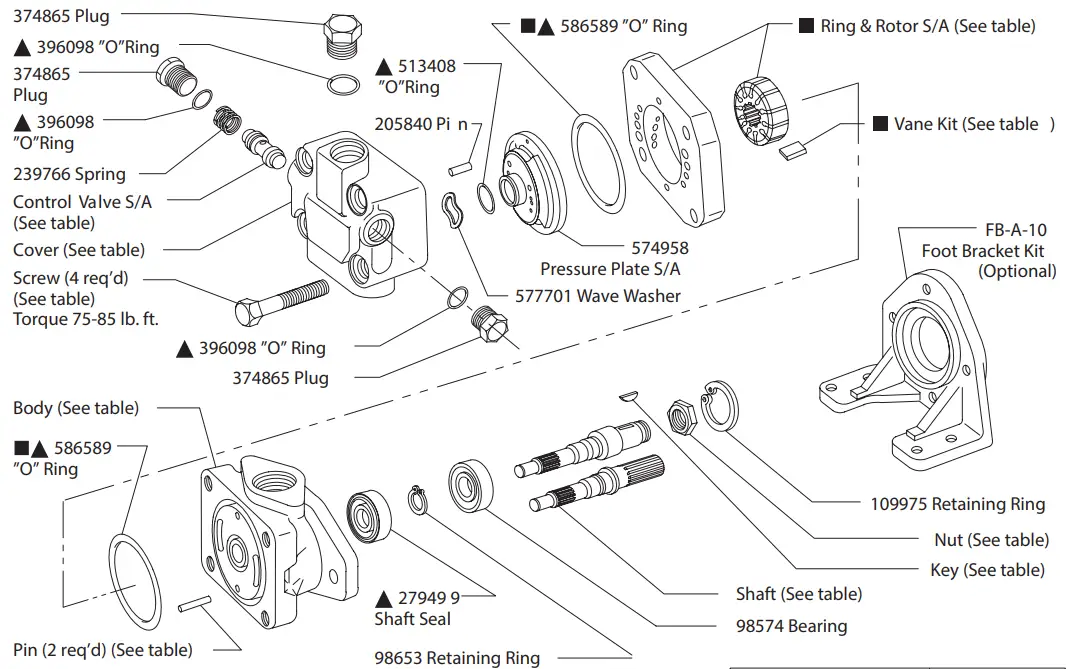

V20NF-T–22

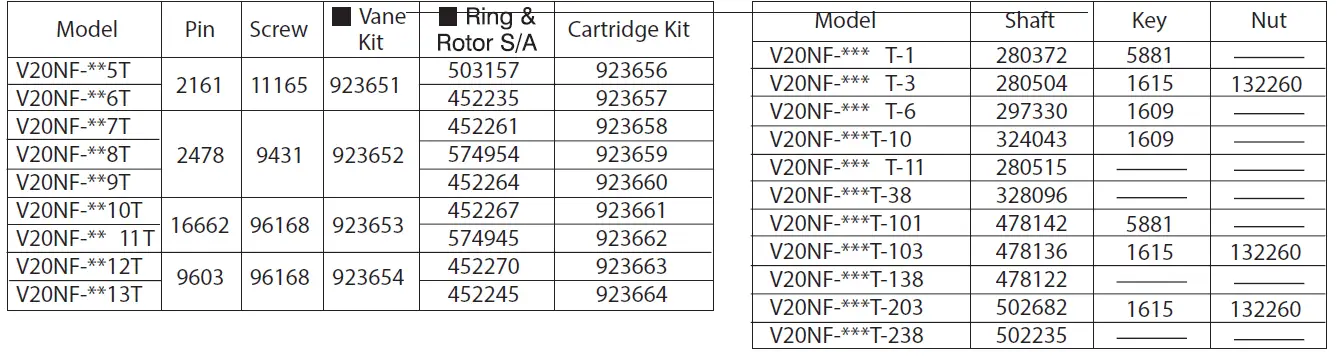

• Included in Seal Kit 920371
• Included in Cartridge Kit

Model Code

Model Series

• V20NF – Vane pump, 20 size with flow control valve cover & internal drain

Pump Mounting

• 1 – 2 Bolt
• 2 – Foot mount – body inlet port @ 12 o’clock  (viewed from shaft end)
• 3 – Power take–off
• 4 – Face
• 23 – Body inlet port @ 3 o’clock
• 26 – Body inlet port @ 6 o’clock
• 29 – Body inlet port @ 9 o’clock

Inlet Body Port

• D – 1.312-12 (SAE straight thread) F – 2 bolt flange
• P – 1.25 N.P.T.
• S – 1.625-12 (straight thread)

Ring Capacity @ 1200 RPM

• 5 -5 GPM/8 -8 GPM/11-11 GPM
• 6 -6 GPM/9 -9 GPM/12-12 GPM
• 7 -7 GPM/10 -10 GPM/13-13 GPM

Flow Control Cover

• (Pressure port – .750-16 straight thread)

Shaft Extension Type

• For 10-13 GPM units:
• 1 – Straight keyed (standard) 3 – Threaded
• 6 – Straight Stub
• 10 – Threaded Straight Stub 11 – Splined
• 38 – Splined
• For 7-9 GPM units:
• 101 – Straight keyed (standard) 103 – Threaded
• 138 – Splined
• For 5-6 GPM units:
• 203 – Threaded
• 238 – Splined

Outlet pressure port position (Viewed from cover end)

• A – Opposite inlet port
• B – 90 ° CCW from inlet port
• C – In line with inlet port
• D – 90 ° CW from inlet port

Flow Rate thru Orifice in Cover

• 2 – 2 GPM/7 – 7 GPM
• 3 – 3 GPM/8 – 8 GPM
• 4 – 4 GPM/9 – 9 GPM
• 5 – 5 GPM/10 – 10 GPM
• 6 – 6 GPM

Control Valve Pressure Setting

• C – 750 PSI/H -2000 PSI
• D – 1000 PSI/J -2250 PSI
• E – 1250 PSI/K -2500 PSI
• F – 1500 PSI/L -2750 PSI
• G- 1750 PSI

Design

Special Suffix Feature

• (Omit if not required.)

Left Hand Rotation

• (Viewed from shaft end)
• (Omit for right hand rotation.)

For satisfactory service life of these components, use full flow filtration to provide fluid which meets ISO cleanliness code 18/15 or cleaner. Selections from Danfoss OFP,OFR and OFRS filter series are recommended.
