Danfoss 45v Vane Type Single Pump Owner's Manual

Service and Parts Manual
Danfoss® Vane Pumps
Vane Type Single Pump
45V(M)-**-A(M)(F)-**-22-*
AX432878798053en-000101

45V Vane Type Single Pump

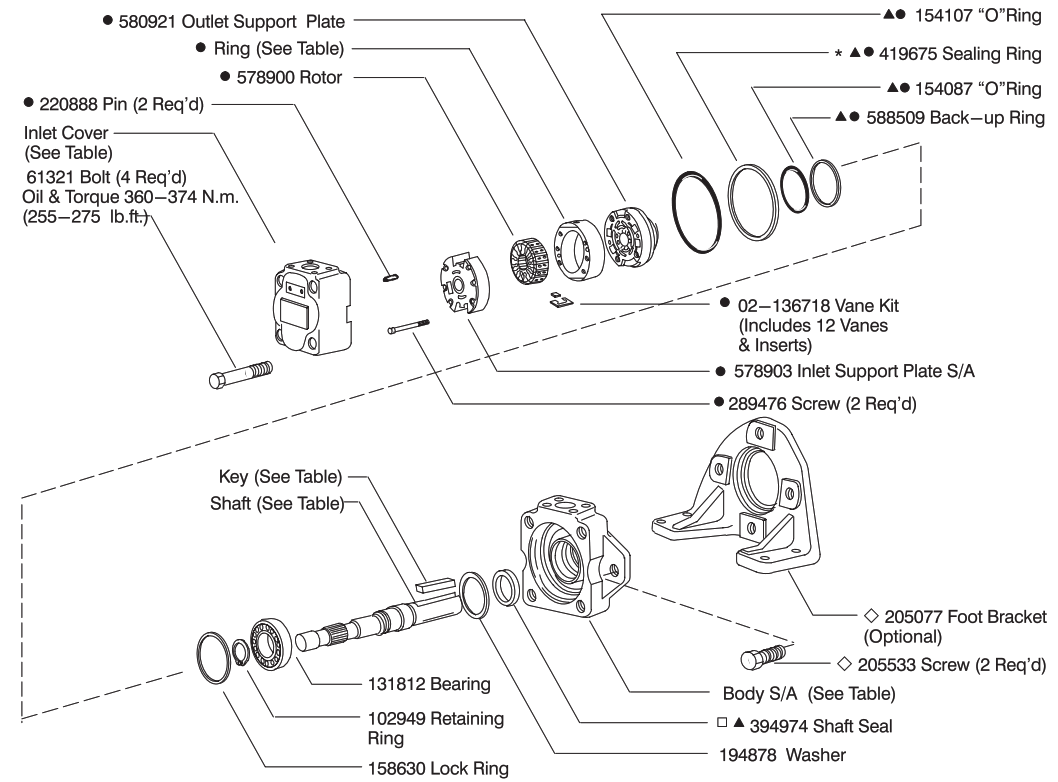

XO Assemble seal with spring loaded sealing member towards bearing. Seals to be completely wetted with oil prior to assembly.

■ Included in cartridge kit
▲ Included in seal kit 919850
F3 equivalent seal kit 919632
▢ Included in f o o t bracket kit FB—C—10
* Install 419675 sealing ring i n t o body, then install cartridge k i t .

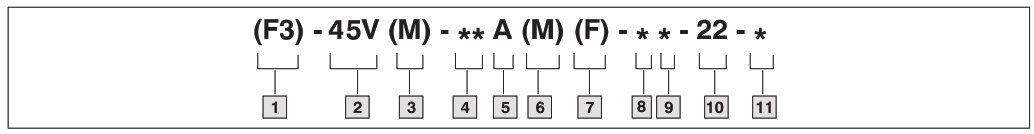

Model Code

[1] Special seals
[2] Series designation
45V — 138 to 193 cm?/r (8.41 to 11.75 in?/r)
[3] Pilot designation
M — Metric per ISO 3019/2 100A2HW
Omit — Standard pilot
[4] Geometric displacement
(Rated capacity (USgpm) at 1200 rpm, 6.9 bar (100 psi)

[5] Port connections
A — SAE 4 bolt flange
[6] Port connection modifier
M — Metric port connection ( 4 bolt flange)
Omit — Inch thread port connection ( 4 bolt flange)
[7] Mounting
F — Foot mounting
Omit — Flange mounting
[8] Shaft
1 — Straight keyed
11 — Splined
86 — Heavy duty straight keyed
192N — Straight keyed (M pilot only)
[9] Outlet positions
(Viewed from cover end of pump)
A — Opposite inlet p o r t
B — 90° CCW from inlet
C — Inline with inlet
D — 90° CW from inlet

[10] Design
[11 ] Rotation
(Viewed from shaft end of pump)
L — Left hand for counterclockwise
R — Right hand for clockwise

NOTE

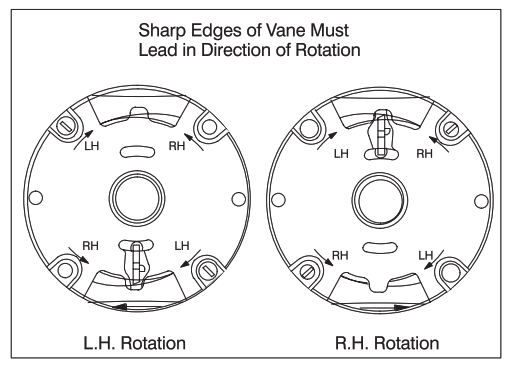

To reverse cartridge kit rotation, remove the two screws and reverse the location of the inlet support plate and outlet support plate. Re—install the two screws hand tight . Use pump cover to align all sections of the cartridge. Carefully remove the cover and tighten the screws.

NOTE
For satisfactory service life of these components in industrial applications, use full flow filtration to provide fluid which meets ISO cleanliness code 16/13 or cleaner. OFP,  OFR, and OFRS series filters are recommended.

NOTE
When ordering spare cartridge parts, it is recommended they be obtained in cartridge kits . Kits are assembled and tested by Danfoss for either right or left hand rotation. If  left hand rotation is required, it should be specified on parts order by adding suffix “L’ to cartridge kit number.
