Startech Sv565fxhd4ku 4k Hdmi Kvm Console Extender Over Fiber Sfp+ Modules User Guide

SV565FXHD4KU 4K HDMI KVM Console Extender Over Fiber SFP+ Modules
User Guide

Product Diagram (SV565FXHD4KU)

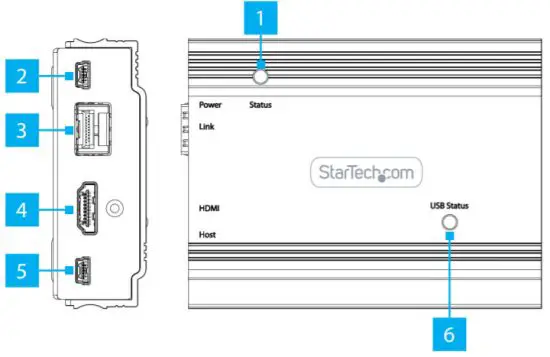

Transmitter

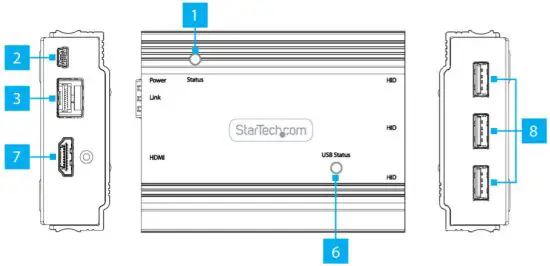

Receiver

Information & Requirements
For the latest requirements and full manual, please visit www.startech.com/SV565FXHD4KU

• Computer
• USB Compatible
• HDMI Output
• USB Keyboard and Mouse
• HDMI Display Device
• Duplex LC Fiber Cable (OM3)
• Multi-Mode extends up to 300M

Package Contents

• Transmitter for Host Computer x 1
• Receiver for Remote Console x 1
• 10G Multimode 10G SFP+ Module (Pre-Installed) x 2
• Universal Power Adapter x 2
• USB-A to Mini USB-B Cables x 3
• Quick-Start Guide x 1

Installation

1. Power OFF all the Devices (e.g. HDMI Video Source, Computer, etc.) that will be connected to the Transmitter and Receiver.
2. Connect the Host Device and all of the USB Peripherals to the Transmitter and Receiver.
3. Connect an HDMI Display Device to the Video Output Port on the Receiver, using an HDMI Cable.
4. Connect a Computer or KVM Switch to the Video Input Port on the Transmitter, using an HDMI Cable.
5. Connect the Transmitter to the Receiver, using a Duplex Multi-Mode LC Fiber Cable (OM3).
6. Connect the Transmitter and Receiver to Power Sources, using the Universal Power Adapters.
7. Power ON all the Devices (e.g. HDMI Video Source, Computer, etc.) connected to the Transmitter and Receiver.

Troubleshooting

If no Video Signal displays on the HDMI Enabled Display Device, follow these steps:

1. Ensure the HDMI Cable is firmly connected to both the Receiver and the HDMI Display Device.
2. Set the HDMI Display Device’s Input Source as HDMI.
3. Check the PC BIOS configuration for the Video Output Settings.
4. Connect the Host Computer directly to the HDMI Display Device to check for a Video Signal.

Operation

LED Indicator Table

Regulatory Compliance

FCC – Part 15
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by StarTech.com could void the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (B)/NMB-3(B)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

Warranty Information

This product is backed by a two-year warranty.
For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If  such laws apply, the limitations or exclusions contained in this statement may not apply to you.

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
