Wall luminaire for indoor use
50608.1 Wall luminaire For Indoor Use
Instructions for use
Application
Wall luminaire · indoor luminaire made of handblown opal glass, satin matt and metal housing.
For all lighting tasks in interior applications.
Luminaire with a high protection class.
Product description
Die-cast aluminium and aluminium housing, finish Colour white
Hand-blown opal glass, satin matt
Silicone gasket

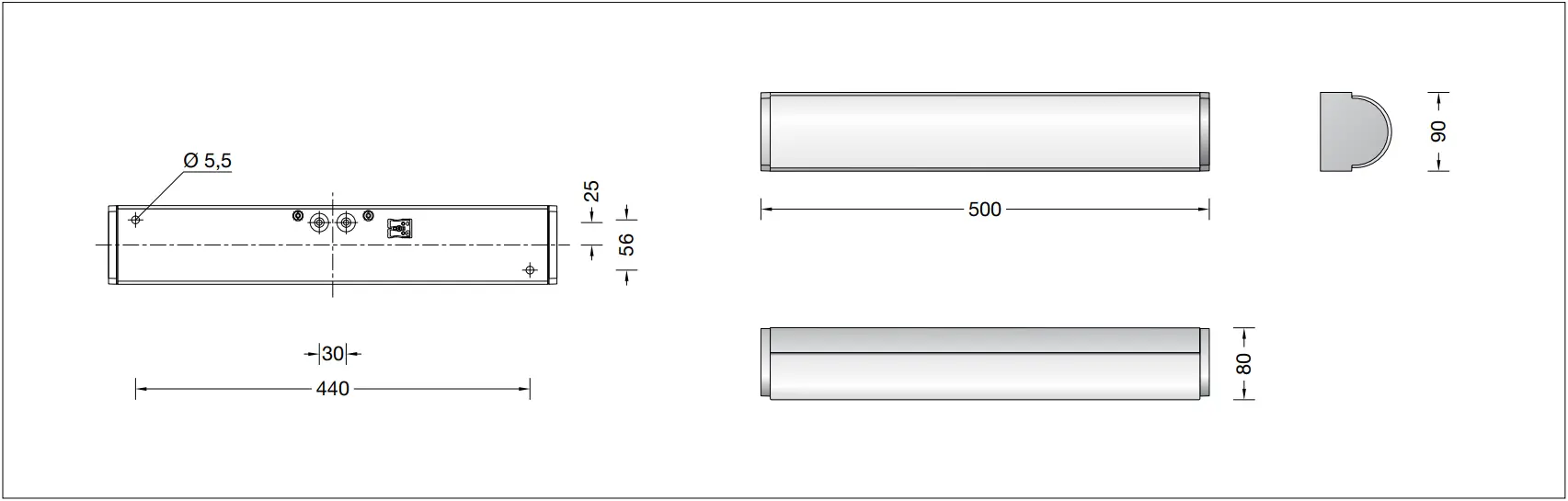

2 mounting holes ø 5.5 mm
Distance apart 440 x 56 mm
2 cable entries for through-wiring for mains cable up to ø 10.5 mm max. 3 × 1.5◻
Connection terminal 2.5◻
Earth conductor connection
LED power supply unit
220-240 V ≂ 0/50-60 Hz
DC 176-276 V
Safety class I
Protection class IP 44
Protected against granular foreign bodies ≥ 1 mm and splash water
Impact strength IK03
Protection against mechanical impacts < 0.35 joule
– Safety mark
– Conformity mark
Weight: 2.2 kg
This product contains light sources of energy efficiency classes D
Safety
The installation and operation of this luminaire are subject to national safety regulations. Installation and commissioning may only be carried out by a qualified electrician.
The manufacturer accepts no liability for damage caused by improper use or installation. If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.
Overvoltage protection
The electronic components installed in the luminaire are protected against overvoltage in accordance with DIN EN 61547.
To achieve an additional protection against e. g. transients, etc. we recommend separate overvoltage protection components.
You can find them on our website at www.bega.com.
Lamp
| Module connected wattage | 12.4 W |
| Luminaire connected wattage | 14.6 W |
| Rated temperature | ta = 25 °C |
| Ambient temperature | ta max = 50 °C |
50 608.1 K27
| Module designation | 4x LED-0546/927 |
| Colour temperature | 2700 K |
| Colour rendering index | CRI > 90 |
| Module luminous flux | 1820 lm |
| Luminaire luminous flux | 1282 lm |
| Luminaire luminous efficiency | 87,8 lm / W |
50 608.1 K3
| Module designation | 4x LED-0546/930 |
| Colour temperature | 3000 K |
| Colour rendering index | CRI > 90 |
| Module luminous flux | 1880 lm |
| Luminaire luminous flux | 1325 lm |
| Luminaire luminous efficiency | 90,8 lm / W |
Installation
LED are high-quality electronic components!
Please avoid touching the light output opening of the LED directly during installation or relamping.
Loosen screw of the lateral cover and take off the glass from the luminaire housing.
Lead mains supply cable through the cable entry into the luminaire housing.
Fix the luminaire housing with enclosed or any other suitable fixing material onto the mounting surface.
It is imperative to use the enclosed gaskets.
Make earth conductor connection.
Push silicone sleeves over the lines and make electrical connection.
Position glass into the base plate and fix it with the screw and the cover.
Cleaning · Maintenance
Clean luminaire regularly with solvent-free cleansers from dirt.
Replacement of the LED module
The designation of the LED module is noted on a label in the luminaire.
The light colour and light output of BEGA replacement modules correspond to those of the modules originally fitted. The module can be replaced by qualified persons using standard tools.
Disconnect the system and open the luminaire.
Please follow the installation instructions for the LED module.
Inspect and, if necessary, replace the luminaire gaskets.
Defective glass must be replaced.
Close the luminaire.
Spares
| Spare glass | 11 002 799 .0R G |
| LED power supply unit | DEV-0194/370 |
| LED module 2700 K | LED-0546/927 |
| LED module 3000 K | LED-0546/930 |
| Gasket Glas | 81 000 277 .2 |
| Gasket Gehäusedeckel | 83 001 249 |
