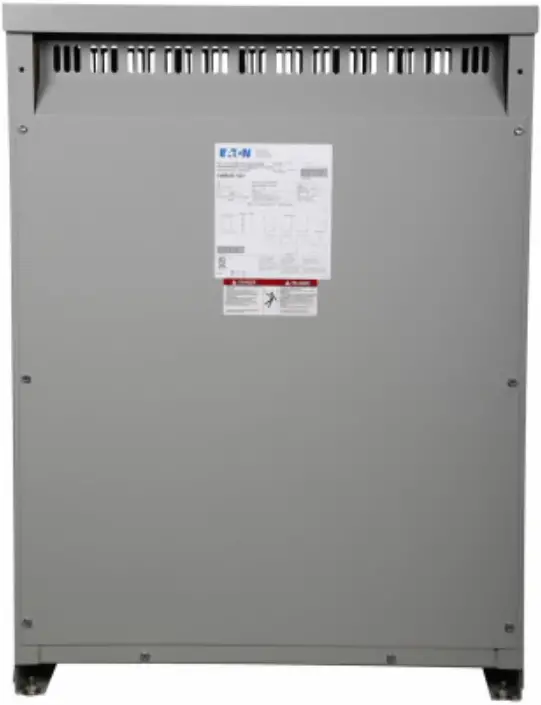

EATON V48M47F45CUEELS42 General Purpose Ventilated
General specifications
Eaton General purpose ventilated transformer, DT-3 (3-phase), PV 480V, Taps: 2 at +2.5% /4 at -2.5%, SV 480Y/277V, 115°C rise, 45 kVA, Copper windings, EE, LS42
- Product Name
Eaton General purpose ventilated transformer - Product Length/Depth
16.5 in - Catalog Number
V48M47F45CUEELS42 - UPC
786680069307 - Product Width
23 in - Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Physical Attributes
- Coil material
Copper - Frame
912B - Tap size
2 at +2.5% FCAN, 4 at -2.5% FCBN - Type
Dry Type Distribution Transformer
Performance Ratings
- Frequency rating 60 Hz
- Primary voltage 480 V
- Secondary Voltage 480 Y/277 V
- Temperature rise 115 °C rise
- Volt ampere rating 45 kVA
Miscellaneous
- Modification 1 Low sound 42 dB
- Weathershield WS38
Resources
- Catalogs
Eaton’s Volume 2—Commercial Distribution - Specifications and datasheets
Eaton Specification Sheet – V48M47F45CUEELS42 - Warranty guides
Selling Policy 25-000 – Distribution and Control Products and Services
