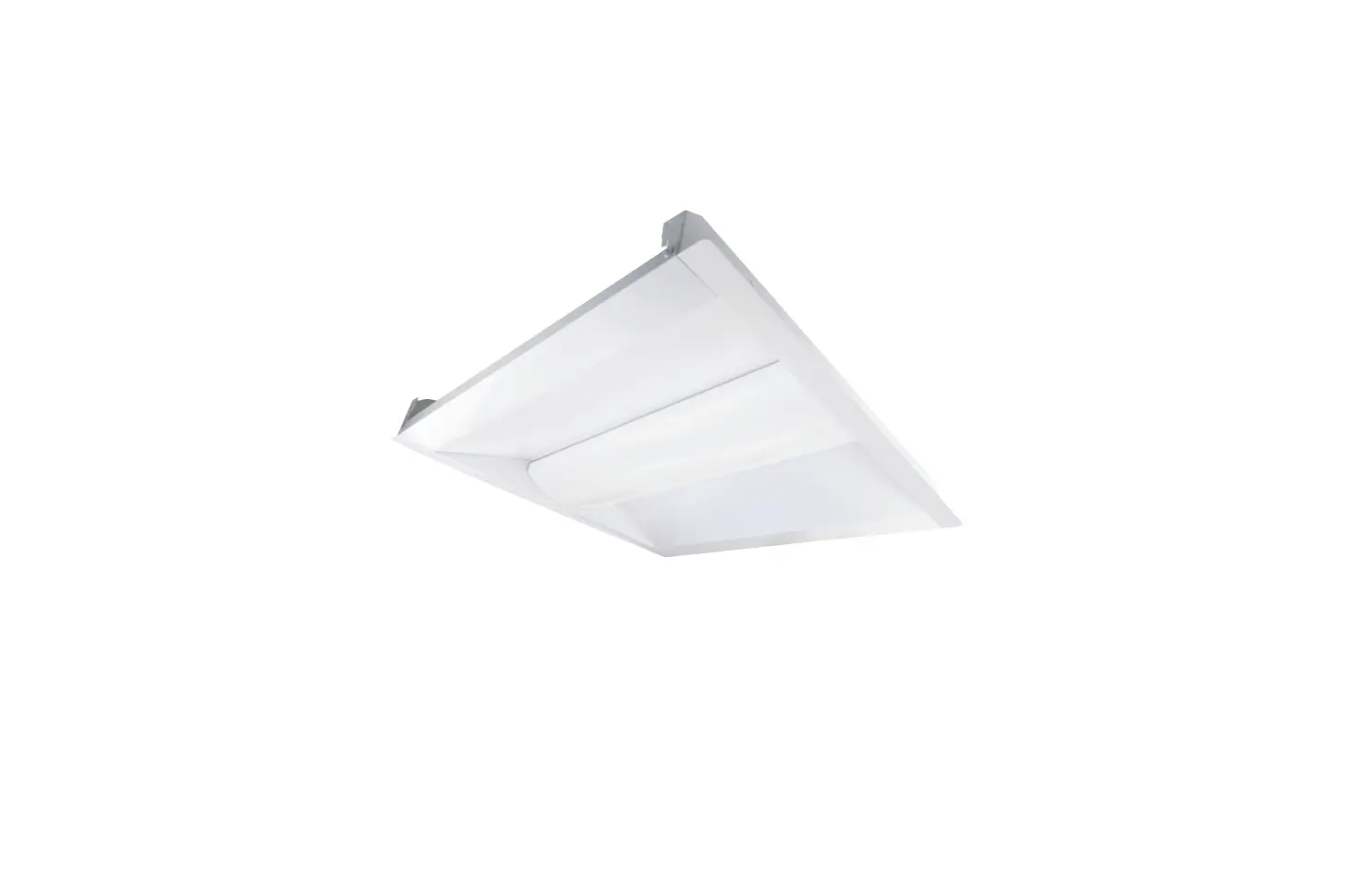

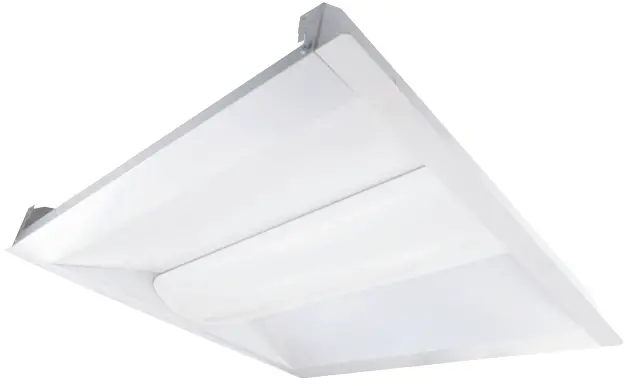

greencreative 25W2x2 TROFFER TITANIUM LED User Manual
- Exceptional efficacy 144 LPW
- High performance lighting distribution and low glare lens
- 120-277V circuit and 0-10V dimming control compatible
- Modern look and high quality architectural finish
- Easy installation for new construction or retrofit
- Extra long 100,000 hour lifetime
- Type IC (Suitable for Insulation Contact)
EFFICIENCY AT WORK
INSTALLATION GUIDE
TROFFER INSTALLATION
Step 1. Make sure the POWER IS TURNED OFF at the source to the location at which you are installing the product.
Step 2. Remove existing troffer if applicable.
Step 3. Pull L tabs out on each corner. (fig. 1)
Step 4. Place troffer in ceiling making sure each L tab is securely hooked on T-bar grid. (fig. 1 & fig. 2)
Step 5. Remove power conduit plate. Insert power supply into power conduit plate using appropriate electrical fittings. (fig. 3)
Step 6. Return power back to the source and installation is complete. (fig. 4)
SPECIFICATIONS
| Product Model | OF22DIM/830/277V | 28330 25TROF22DIM/835/277V | 28331 25TROF22DIM/840/277V |
| Type | 2×2′ Troffer | 2×2′ Troffer | 2×2′ Troffer |
| Power (W) | 25 | 25 | 25 |
| Voltage – Frequency | 120-277V 50-60Hz | 120-277V 50-60Hz | 120-277V 50-60Hz |
| Color Temp. (ANSI) | Warm White 3000K | Neutral White 3500K | Cool White 4000K |
| CRI (Ra) | 82 | 82 | 82 |
| Typical lumens (lm) | 3500 | 3500 | 3600 |
| Efficacy (LPW) | 140 | 140 | 144 |
| Beam Angle | 120° | 120° | 120° |
| Dimmable | Yes | Yes | Yes |
| Power Factor | 0.9 | 0.9 | 0.9 |
| THD | <20% | <20% | <20% |
| Rated Lifetime – L70 (hrs | 100,000 | 100,000 | 100,000 |
| Rated Lifetime – L90 (hrs.) | 44,000 | 44,000 | 44,000 |
| Dimensions (LxWxH) | 23.78″x23.78″x2.76″(604x604x70mm) | 23.78″x23.78″x2.76″(604x604x70mm) | 23.78″x23.78″x2.76″(604x604x70mm) |
| Weight (lb. / g) | 10.93lb. / 4.96kg | 10.93lb. / 4.96kg | 10.93lb. / 4.96kg |
PRODUCT ORDERING INFORMATION
| Power | CRI | CCT | Voltage | Step Dimming | Sensor | EM Backup |
| 25TROF22DIM 25W | 8 82 | 30 3000K | 277V 120-277V | (Blank) None | (Blank) None | (Blank) None |
| 35 3500K | STEPDIM Step Dimming 100/50 | OCCDIM Microwave Sensor | EM 10W EM Backup | |||
| 40 4000K |
Ex. 25TROF22DIM/840/277V/OCCDIM/EM
ACCESSORY ORDERING INFORMATION
| Model | Product | Description |
| SENSORRC | 97881 | Remote Control for OCCDIM |
